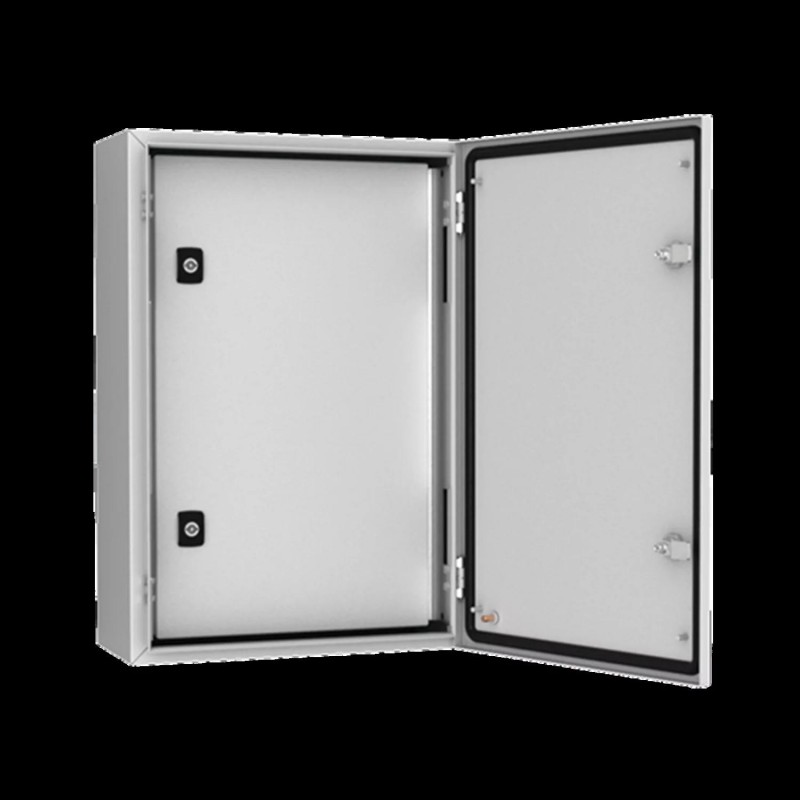

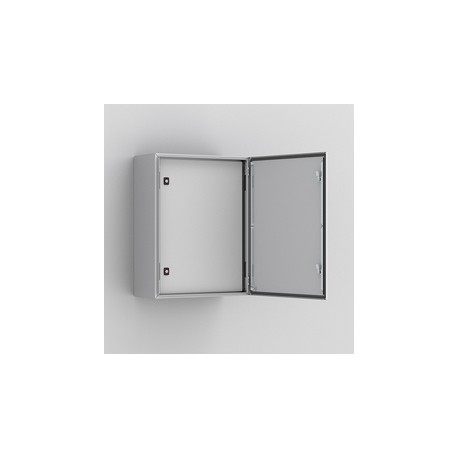

ADI10080R5 ELDON Inner door, 1000x800 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

ADI10080R5 ELDON Inner door, 1000x800

ADI10080R5

ADI10080R5

ELDON

Available

Ship on today

Inner door, 1000x800

More details


Control Cabinets Switch Boxes Distribution Enclosures

Floor Standing Enclosures - ELDON

Floor Standing Enclosures accessories - ELDON

* Brand new produt in its original packing covered by the warranties and certifications provided by ELDON

QuantityPrice
1+$119.74
2+$116.44
4+$113.75
5+$113.00
7+$112.36
*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



Aesthetic finish and safety.

Characteristics
Height1000 mm
Width800 mm
Mounting Plate
Height
945 mm
Mounting Plate
Width
692 mm
No Locks2

Description:

For controls, meters, lamps, etc. Hinges can be mounted to allow left or right hand opening. Lock double-bit 3 mm insert; 700 mm high doors and above have 2 locks. Usable depth between inner and external door: 35 mm. Adjustable depth position with AMG accessory. Workable area: H-55, W- 108. 19" version available on request. Machining is required for stainless steel enclosures.

Material:

Door 1.5 mm mild steel, vertical top and bottom profiles 2 mm mild steel.

Finish:

RAL 7035 structured powder coating.

Protection:

IP 2X.

Pack quantity:

Inner door, two vertical profiles, top and bottom profiles and mounting accessories.

Datasheet - PDF

Title:Language:Size:Type:
Datasheet 1: ADI10080R5English182 KbytesDatasheet 1: ADI10080R5
Complete catalogue 1: ADI10080R5English4 MbytesDatasheet 1: ADI10080R5
