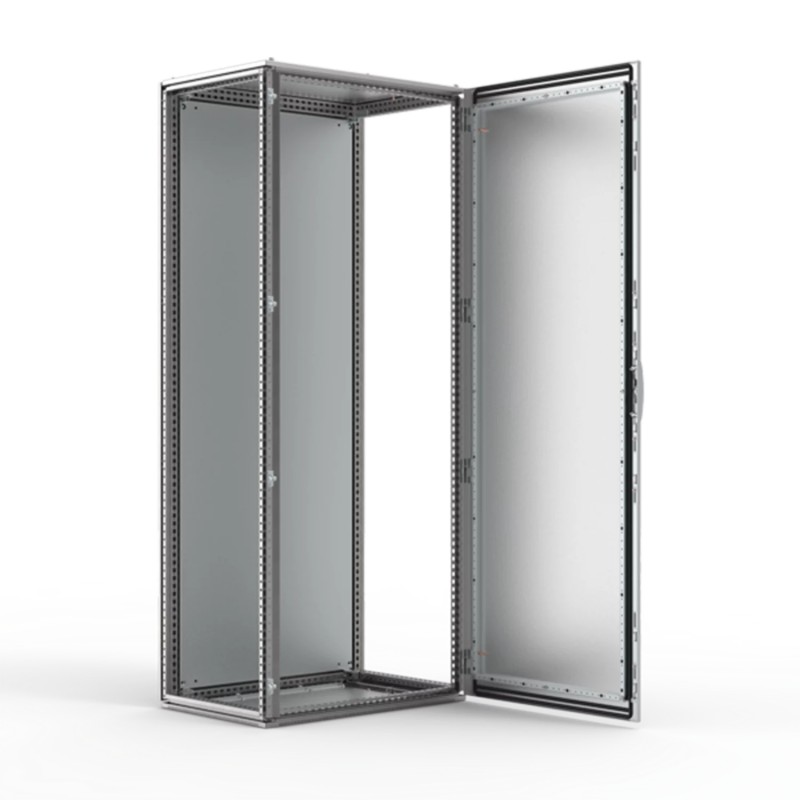

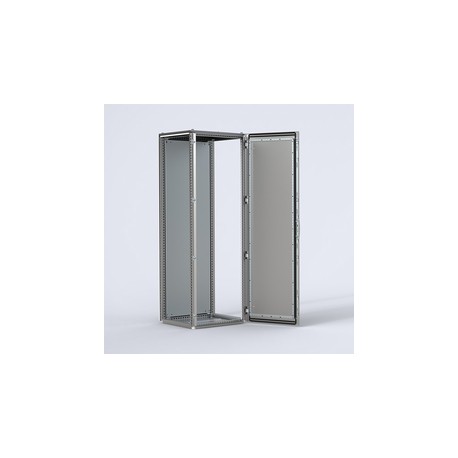

MCSS18105 ELDON Floor standing, 1800x1000x500 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MCSS18105 ELDON Floor standing, 1800x1000x500

MCSS18105

MCSS18105

ELDON

Available

Ship on today

Floor standing, 1800x1000x500

More details


Control Cabinets Switch Boxes Distribution Enclosures

Floor Standing Enclosures - ELDON

Stainless Steel, combinable version, single door. MCSS - ELDON

* Brand new produt in its original packing covered by the warranties and certifications provided by ELDON

*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



The stainless steel single door floor standing enclosures sets new standards when it comes to strength and ease of use. The sturdy construction of the Eldon MCSS range, with its 1,5 mm thick stainless steel profile frame and 25 mm hole pattern in all directions, provides high corrosion resistance and rigidity. Intended for harsh environments, can be used as a stand alone system or suited together by the use of baying brackets.

Characteristics
Height1800 mm
Width1000 mm
Depth500 mm
Mounting Plate
Height
1694 mm
Mounting Plate
Width
894 mm
Weight139 Kg
Part No. AISI 304MCSS18105
Part No. AISI 316LMCSS18105-316*

Material:

AISI 304 pre-grained stainless steel / AISI 316L. Frame: 1.5 mm. Door: 2 mm. Rear, roof and side panels: 1.5 mm. Bottom plates: 1.5 mm stainless steel. Mounting plate: 3 mm galvanized steel.

Frame:

Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660.

Door:

Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.

Rear panel:

Fitted by M6 torx screws. Standard facilities for rear door mounting.

Side panels:

Supplied as an accessory.

Roof panel:

Removable.

Lock:

Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit 3 mm insert. Can be exchanged for standard inserts or Euro-cylinder and swing handle.

Bottom plates:

One piece bottom plate with injected polyurethane gasket to ensure maximum sealing.

Mounting plate:

Double folded and slides into position. Adjustable in depth by steps of 25 mm with the MPD02 accessory. Mounting plate is delivered attached on the outside of the enclosure packaging.

Earthing:

All panels are earthed through their fittings and are equipped with a separate earthing stud.

Finish:

240s pre-grained stainless steel (0,5 microns average).

Protection:

Corresponds with IP 56 | TYPE 4X, 12, 13 | IK 10.

Mounting requirement:

Standard delivery ready for combined installation. For stand-alone installation add side panels.

Delivery:

Frame with fitted door, rear panel, roof panel, bottom plate, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow suiting without removal. All packing material is recyclable.

Datasheet - PDF

Title:Language:Size:Type:
Datasheet 1: MCSS18105English621 KbytesDatasheet 1: MCSS18105
Complete catalogue 1: MCSS18105English9 MbytesDatasheet 1: MCSS18105
