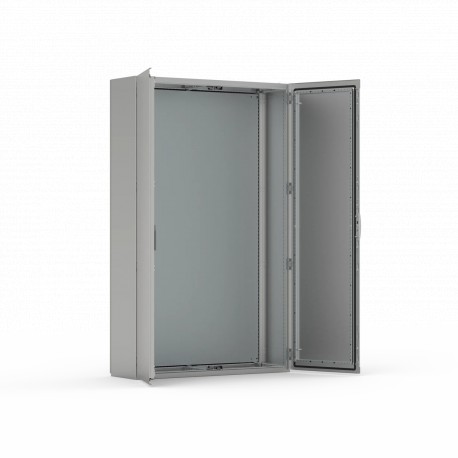

EKDS20124 ELDON Floor standing, 2000x1200x400 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EKDS20124 ELDON Floor standing, 2000x1200x400



Available Ship on today

Floor standing, 2000x1200x400

More details

Control Cabinets Switch Boxes Distribution Enclosures

Floor Standing Enclosures - ELDON

Stainless steel, compact enclosure, double door. EKDS - ELDON

* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

*This price is per unit and is the net value (not including taxes if applicable).

Related products

More info

As the double door version to EKSS, the EKDS offers the same improved design, strength and corrosion resistance. The sturdy construction, with the 25 mm hole pattern, one piece body and removable rear panel, ensures superior rigidity and easy access. Fully compatible with floor standing range of accessories, the EKDS range is the ideal solution for food and chemical industries, outdoor applications and marine environments.

Height2000 mm
Width1200 mm
Depth400 mm
Mounting Plate
1894 mm
Mounting Plate
1094 mm
Weight166,8 Kg
Part No. AISI 304EKDS20124
Part No. AISI 316LEKDS20124-316*


AISI 304 pre-grained stainless steel / AISI 316L. Body and removable rear panel: 1.5 mm. Door: 2 mm. Bottom Plates: 1.5 mm. Mounting plate: 3 mm.


One piece enclosure body. Integrated depth profiles with hole pattern allowing mounting plate adjustable in depth.


Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed.

Rear panel:

Fitted by M6 torx screws. Standard facilities for rear door mounting. Split rear panels in 1600 mm wide enclosures.


External espagnolette 4-point locking system. Standard fitted double-bit 3 mm insert. It can be exchanged for standard range of inserts, Euro-cylinder and swing handle.

Bottom plates:

One piece bottom plates with injected polyurethane gasket to ensure maximum sealing.


Door is equipped with separate welded earthing studs and earthing to the frame can be accomplished by using the ECF.

Mounting plate:

Double folded and slides into position. Adjustable in depth by steps of 25 mm. Mounting plate is delivered attached on the outside of the enclosure packaging. Fitted inside for 1600 mm wide enclosures. For 1600 mm wide, filler plate is included.


240s pre-grained stainless steel (0.5 microns average).


Double door version, complies with IP 55 | TYPE 12, 13 | IK 10. Individual doors with welded vertical divider, complies with IP 66 | TYPE 4X, 12 and 13 | IK 10.


One piece body with fitted door and rear panel, bottom plates and mounting plate, including door earthing studs. Delivered on a pallet which is identical to the width of the enclosure to allow suiting without removal. Mounting plate is attached to the outside of the enclosure packaging. All the packing material is recyclable.

Datasheet - PDF

Title: Language: Size: Type:
Datasheet 1: EKDS20124 English 731 Kbytes Datasheet 1: EKDS20124
Complete catalogue 1: EKDS20124 English 9 Mbytes Datasheet 1: EKDS20124
