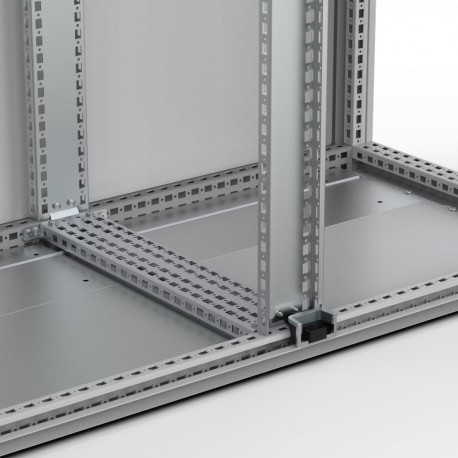

VBD800 nVent HOFFMAN Depth dividing bar, 800 VBD800
VBD800
ELDON
2
Depth dividing bar, 800 VBD800
Bar div. deep., 800. Pack of 2 units.
The dividing depth bar increases the mounting possibilities available within the enclosure and divides it into two useable spaces.
Cabinet enclosures > Profile (switchgear cabinet)
Steel Floor Standing Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
More info
▲Technical data
Description: | Fitted in the centre of a 1200 mm or 1600 mm wide enclosure (top and bottom), to provide standard mounting facilities in two sections of 600 mm or 800 mm wide. This enables separate fitting of accessories such as CAB(P), CBU, CLPK, CLPF etc., in either side of the enclosure. Accessories are adjustable in depth within the 25 mm hole pattern. |
Material: | 1.75 mm zinc plated steel. |
Pack quantity: | 1 pair without mounting accessories. |
Mounting requirements: | Add VBK for mounting. Add VB for complete mounting facilities in the division. |
Features
Feature: | Zinc plated steel depth dividing bar for floor standing enclosures |
Advantage: | The dividing bar replicates the enclosure's frame vertically both in the front and rear. This will increase the mounting possibilities available. |
Benefit: | The bar divides the enclosure into two internally useable spaces, where more accessories can be mounted, providing a cost effective solution . |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| VBD800 VBD800 EN_VBD400.pdf | 201 Kbytes |
 |
| Download general catalog |
|
