VBD800
ELDON
2
Verfügbar Schiff am heute

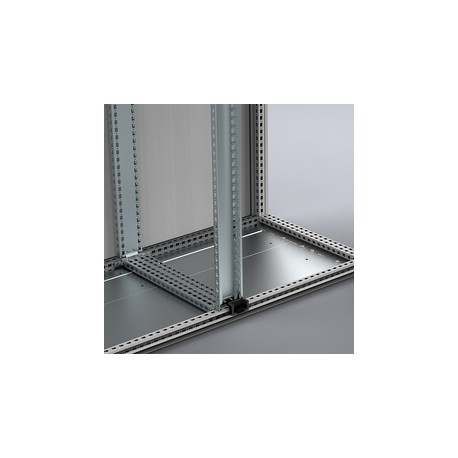

Tiefentrennsteg, 800 VBD800
Bar div. Tiefe., 800. Packung mit 2 Einheiten.

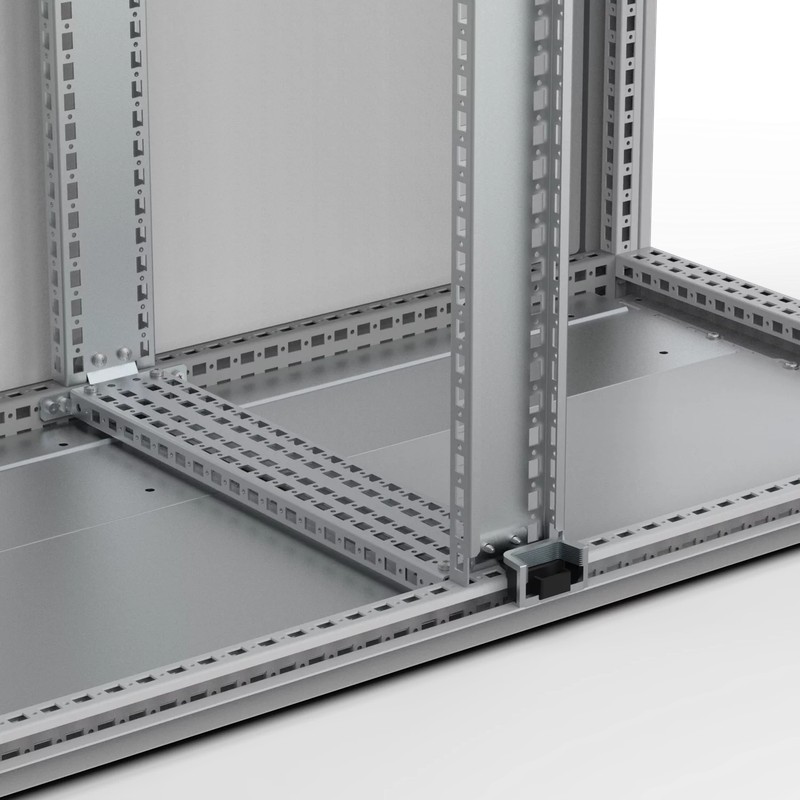

The dividing depth bar increases the mounting possibilities available within the enclosure and divides it into two useable spaces.
Schaltschranksysteme > Profil (Schaltschrank)
Schaltschränke Stahlblech
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von ELDON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Beschreibung: | Fitted in the centre of a 1200 mm or 1600 mm wide enclosure (top and bottom), to provide standard mounting facilities in two sections of 600 mm or 800 mm wide. This enables separate fitting of accessories such as CAB(P), CBU, CLPK, CLPF etc., in either side of the enclosure. Accessories are adjustable in depth within the 25 mm hole pattern. |
Material: | 1.75 mm zinc plated steel. |
Verpackungseinheit: | 1 pair without mounting accessories. |
Montagemöglichkeiten: | Add VBK for mounting. Add VB for complete mounting facilities in the division. |
Feature: | Zinc plated steel depth dividing bar for floor standing enclosures |
Advantage: | The dividing bar replicates the enclosure's frame vertically both in the front and rear. This will increase the mounting possibilities available. |
Benefit: | The bar divides the enclosure into two internally useable spaces, where more accessories can be mounted, providing a cost effective solution . |
Titel: | Größe: | Typ: |
---|---|---|
VBD800 VBD800 DE_VBD400.pdf | 201 Kbytes | |
