WISKAESMKV 50 10062876 WISKA Metal hexagonal cable glands, IP54, range from 31 to 42mm, thread M50
WISKA ESMKV 50 10062876 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

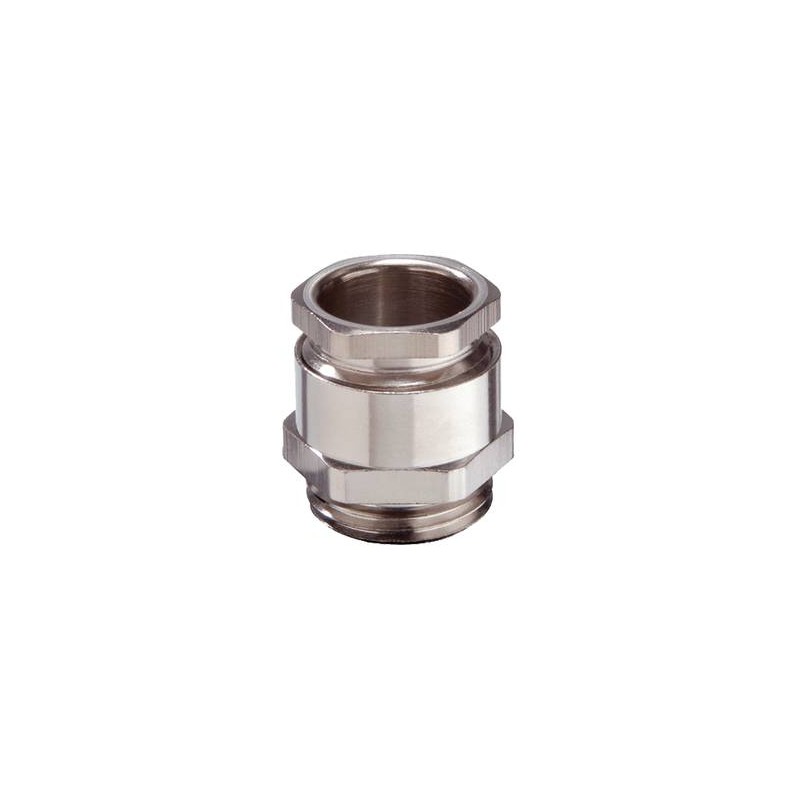

ESMKV 50 10062876 WISKA Metal hexagonal cable glands, IP54, range from 31 to 42mm, thread M50

Reference: ESMKV 50

Code: 10062876

Manufacturer: WISKA

Description:

Metal hexagonal cable glands, IP54, range from 31 to 42mm, thread M50
Cable gland hexagonal, brass nickel-plated, M50, with short thread

Categories:

  • WISKA

Brand new product in its original packaging covered by the warranties and certifications provided by WISKA

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 114,42 €

Unit Price: 22,885 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3-4 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

Logo
Material cable glandBrass nickel-plated
Material sealing gasketSoft rubber
Temp. range min-30 °C
Temp. range max80 °C
Protection classIP54
Thread typeM
Ø Connection thread D50
Lead1,5
Length screw-in thread L9 mm
Ø cable diameter min31 mm
Ø cable diameter max42 mm
Key width SW150 mm
Key width SW252 mm
Collar diameter E154 mm
Collar diameter E256 mm
Total length TL48 mm
Impact category6
SurfaceNickel-plated
Order no. nickel-plated10062876
TypeESMKV 50
Packing unit5
ETIM-ClassificationEC000441

DATASHEET - PDF

Title
Size
Type
ESMKV 50 10062876 EN_10062876.pdf
210 Kbytes
PDF CATALOGUE WISKA EN
16 Mbytes
