WISKAESKVZ-L 12/GL 10061470 WISKA PA cable glands, light grey RAL 7035 + flange clamping ,IP68, range 3 to 7mm, l..

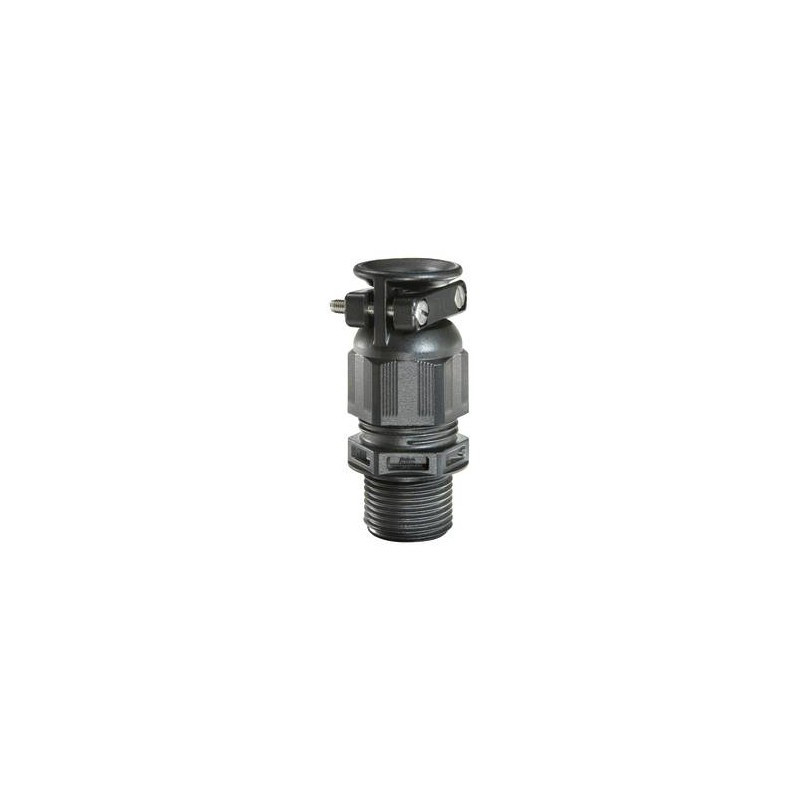

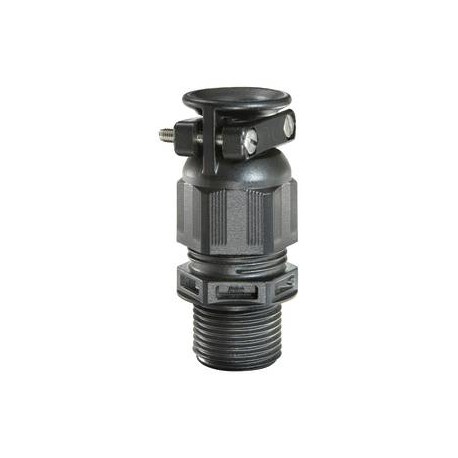

WISKA ESKVZ-L 12/GL 10061470 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ESKVZ-L 12/GL 10061470 WISKA PA cable glands, light grey RAL 7035 + flange clamping ,IP68, range 3 to 7mm, l..

Reference: ESKVZ-L 12/GL

Code: 10061470

Manufacturer: WISKA

Description:

PA cable glands, light grey RAL 7035 + flange clamping ,IP68, range 3 to 7mm, long thread M12
Cable gland long with external strain relief, polyamide, M12, RAL 9005

Categories:

  • WISKA

Brand new product in its original packaging covered by the warranties and certifications provided by WISKA

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 394,25 €

Unit Price: 3,9425 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3-4 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

LogoLogoLogoLogo
Material cable glandPolyamide
Material sealing gasketEPDM
Protection classIP69, IP68 (5 bar 30 min)
Temp. range min-40 °C
Temp. range max100 °C
Glow wire test750 °C
Thread typeM
Ø Connection thread D12
Lead1,5
Length screw-in thread L15 mm
Ø cable diameter min3 mm
Ø cable diameter max7 mm
Ø cable diameter UL4,1 mm - 6 mm
Key width SW16 mm
Collar diameter (E)18 mm
Total length TL44 mm - 49 mm
Type of cable anchorageB
Install. torques fitting2 N m
Install. torques cap nut2 N m
Impact category2
Product ColorRAL 9005
TypeESKVZ-L 12
Order no. RAL 900510061470
Packing unit100
ETIM-ClassificationEC000441

DATASHEET - PDF

Title
Size
Type
ESKVZ-L 12/GL 10061470 EN_10061470.pdf
383 Kbytes
PDF CATALOGUE WISKA EN
16 Mbytes
