WISKAEBFS-12-20/G 10106848 WISKA IP68 grey PA fitting for DN12/16 tube, M20 thread

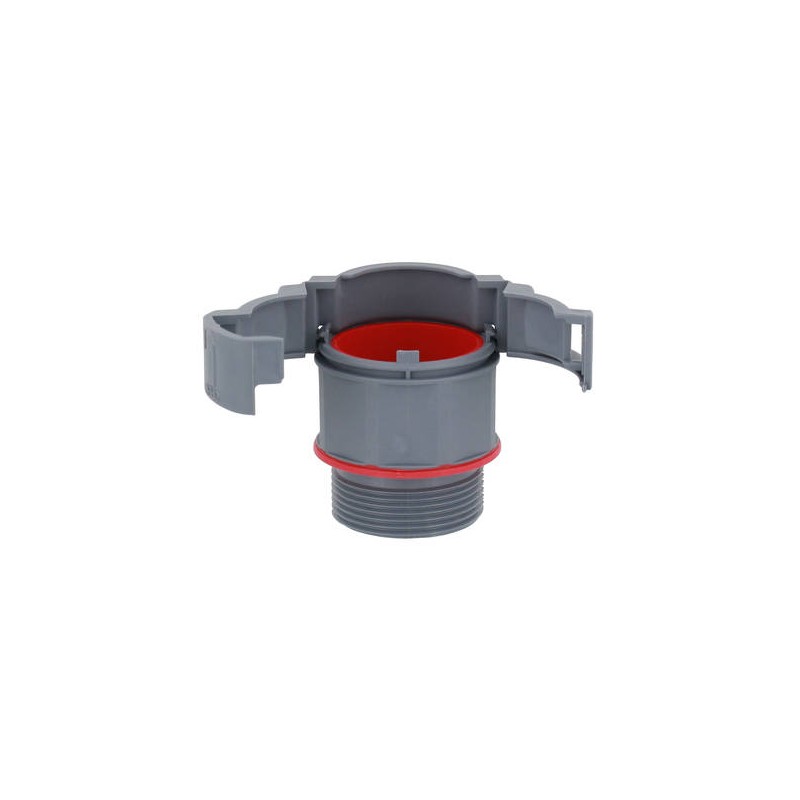

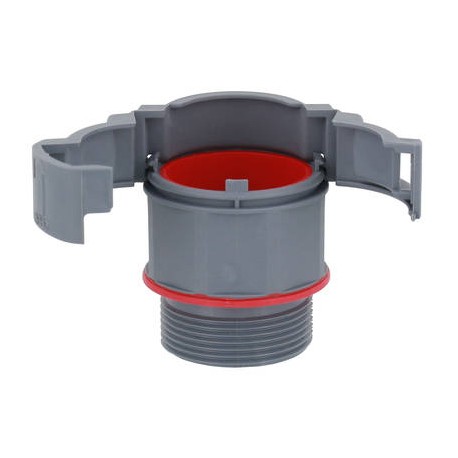

WISKA EBFS-12-20/G 10106848 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

EBFS-12-20/G 10106848 WISKA IP68 grey PA fitting for DN12/16 tube, M20 thread

Reference: EBFS-12-20/G

Code: 10106848

Manufacturer: WISKA

Description:

IP68 grey PA fitting for DN12/16 tube, M20 thread
Conduit fitting, straight, non-metallic, RAL 7031, NW 12 / M20

Categories:

  • WISKA

Brand new product in its original packaging covered by the warranties and certifications provided by WISKA

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 97,19 €

Unit Price: 1,9437 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

LogoLogoLogoLogoLogoLogo
Material Conduit fittingpolyamide UL94-V0
Material Connection threadpolyamide UL94-V0
Material sealing gasketTPU
Protection classIP66, IP68
Temp. range min-40 °C
Temp. range max100 °C
Operational areasEN 45545 - Railway
NW12
Thread typeM
Ø Connection thread D20
Lead1,5
Length screw-in thread L12 mm
Ø closure VD27,5 mm
Ø inside12 mm
Key width SW22 mm
Total length TL39,2 mm
Type of conduit fittingstraight
UL 1696Yes
Product ColorRAL 7031
TypeEBFS-12-20-BG
Order no. RAL 703110106848
Packing unit50
ETIM-ClassificationEC001176

DATASHEET - PDF

Title
Size
Type
EBFS-12-20/G 10106848 EN_10106848.pdf
280 Kbytes
PDF CATALOGUE WISKA EN
16 Mbytes
