TEGUIVIDEO DOOR KITS379515 TEGUI TG/2H-KIT V1 C100V16E+SFERA HQ

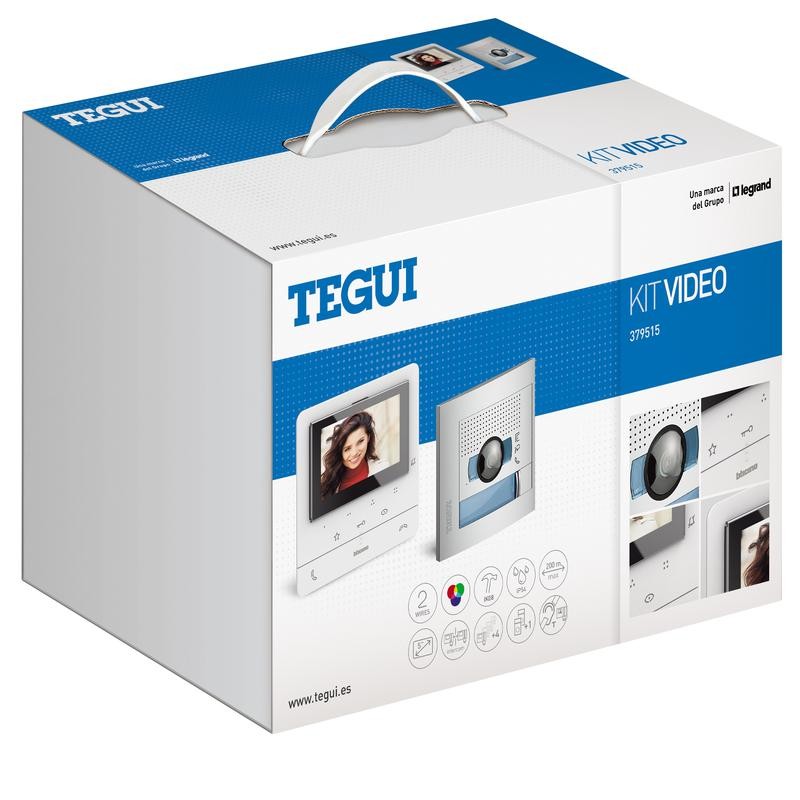

TEGUI 379515 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

379515 TEGUI TG/2H-KIT V1 C100V16E+SFERA HQ

Code: 379515

Manufacturer: TEGUI

Description:

TG/2H-KIT V1 C100V16E+SFERA HQ
Video kit 1 housing 2 wires, SFERA NEW board with HQ color camera and advanced Classe 100 hands-free monitor
Video kit 1 housing 2 wires, SFERA NEW HQ board and advanced Classe 100 monitor

Categories:

  • Communication technique > Door station set
  • TEGUI > VIDEO DOOR KITS

Brand new product in its original packaging covered by the warranties and certifications provided by TEGUI

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 533,78 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Single-family hands-free kit with Classe 100V16E monitor and SFERA NEW modular pushbutton outer plate with aluminum front, with 5 MPx wide-angle HQ color camera with digital filters and white LEDs for shooting field illumination. White LED light for labels. The monitor has a 5" LCD screen and teleloop function (to allow use by hearing aid wearers equipped with a T-selector). It has 2 physical buttons to control the main functions – response and completion of communication – it is equipped with 3 touch buttons to control the main functions – opening the lock, activating the stair lights and activating the outer plate/cyclic display of the cameras – plus 4 configurable touch buttons – e.g. intercom, Activation of the additional lock. The device has a side wheel to regulate: the color, brightness and contrast of the screen, the volume of the audio and the volume of the ringtone. It has an LED to indicate the status of the call. Installation can be done on the surface with the corresponding metal stand (supplied) or tabletop thanks to the tabletop stands (2x344692) – sold separately. The device, which also has a professional studio function, must be configured.
With videoYes
Number of indoor stations1
Number of outdoor stations1
Number of Ring/Ring Buttons2
Installation technologyBus System
Installation type indoor unitSurface mounted (plaster)
Indoor Station ColorWhite
Installation type outdoor unitSurface mounted (plaster)
Outdoor Unit Materialaluminium
Outdoor Station ColorGrey
Imaging SystemPAL
Imaging System OwnershipColour
Hearing SafetyNo
Allows connection with the smartphoneNo
Internal communicationYes
Hands-freeYes
With day/night functionYes
Camera aperture angle151 °
PTZ function (pan/tilt/zoom)No
With memory functionNo
Screen size127 mm
Screen size in inches5 inch
Manual adjustment cameraYes
Label Space/Print AreaYes
Compatible with hearing aidsNo
Suitable for disabled peopleYes
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Width164 mm
Height165 mm
Depth20.5 mm
Impact resistanceIK10
Protection Class (IP)IP30
Operating Temperature5-40 °C
Storage temperature-25-70 °C
Type of voltageCC
Nominal Voltage20-27 V
Nominal current0.030-0.35 A
frequency0-0 Hz
Sound Level82 dB
Standby consumption10 mA
Halogen-freeYes
Antibacterial treatmentNo
Connection Cable TypeFlexible or rigid
Core cross-section0.1-2.5 mm²
USB portYes
Equipped with waterproof plate protectionYes
With signal lampYes
Type of mountingSurface-mounted/slot-mounted
Control ModeWired
Contains battery and/or accumulatorNo
Volume controlYes
AddressableYes
Doorman with mobile appNo
Number of Shades16
Remote opening of the electric gate/door openerYes
ResolutionOther
Adjusting the screen brightnessYes
Adjusting the Screen ContrastYes
Visitor Memorization FunctionNo
Camera TypeAdjustable
Camera viewing angle151 °
Maximum distance between hob and indoor unit600 m
Communication Classification TypeOther
Connected ObjectNo
Programming mediumConfigurator
With voice commandNo
ProgrammableYes
Connection Protocol InteroperabilityNo
Possibility of connection via Internet boxNo

ETIM for 379515 Communication systems (EC000400)

Feature nameColour outdoor station (EF001492)
Feature valueGrey
Feature nameHearing aid compatible (EF004782)
Feature valueNo
Feature nameProperty picture system (EF007736)
Feature valueColour
Feature nameNumber of call buttons (EF001472)
Feature value2
Feature nameLabel space/information surface (EF001035)
Feature valueYes
Feature nameInstallation technique (EF001474)
Feature valueBus system
Feature nameMounting method indoor station (EF012445)
Feature valueSurface mounted
Feature nameMounting method outdoor station (EF012446)
Feature valueSurface mounted
Feature nameMaterial outdoor station (EF012447)
Feature valueAluminium
Feature nameCompatible with Apple HomeKit (EF014925)
Feature valueNo
Feature nameCompatible with Amazon Alexa (EF014927)
Feature valueNo
Feature nameCompatible with Google Assistant (EF014926)
Feature valueNo
Feature nameWith video (EF001490)
Feature valueYes
Feature nameCan be connected to smartphone (EF012450)
Feature valueNo
Feature nameColour indoor station (EF000478)
Feature valueWhite
Feature nameNumber of outdoor stations (EF000477)
Feature value1
Feature namePicture system (EF003628)
Feature valuePAL
Feature nameScreen diagonal (inch) (EF006332)
Feature value5 inch
Feature nameScreen diagonal (EF002032)
Feature value127 mm
Feature nameNumber of indoor stations (EF000476)
Feature value1
Feature nameWith memory function (EF000234)
Feature valueNo
Feature nameHands free (EF000971)
Feature valueYes
Feature nameOpening angle camera (EF012436)
Feature value151 °
Feature nameZoom, pan/tilt function (EF012437)
Feature valueNo
Feature nameManual adjustable camera (EF012438)
Feature valueYes
Feature nameIFTTT support available (EF011072)
Feature valueNo
Feature nameWith day/night function (EF021124)
Feature valueYes
Feature nameSuitable for disabled persons (EF021586)
Feature valueYes
Feature nameOverhear protected (EF001215)
Feature valueNo
Feature nameInternal communication (EF001479)
Feature valueYes
