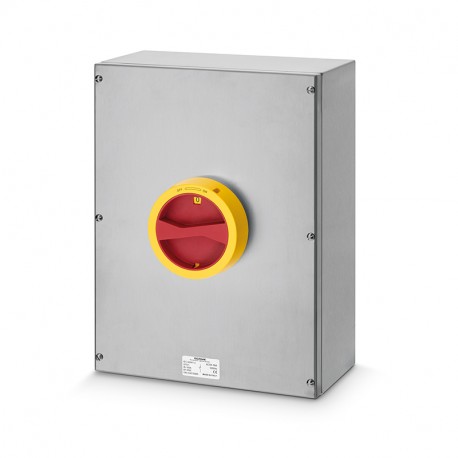

SCAME 590.SEM16005 590.SEM16005 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

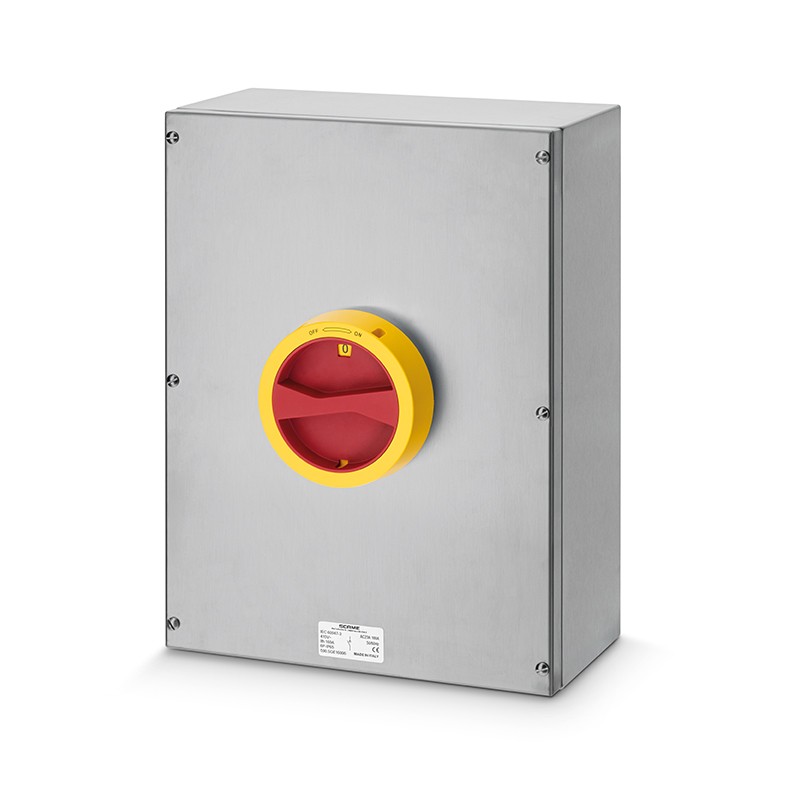

590.SEM16005 SCAME SWITCH DISCONNECTOR 160A 3P+N IP55

Reference: 590.SEM16005

Manufacturer: SCAME

Description:

SWITCH DISCONNECTOR 160A 3P+N IP55
MANOEUVRING INT. 160A 3P+N IP55
160A 3P+N IP65 300x400x150mm Y5 IK10 EMERGENCY YELLOW/RED

Categories:

  • Low-voltage industrial components > Switch disconnector
  • SCAME > Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 411,54 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Commercial Series
ISOLATORS-INOX Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
STAINLESS STEEL [AISI304L]
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
160A
Poles
3P+N
Switch size
Y5
Rated voltage
690V
Dimensions
300x400x150mm
Protection degree IK
IK10
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
160A
Current (Ie) in AC21A (415V)
160A
Current (Ie) in AC21A (500V)
160A
Current (Ie) in AC21A (690V)
160A
Current (Ie) in AC22A (415V)
160A
Current (Ie) in AC22A (500V)
160A
Current (Ie) in AC22A (690V)
125A
Current (Ie) in AC23A (415V)
160A
Current (Ie) in AC23A (500V)
125A
Current (Ie) in AC23A (690V)
125A
Power AC23A (415V)
69kW
Short-time current
3kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
125A
Terminals - Flexible wires
10-70mm²
Terminals - Rigid wires
10-70mm²
Catalogue notes
Blank sides
Equipped with door interlock
Handle padlockable in OFF position only (3 padlocks)
With late break and early make neutral pole
