SCAMESwitches - SCAME590.FEM40005 SCAME SWITCH DISCONNECTOR 400A 3P+N IP65

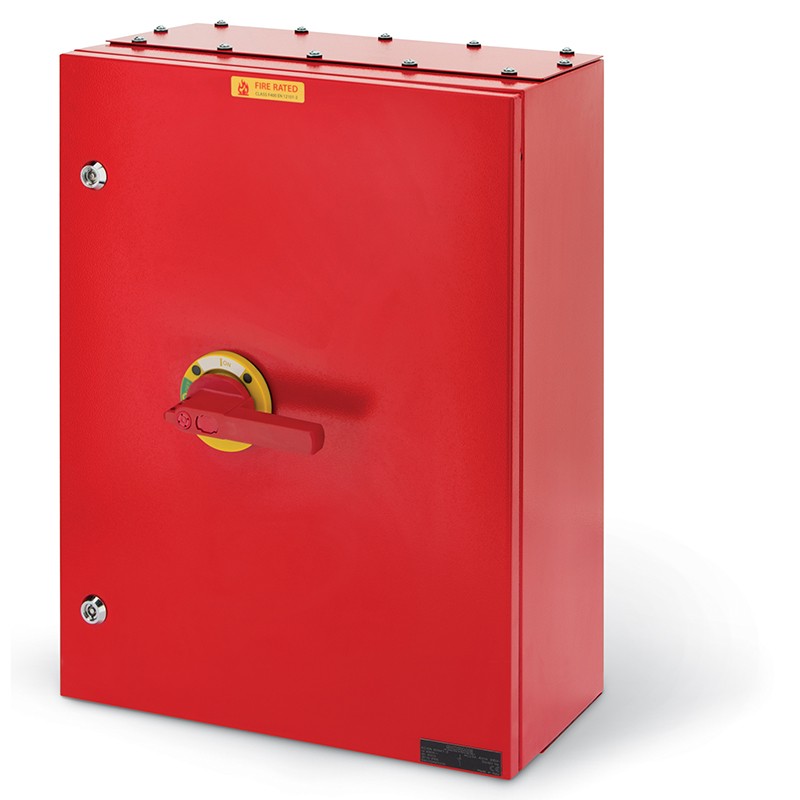

SCAME 590.FEM40005 590.FEM40005 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

590.FEM40005 SCAME SWITCH DISCONNECTOR 400A 3P+N IP65

Reference: 590.FEM40005

Manufacturer: SCAME

Description:

SWITCH DISCONNECTOR 400A 3P+N IP65
MANOEUVRING INT. 400A 3P+N IP65
400A 3P+N IP65 500x700x250mm FR5 IK10 EMERGENCY YELLOW/RED FIRE RATED

Categories:

  • SCAME > Switches - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.768,06 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Commercial Series
ISOLATORS-FR Series
Synthetical description
SWITCH DISCONNECTOR
Construction type
Enclosed
Mounting version
SURFACE MOUNTING
Material
METAL
Protection degree IP
IP65
Installation temperature
-25°C/+60°C
Type
EMERGENCY
Colour
YELLOW/RED
Rated current
400A
Poles
3P+N
Switch size
FR5
Rated voltage
690V
Dimensions
500x700x250mm
Notes
FIRE RATED
Fire rated class
F400 (120min)
Protection degree IK
IK10
Rated insulation voltage (Ui)
1000VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
400A
Current (Ie) in AC21A (415V)
400A
Current (Ie) in AC22A (415V)
400A
Current (Ie) in AC23A (415V)
400A
Power AC23A (415V)
210kW
Short-time current
13kA Icw(1s)
Conditional short circuit cur.
50kAeff
Associate fuse - type gG
400A
Terminals - Rigid wires
10-70mm²
Terminal bolt size
M10
Palm width
25mm
Catalogue notes
Equipped with door interlock
Gland plate cable entry on bottom side
Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position
With late break and early make neutral pole
