SCAME219.63374 SCAME PLUG 63A 3P+N+E 3h 380V 50Hz / 440V 60Hz

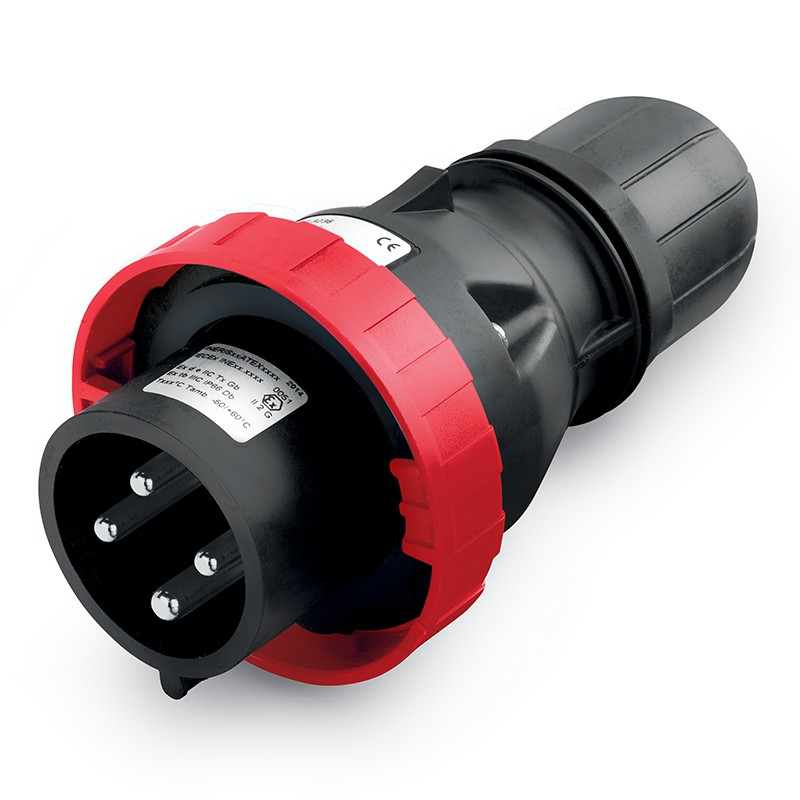

SCAME 219.63374 219.63374 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

219.63374 SCAME PLUG 63A 3P+N+E 3h 380V 50Hz / 440V 60Hz

Reference: 219.63374

Manufacturer: SCAME

Description:

PLUG 63A 3P+N+E 3h 380V 50Hz / 440V 60Hz
AERIAL PIN 3P+N+T IP66 63A 3h EX
63A 3P+N+E 3h 380V 50Hz / 440V 60Hz 50Hz 60Hz II 2GD Mantle terminals

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 197,12 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Commercial Series
OPTIMA-EX[GD] Series
Synthetical description
PLUG
Mounting version
PORTABLE
Rated current
63A
Poles
3P+N+E
Hour position
3h
Rated voltage
380V 50Hz / 440V 60Hz
Working frequency
50Hz
60Hz
Colour
RED
Material
THERMOPLASTIC
Protection degree
Splash proof
Protection degree IP
IP66
Impact resistance
7J
Types of available outlets
STRAIGHT
Terminals
Mantle terminals
Contact material
CuZn (brass)
Surface treatment contacts
Nickel-plated
Cable entry
CABLE GLAND
Group and categories EX
II 2GD
Ambient temperature Ta min
-35 °C
Ambient temperature Ta max
60 °C
Catalogue notes
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
63A and 125A versions can be coupled only with the interlocked socket outlets of the ADVANCE-GRP[GD] Series.

DATASHEET - PDF

Title
Size
Type
219.63374 219.63374 EN_219.63374.pdf
71 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
