SCAME205.KC09-K SCAME BE-K P40 COLUMN 3.7kW BASIC

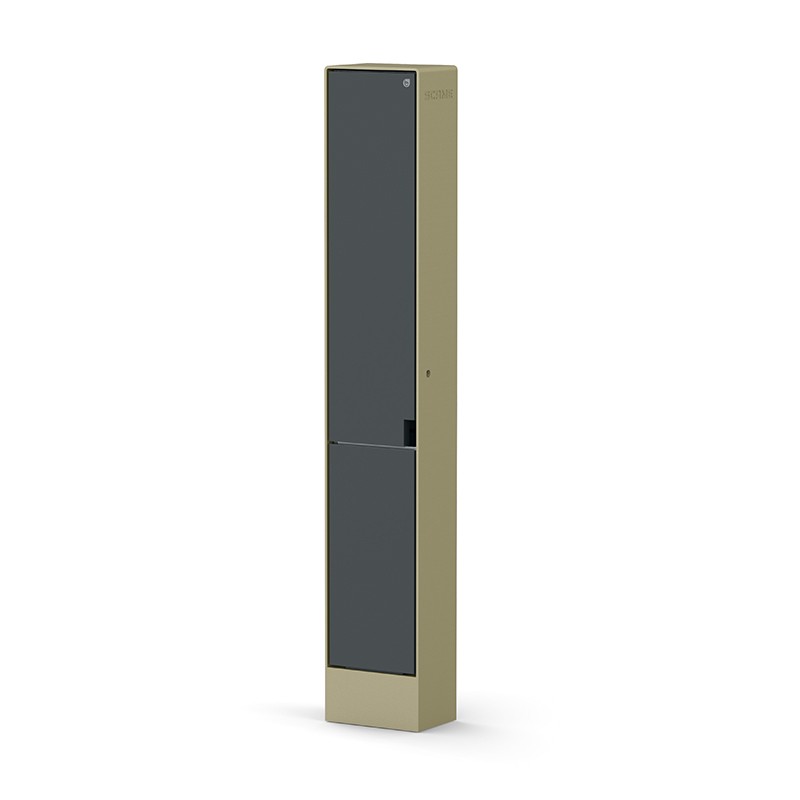

SCAME 205.KC09-K 205.KC09-K - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

205.KC09-K SCAME BE-K P40 COLUMN 3.7kW BASIC

Reference: 205.KC09-K

Manufacturer: SCAME

Description:

BE-K P40 COLUMN 3.7kW BASIC
P40 2P+E 16A 230V~ 3,7kW 16A 230V 1P+N+E IP44 IK10

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 1.453,07 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Commercial Series
BE-K Series
Synthetical description
PILLAR BE-K
Material
VARNISHED METAL
Rated current
16A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP44
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
BRONZE
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
200x135x1200mm

Version
SOLO
EV standard
P40 2P+E 16A 230V~ 3,7kW
HMI (Human-Machine Interfaces)
None
User authentication
Free
Connectivity
None
EV functions
protection against overcurrents and electric shock
protection against direct contact Safety Child Shutters
working in mode stand-alone free
manual door closing management
EV equipment
1 base with separation chamber
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 backup battery
1 terminal strip 3x10mm²
1 circuit breaker 1P+N D20 30mA ist. A
1 modular contactor 2P 25A 24Vdc
EV specifications
Pillar in painted galvanized steel prepared for floor installation with basement with function of anti-condensation separation room.<br> Equipped with:<br> 2 P40 sockets type (domestic) for mode 1 charging in compliance with IEC/EN 61851-1, equipped with shutter protection (IPXXD degree of protection without any additional devides), maximum supply current 16A single-phase 230Vac (3,7kW), the use of this socket is allowed only in areas where is not compulsory the mode 3.<br> Complete with:<br> Automatic and residual current device for protection against over currents and indirect contact.<br> Door locking system with key Operating temperature -30°C to +50°C.<br> Impact resistance IK10.<br> Enclosure with IP44 degree of protection.<br> Compliant with EN 61439-3 standards and complete with CE marking.<br> Color BE-BRONZE

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE SCAME EN
20 Mbytes
