PHOENIX CONTACT Automation Software (AS)PC WORX BASIC-PRO LIC 2985259 PHOENIX CONTACT Software

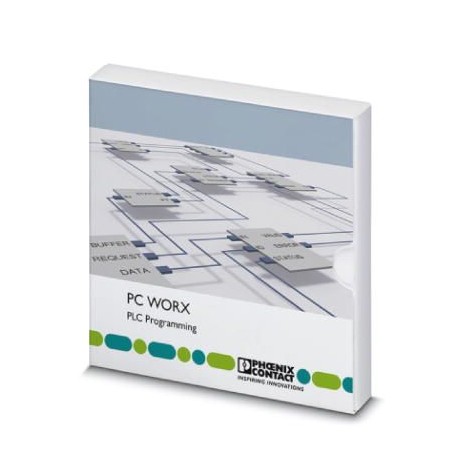

PHOENIX CONTACT PC WORX BASIC-PRO LIC 2985259 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PC WORX BASIC-PRO LIC 2985259 PHOENIX CONTACT Software

Reference: PC WORX BASIC-PRO LIC

Code: 2985259

Manufacturer: PHOENIX CONTACT

Description:

Software
Software package for PC-based automation solutions, PC WORX PRO license, includes all 5 IEC languages, with MSFC compiler, input and output data max. 128 Kbyte, version-specific license keyUpgrade from an existing basic license to a full license.

Categories:

  • PHOENIX CONTACT > Automation Software (AS)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Key Commercial Data

Orderkey2985259
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 57 (C-6-2017)
GTIN4046356099530
Weight per Piece (excluding packing)81.000 g
Custom tariff number85234910
Country of originDE (Germany)

License information

Intended use for the softwareEngineering software for controllers

Functions

Basic functionsPlanning an automation system, parameterizing the INTERBUS and PROFINET devices, operating INTERBUS and PROFINET, programming an automation system in acc. with IEC 61131-3. communication in acc. with IEC 61131-5
Symbolic flowchart (SFC)
Instruction list (IL)
Structured text (ST)
Ladder diagram (LD)
Network configuration (functionality of Config+)
Network diagnostics (functionality of Diag+)
Expanded functionalityUnlimited number of input/output data
Machine Sequential Function Chart (MSFC)
Fixed Format Ladder Editor (FFLD)
Number of I/O nodes128 I/O kbytes
ConfigurationINTERBUS
PROFINET
Modbus/TCP
DiagnosticsINTERBUS, PROFINET
Control system(Target system) Embedded and PC-based controllers

Hardware requirements

Hard diskmin. 2 GByte
RAMmin. 2 GByte
CPUmin. 2 GHz, x86 architecture
InterfacesSerial COM port, Ethernet (PCI if there is an INTERBUS master card in the PC)
Optical driveDVD-ROM
Monitor resolutionSXGA (1280 x 1024)
Operating equipmentKeyboard, mouse

Software requirements

Operating systemWindows®7 Professional SP1 (32-Bit/64-Bit)
Windows®7 Ultimate SP1 (32-Bit/64-Bit)
Windows®8.1 Professional (32-Bit/64-Bit)
Windows®8.1 Enterprise (32-Bit/64-Bit)
Windows®10 (32-bit/64-bit), as of Build 1511
Languages supportedGerman, English, French, Italian, Spanish, Chinese
Supported browsersInternet Explorer Version 8 or later

Classifications

ETIM for 2985259 PLC's (EC000809)

Feature nameWith editor for programming language IL (Instruction List) (EF003035)
Feature valueYes
Feature nameWith editor for programming language LD (Ladder Diagram) (EF003036)
Feature valueYes
Feature nameWith editor for programming language FBD (Function Block Diagram) (EF003037)
Feature valueYes
Feature nameWith editor for programming language ST (structured text) (EF003038)
Feature valueYes
Feature nameWith editor for programming language SFC (Sequential Function Chart) (EF003039)
Feature valueYes
Feature nameWith editor for programming language Flowchart (EF006647)
Feature valueNo
Feature nameWith editor for manufacturer specific programming language (EF003040)
Feature valueYes
Feature nameIntegrated diagnosis function (EF003063)
Feature valueYes
Feature nameIntegrated configuration function (EF003064)
Feature valueYes
Feature nameIntegrated evaluation function (EF003065)
Feature valueYes
Feature nameIntegrated application configuration function (EF003066)
Feature valueNo
Feature nameIntegrated data detection function (EF003067)
Feature valueYes
Feature nameIntegrated communication function (EF003068)
Feature valueYes
Feature nameTechnology function integrated (EF003069)
Feature valueNo
Feature namePut into operation function integrated (EF003070)
Feature valueNo
Feature nameSimulation function integrated (EF003072)
Feature valueNo
Feature nameIntegrated motion function (EF003073)
Feature valueNo
Feature nameIntegrated analysis function (EF003074)
Feature valueYes
Feature nameIntegrated position function (EF003075)
Feature valueNo
Feature nameMaintenance function integrated (EF003328)
Feature valueYes
Feature nameSuitable for safety functions (EF001597)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
PHOENIX CONTACT-2985259-PC WORX BASIC-PRO LIC
100 Kbytes
