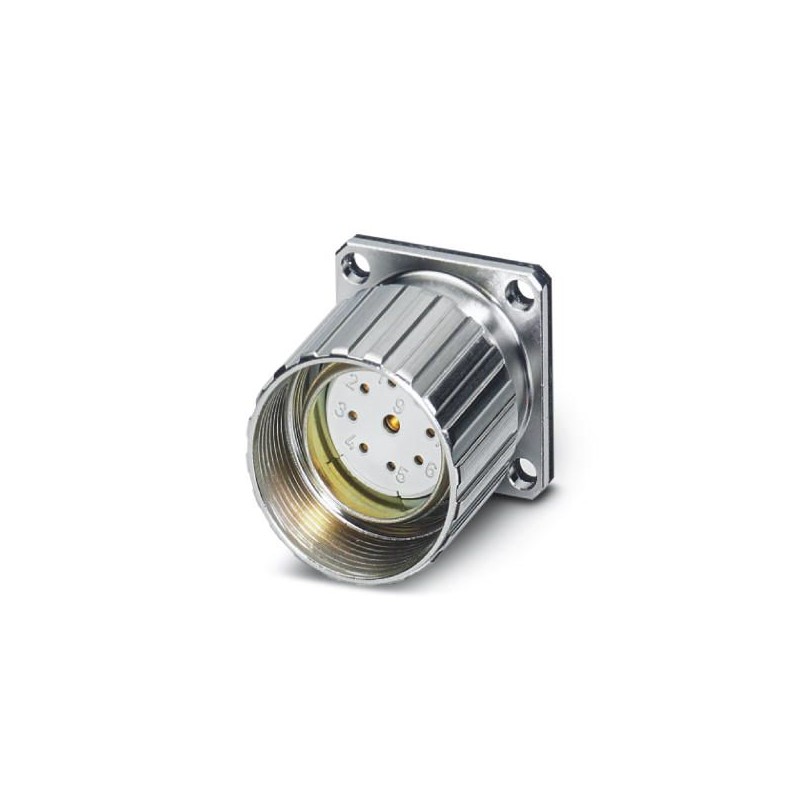

PHOENIX CONTACT  RC-12S2N12Y300 1599993 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

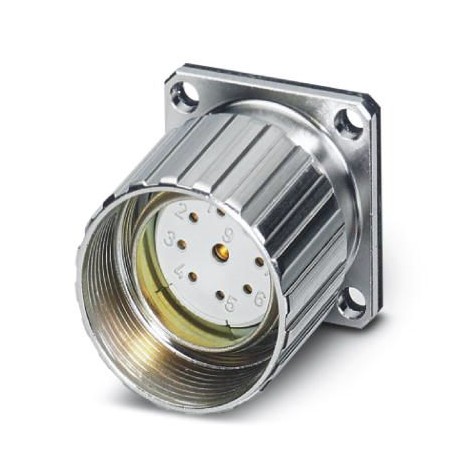

RC-12S2N12Y300 1599993 PHOENIX CONTACT M23, Plug-in connector for front wall appliances with knurled nut, se..

Reference: RC-12S2N12Y300

Code: 1599993

Manufacturer: PHOENIX CONTACT

Product on demand only, returns will not be accepted.

Description:

M23, Plug-in connector for front wall appliances with knurled nut, series: RC, straight, shielded: no, Screw lock, No. of poles: 12, Direction of rotation: Opposite movement, type of contact connection: Female, Solder cup, Flat joint, 4x Ø 3.2, coding: N

Categories:

  • Connectors > Circular connector, mounting (without cable)
  • PHOENIX CONTACT > Field Device Connectors (FDC)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 44,23 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Key Commercial Data

Orderkey1599993
Packing unit1
GTIN4046356228091
Custom tariff number85366990

Data of the insulating body

CodingN
Insertion/withdrawal cycles mechanical50
Contact connection methodSolder connection
Type of contactsSocket
ApplicationSignal
Number of positions12
Contact diameter of power contacts1 mm
Litz wire cross section of power contacts min.0.08 mm²
Litz wire cross section of power contacts max.1 mm²
Nominal current per power contact at 25°C8 A
Nominal voltage, power contact150 V
Rated surge voltage1.5 kV
Overvoltage categoryII
Degree of pollution3
Overvoltage categoryII
Degree of pollution3

Housing data

Degree of protection (when plugged in)IP67

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

ETIM for 1599993 Connectors (EC002635)

Feature nameNumber of data contacts (EF012232)
Feature value0
Feature nameNumber of power contacts (EF012216)
Feature value0
Feature nameType of locking (EF000208)
Feature valueOther
Feature nameWith protective conductor (EF007468)
Feature valueNo
Feature nameScreened (EF000881)
Feature valueNo
Feature nameWith status indication (EF001602)
Feature valueNo
