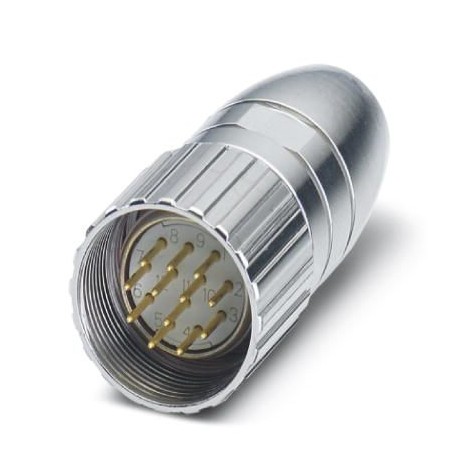

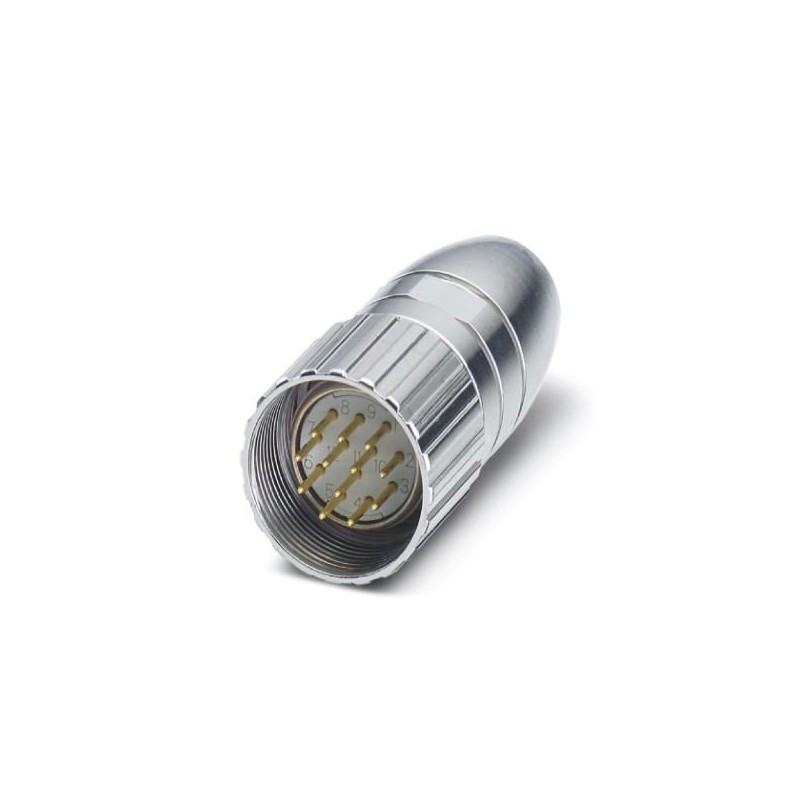

PHOENIX CONTACT  RC-07P1NS28007 1616848 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

RC-07P1NS28007 1616848 PHOENIX CONTACT Cable connector

Reference: RC-07P1NS28007

Code: 1616848

Manufacturer: PHOENIX CONTACT

Description:

Cable connector

Categories:

  • Sensors > Sensor-actuator connector chassis
  • PHOENIX CONTACT > Field Device Connectors (FDC)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Key Commercial Data

Orderkey 1616848
Packing unit 1
GTIN4046356517270
Custom tariff number85366990

Data of the insulating body

CodingN
Insertion/withdrawal cycles mechanical50
Contact connection methodScrew connection
Type of contactsPin
ApplicationSignal
Number of positions7
Contact diameter of power contacts2 mm
Nominal current per power contact at 25°C20 A
Nominal voltage, power contact150 V
Rated surge voltage2.5 kV
Overvoltage categoryII
Degree of pollution3
Overvoltage categoryII
Degree of pollution3

Housing data

Housing materialMetal
Type of lockingScrew locking
Degree of protection (when plugged in)IP67
Thread typeM23

Cable seal data

Cable diameter7.5 mm ... 9.5 mm
Litz wire bundle diameter5.8 mm

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications
