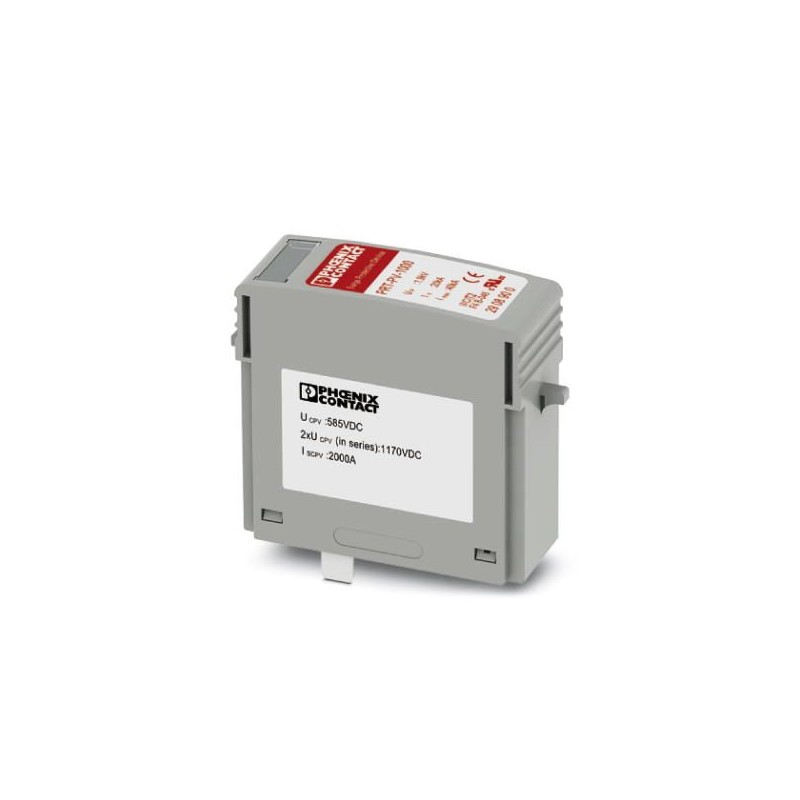

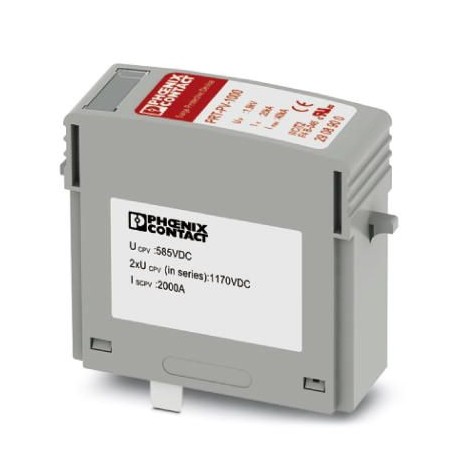

PRT-PV-1000 2908900 PHOENIX CONTACT Type 2 surge arrester
Reference: PRT-PV-1000
Code: 2908900
Manufacturer: PHOENIX CONTACT
Description:
Type 2 surge arrester
Lightning-fast current arrester integrated into the main circuit board according to type 2/class II for MPPT protection of one or more electrical circuits
Categories:
- PHOENIX CONTACT > Trabtech (TT)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
Key Commercial Data
| Orderkey | 2908900 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626354804 |
| Weight per Piece (excluding packing) | 77.120 g |
| Custom tariff number | 85363030 |
| Country of origin | CN (China) |
Ambient conditions
| Degree of protection | IP00 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 5000 m (amsl (above mean sea level)) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (operation) | 5g (10-500 Hz/2.5 h/XYZ) |
General
| EN type | T2 |
|---|---|
| SPD failure behavior | OCM |
| Installation location | Inside |
| Accessibility | Accessible |
| Installation location of the disconnect device | Internal |
| Mounting type | PCB mounting |
| Color | traffic grey A RAL 7042 |
| Housing material | PA 6.6-FR |
| Degree of pollution | 2 |
| Distance between live and grounded parts | 8.2 mm |
| Flammability rating according to UL 94 | V-0 |
| Type | PCB onboard surge protector |
Protective circuit DC voltage side (DC)
| Maximum continuous operating voltage UCPV | 585 V DC (single item) |
|---|---|
| 1170 V DC (2 serial connections) | |
| Short-circuit current rating ISCPV | 2000 A |
| Continuous operating current ICPV | < 100 µA |
| Residual current IPE | ≤ 100 µA |
| Standby power consumption PC | ≤ 125 mVA |
| Nominal discharge current (8/20) µs | 20 kA |
| Maximum discharge current Imax(8/20) µs | 40 kA |
| Total discharge current Itotal(8/20) µs | 40 kA |
| Voltage protection level Up | ≤ 1.9 kV (single item) |
| ≤ 3.75 kV (2 serial connections) | |
| Residual voltage Ures | ≤ 1.9 kV (at In) |
| ≤ 2.4 kV (at 40 kA) | |
| Response time tA | ≤ 25 ns |
| Insulation resistance Riso | > 5 GΩ (at 500 V DC) |
Indicator/remote signaling
| Switching function | normal/deterioration |
|---|---|
| Operating voltage | 30 V AC |
| 30 V DC | |
| Operating current | 1 A AC |
| 1 A DC |
UL specifications
| SPD Type | 4CA |
|---|---|
| Maximum continuous operating voltage MCOV | 585 V DC (Ld-Ld) |
| Nominal voltage | 485 V DC |
| Mode of protection | Ld-Ld |
| Measured limiting voltage MLV | 1900 V |
| Nominal discharge current In | 20 kA |
