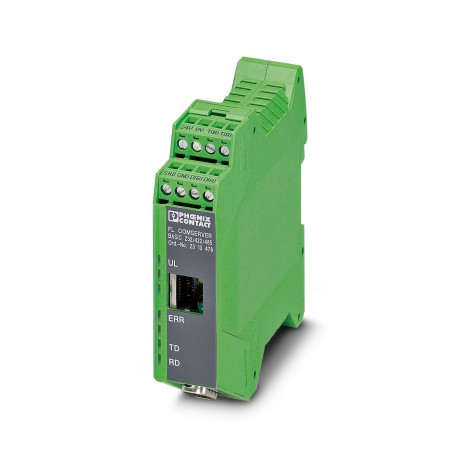

PHOENIX CONTACT FL COMSERVER BASIC 232/422/485 2313478 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

FL COMSERVER BASIC 232/422/485 2313478 PHOENIX CONTACT Interface converters

Reference: FL COMSERVER BASIC 232/422/485

Code: 2313478

Manufacturer: PHOENIX CONTACT

Description:

Interface converters
Second generation FL COMSERVER BASIC..., serial server for conversion of a serial RS-232/422/485 interface to Ethernet, supports TCP and UDP applications, incl. Com Port Redirector software and user documentation (PDF)

Categories:

  • PLC's > PLC communication module
  • PHOENIX CONTACT > Safety

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 458,16 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Key Commercial Data

Orderkey2313478
Packing unit1 pc
Catalog pagePage 341 (C-6-2017)
GTIN4046356451314
Weight per Piece (excluding packing)180.300 g
Custom tariff number85176200
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width22.5 mm
Height99 mm
Depth116 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
-20 °C ... 60 °C (With UL approval)
Ambient temperature (storage/transport)-25 °C ... 70 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)5 % ... 95 % (non-condensing)
Altitude5000 m (For restrictions see manufacturer's declaration)
Degree of protectionIP20
Noise immunityEN 61000-6-2:2005

General

Electrical isolationDIN EN 50178 (VCC // Ethernet // Serial)
Test voltage data interface/data interface1.5 kVrms(50 Hz, 1 min.)
Test voltage data interface/power supply1.5 kVrms
1.5 kVrms(50 Hz, 1 min.)
Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise emissionEN 61000-6-4
Net weight180.3 g
Housing materialPA 6.6-FR
Colorgreen
MTBF666 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
179 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day))
MTTF2001 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day))
870 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day))
355 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day))
ConformanceCE-compliant
ATEX II 3 G Ex nA IIC T4 Gc X (Please follow the special installation instructions in the documentation!)
UL, USAClass I, Zone 2, AEx nA IIC T5
UL, USA/Canada508 Listed
Class I, Div. 2, Groups A, B, C, D
UL, CanadaClass I, zone 2, Ex nA IIC T5 Gc X

Power supply

Nominal supply voltage24 V AC/DC ±20 % (via pluggable COMBICON screw terminal block)
24 V DC ±5 % (as an alternative or redundant, via backplane bus contact and system current supply)
Supply voltage range19.2 V AC/DC ... 28.8 V AC/DC (via pluggable COMBICON screw terminal block)
22.8 V DC ... 25.2 V DC (as an alternative or redundant, via backplane bus contact and system current supply)
Typical current consumption100 mA (24 V DC)

Serial interface

Interface 1Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u
InterfaceEthernet
No. of ports1
Connection methodRJ45 socket, shielded
Transmission length≤ 100 m (shielded twisted pair)
Protocols supportedTCP/IP, UDP
Auxiliary protocolsARP, DHCP, BOOTP, SNMP, RIP, RARP, HTTP, TFTP, ICMP
Serial transmission speed10/100 Mbps, auto negotiation
Interface 2V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
InterfaceRS-232
Connection methodD-SUB 9 plug
File format/codingUART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity
Transmission length15 m
Pin assignmentDTE/DCE switchover via web-based management
Data flow control/protocolsSoftware handshake, Xon/Xoff or hardware handshake RTS/CTS
Serial transmission speed0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4 kbps
Interface 3RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1
InterfaceRS-422
Connection methodPlug-in/screw connection via COMBICON
File format/codingUART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity
Transmission length≤ 1200 m
Termination resistor390 Ω (configurable)
180 Ω
390 Ω
Data flow control/protocolsAutomatic control
Serial transmission speed0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4; 500; 1000 kbps
Interface 4RS-485 interface, in acc. with EIA/TIA-485, DIN 66259-4/RS-485 2-wire
InterfaceRS-485
Connection methodPlug-in/screw connection via COMBICON
File format/codingUART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity
Termination resistor390 Ω (configurable)
180 Ω
390 Ω
Data flow control/protocolsAutomatic control
Serial transmission speed0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4; 500; 1000 kbps

Function

Web-based managementyes
ManagementWeb-based management, SNMP, emergency exit with Telnet and serial
Status and diagnostic indicatorsLEDs: UL (logic voltage), TD + RD (data activity serial), FD (full duplex), 100 (100 Mbps mode), Link (Ethernet), Activity (Ethernet), ERR (error)

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Type of testFree fall in acc. with IEC 60068-2-32
Test result1 m
Type of testVibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Test result5g, 10...150 Hz, 2.5 h, in XYZ direction
Type of testShock in acc. with EN 60068-2-27/IEC 60068-2-27
Test result15g, 11 ms period, half-sine shock pulse
Type of testShock in acc. with EN 60068-2-27/IEC 60068-2-27
Test result30g, 11 ms period, half-sine shock pulse
Noise emissionEN 61000-6-4
Noise immunityEN 61000-6-2:2005
Free from substances that could impair the application of coatingaccording to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard
Standards/regulationsEN 50121-4
ConformanceCE-compliant
ATEX II 3 G Ex nA IIC T4 Gc X
UL, USAClass I, Zone 2, AEx nA IIC T5
UL, USA/Canada508 Listed
Class I, Div. 2, Groups A, B, C, D
UL, CanadaClass I, zone 2, Ex nA IIC T5 Gc X
Noxious gas testISA-S71.04-1985 G3 Harsh Group A

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

ETIM for 2313478 PLC's (EC001423)

Feature nameNumber of HW-interfaces industrial Ethernet (EF003020)
Feature value0
Feature nameNumber of interfaces PROFINET (EF006932)
Feature value0
Feature nameNumber of HW-interfaces RS-232 (EF003021)
Feature value0
Feature nameNumber of HW-interfaces RS-422 (EF003022)
Feature value0
Feature nameNumber of HW-interfaces RS-485 (EF003023)
Feature value0
Feature nameNumber of HW-interfaces serial TTY (EF003024)
Feature value0
Feature nameNumber of HW-interfaces USB (EF003025)
Feature value0
Feature nameNumber of HW-interfaces parallel (EF003026)
Feature value0
Feature nameNumber of HW-interfaces wireless (EF006933)
Feature value0
Feature nameNumber of HW-interfaces other (EF003027)
Feature value0
Feature nameWith optical interface (EF003028)
Feature valueNo
Feature nameSupporting protocol for EtherCAT (EF017564)
Feature valueNo
Feature nameSupporting protocol for TCP/IP (EF003050)
Feature valueYes
Feature nameSupporting protocol for PROFIBUS (EF003052)
Feature valueNo
Feature nameSupporting protocol for CAN (EF003053)
Feature valueNo
Feature nameSupporting protocol for INTERBUS (EF003054)
Feature valueNo
Feature nameSupporting protocol for ASI (EF003051)
Feature valueNo
Feature nameSupporting protocol for KNX (EF003055)
Feature valueNo
Feature nameSupporting protocol for Modbus (EF003057)
Feature valueNo
Feature nameSupporting protocol for Data-Highway (EF003058)
Feature valueNo
Feature nameSupporting protocol for DeviceNet (EF003059)
Feature valueNo
Feature nameSupporting protocol for SUCONET (EF003060)
Feature valueNo
Feature nameSupporting protocol for LON (EF003017)
Feature valueNo
Feature nameSupporting protocol for PROFINET IO (EF007525)
Feature valueNo
Feature nameSupporting protocol for PROFINET CBA (EF007524)
Feature valueNo
Feature nameSupporting protocol for SERCOS (EF006657)
Feature valueNo
Feature nameSupporting protocol for Foundation Fieldbus (EF007522)
Feature valueNo
Feature nameSupporting protocol for EtherNet/IP (EF007521)
Feature valueNo
Feature nameSupporting protocol for AS-Interface Safety at Work (EF007519)
Feature valueNo
Feature nameSupporting protocol for DeviceNet Safety (EF007520)
Feature valueNo
Feature nameSupporting protocol for INTERBUS-Safety (EF006662)
Feature valueNo
Feature nameSupporting protocol for PROFIsafe (EF007526)
Feature valueNo
Feature nameSupporting protocol for SafetyBUS p (EF007527)
Feature valueNo
Feature nameSupporting protocol for other bus systems (EF003062)
Feature valueNo
Feature nameRadio standard Bluetooth (EF007178)
Feature valueNo
Feature nameRadio standard WLAN 802.11 (EF007179)
Feature valueNo
Feature nameRadio standard GPRS (EF008523)
Feature valueNo
Feature nameRadio standard GSM (EF008524)
Feature valueNo
Feature nameRadio standard UMTS (EF008525)
Feature valueNo
Feature nameIO link master (EF007298)
Feature valueNo
Feature nameRedundancy (EF003156)
Feature valueNo
Feature nameWith potential separation (EF003272)
Feature valueNo
Feature nameSIL according to IEC 61508 (EF009889)
Feature valueNone
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueNone
Feature nameAppendant operation agent (Ex ia) (EF004141)
Feature valueNo
Feature nameAppendant operation agent (Ex ib) (EF004142)
Feature valueNo
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameWidth (EF000008)
Feature value22.5 mm
Feature nameHeight (EF000040)
Feature value99 mm
Feature nameDepth (EF000049)
Feature value116 mm
