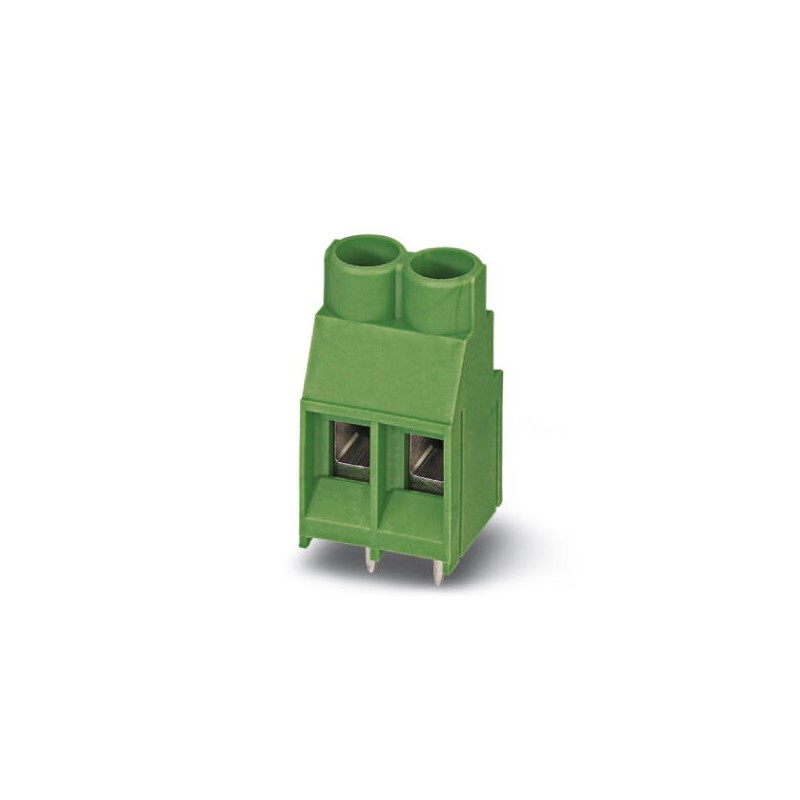

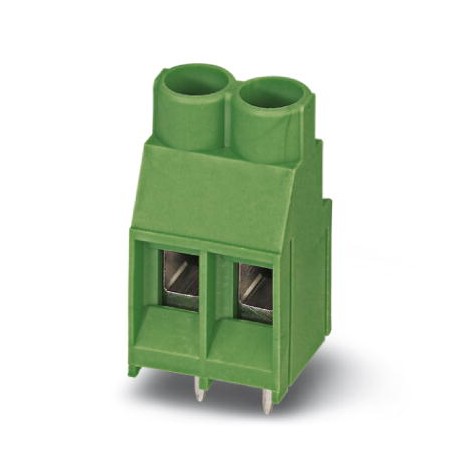

MKDS 5/ 6-6,35 NZ:17476 1929164 - PHOENIX_CONTACT
MKDS 5/ 6-6,35 NZ:17476
1929164
PHOENIX_CONTACT
50
Разъемы PCB
* Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами PHOENIX_CONTACT
Best sellers
▲Описание
▲Electrical parameters
| Rated current | 32 A |
|---|---|
| Rated insulation voltage (III/2) | 630 V |
| Rated surge voltage (III/2) | 6 kV |
Connection capacity
| Conductor cross section solid | 0.2 mm² ... 6 mm² |
|---|---|
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG / kcmil | 24 ... 10 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 4 mm² |
| 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve | 0.25 mm² ... 0.75 mm² |
| 2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve | 0.5 mm² ... 2.5 mm² |
| Stripping length | 8 mm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface soldering area (top layer) | Tin (4 - 8 µm Sn) |
Material data - housing
| Insulating material | PA |
|---|---|
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions for the product
| Dimensional drawing |  |
|---|---|
| Caption | Schematic representation – for additional information, see product range drawing in the Download Center |
| Length [ l ] | 12.5 mm |
| Width [ w ] | 38.1 mm |
| Height [ h ] | 26.6 mm |
| Pitch | 6.35 mm |
| Height (without solder pin) | 21.5 mm |
| Solder pin [P] | 5.1 mm |
| Pin dimensions | 0.9 x 0.9 mm |
| Dimension a | 31.75 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C |
Electrical tests
| Rated current | 32 A |
|---|---|
| Rated insulation voltage (III/2) | 630 V |
| Rated surge voltage (III/2) | 6 kV |
Air clearances and creepage distances
| Insulating material group | I |
|---|---|
| Comparative tracking index (IEC 60112:2003-01) | CTI 600 |
| Voltage | 500 V |
| Rated insulation voltage (III/3) | 500 V |
| Rated insulation voltage (III/2) | 630 V |
| Rated insulation voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 6 kV |
| Rated surge voltage (III/2) | 6 kV |
| Rated surge voltage (II/2) | 6 kV |
| Minimum clearance - inhomogeneous field (III/3) | 5.5 mm |
| Minimum clearance - inhomogeneous field (III/2) | 5.5 mm |
| Minimum clearance - inhomogeneous field (II/2) | 5.5 mm |
| Minimum creepage distance value (III/3) | 6.3 mm |
| Minimum creepage distance value (III/2) | 5.5 mm |
| Minimum creepage distance value (II/2) | 5.5 mm |
| Note on connection cross section | With connected conductor 6 mm² (solid). |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
eCl@ss
| eCl@ss 4.0 | 27141109 |
|---|---|
| eCl@ss 4.1 | 27141109 |
| eCl@ss 5.0 | 27141190 |
| eCl@ss 5.1 | 27141190 |
| eCl@ss 6.0 | 27261101 |
| eCl@ss 7.0 | 27440401 |
| eCl@ss 8.0 | 27440401 |
| eCl@ss 9.0 | 27440401 |
UNSPSC
| UNSPSC 6.01 | 30211801 |
|---|---|
| UNSPSC 7.0901 | 39121432 |
| UNSPSC 11 | 39121432 |
| UNSPSC 12.01 | 39121432 |
| UNSPSC 13.2 | 39121432 |
