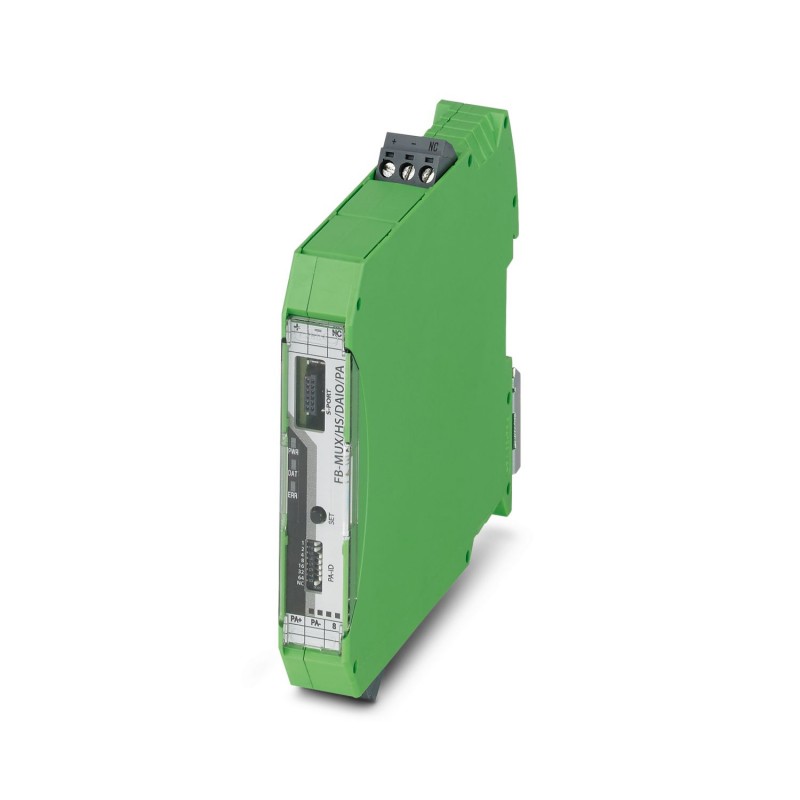

FB-MUX/HS/DAIO/PA 1005329 PHOENIX CONTACT Multiplexer
Reference: FB-MUX/HS/DAIO/PA
Code: 1005329
Manufacturer: PHOENIX CONTACT
Description:
Multiplexer
The FB-MUX/HS/DAIO/PA headend station can be used with up to three 6-channel analogue-digital I/O (RAD-DAIO6-IFS) modules. This configuration can be used as a combined analogue-digital I/O solution.
Categories:
- Data and telecommunication > Interface converter
- PHOENIX CONTACT > Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
Key Commercial Data
| Orderkey | 1005329 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626475028 |
| Weight per Piece (excluding packing) | 182.400 g |
| Custom tariff number | 85176200 |
| Country of origin | US (United States) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Maximum altitude | < 2000 m |
| Permissible humidity (operation) | 20 % ... 95 % (Non-condensing) |
| Degree of protection | IP20 |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Stripping length | 7 mm |
| Screw thread | M3 |
| Connection method | Screw connection |
| Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm |
General
| Flammability rating according to UL 94 | V0 |
|---|---|
| Degree of pollution | 2 |
| Overvoltage category | II |
| Housing material | PA 6.6-FR |
| Color | green |
Classifications
