OMRONTemperature and ProcessesE5CN-HE5CN-HR2MD-500 24VAC/DC E5CN7204E E5CNHR2MD500ACDC24 OMRON Universal input, 2 Alarm Output Relay

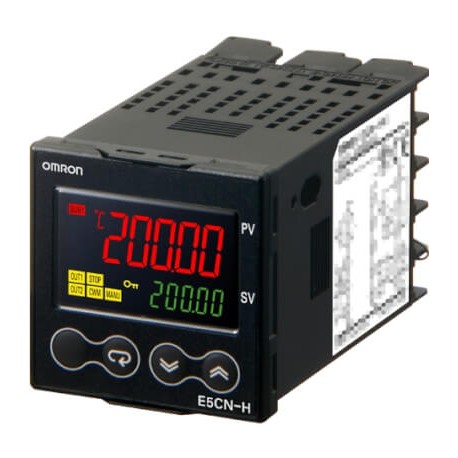

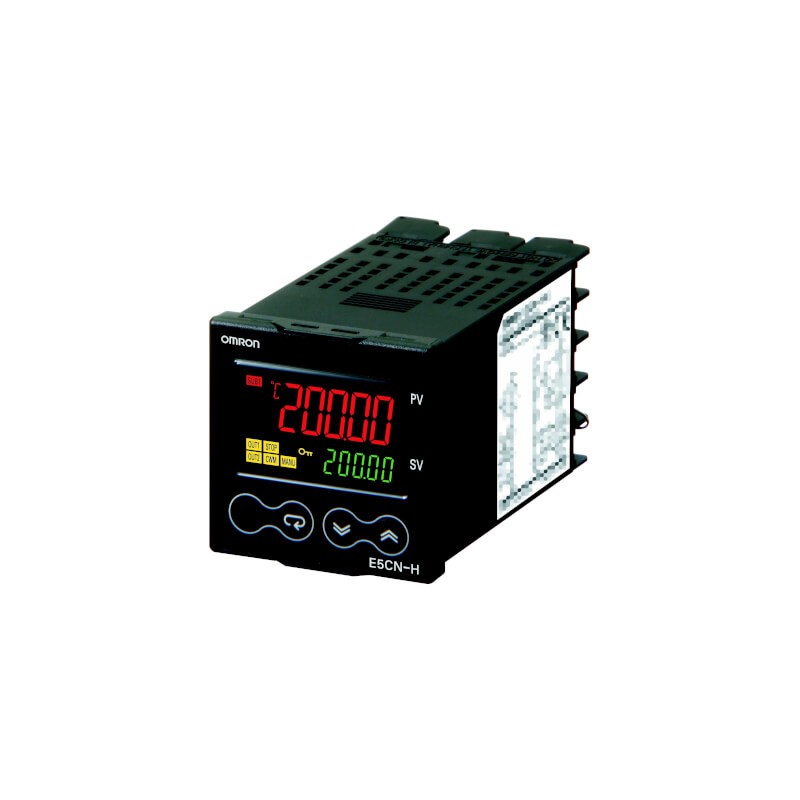

OMRON E5CN-HR2MD-500 24VAC/DC E5CN7204E E5CNHR2MD500ACDC24 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

E5CN-HR2MD-500 24VAC/DC E5CN7204E E5CNHR2MD500ACDC24 OMRON Universal input, 2 Alarm Output Relay

Reference: E5CN-HR2MD-500 24VAC/DC

Code: E5CN7204E

Catalog Number: E5CNHR2MD500ACDC24

Manufacturer: OMRON

Description:

Universal input, 2 Alarm Output Relay
Temp. controller, PROplus,1/16 DIN, (48 x 48)mm,1 x Relay Out,2 x Aux OUT,option unit,24V AC/DC

Categories:

  • Relays > Temperature monitoring relay
  • OMRON > Temperature and Processes > E5CN-H

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 397,57 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Specifications

Size1/16 DIN (48 x 48 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs2
Number of alarm outputs2
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Control outputRelay
Terminal typeScrew

ETIM for 246795 Relays (EC001446)

Feature nameVoltage type (operating voltage) (EF005294)
Feature valueAC/DC
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueAC/DC
Feature nameError registration possible (EF003423)
Feature valueNo
Feature nameExternal reset possible (EF003426)
Feature valueNo
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value2
Feature nameWidth (EF000008)
Feature value48 mm
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNumber of measuring circuits (EF003425)
Feature value1
Feature nameHeight (EF000040)
Feature value48 mm
Feature nameDepth (EF000049)
Feature value78 mm
Feature nameSupply voltage AC 50 Hz (EF007532)
Feature value21.6 V
Feature nameTemperature measuring range (EF009788)
Feature value-200 °C
Feature nameSupply voltage AC 60 Hz (EF007533)
Feature value21.6 V
Feature nameSupply voltage DC (EF007534)
Feature value21.6 V

DATASHEET - PDF

Title
Size
Type
E5CN-HR2MD-500 24VAC/DC E5CNHR2MD500ACDC24 E5CN7204E colour_change_displays_leaflet_en.pdf
272 Kbytes
E5CN-HR2MD-500 24VAC/DC E5CNHR2MD500ACDC24 E5CN7204E e5_n_h_brochure_en.pdf
422 Kbytes
PDF CATALOGO OMRON AUTOMATION EN
19 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
