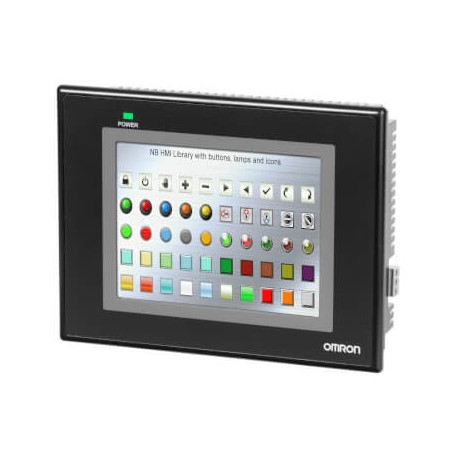

NB5Q-TW01B NB5Q9004M NB5QTW01B,1 OMRON Терминал NB 5.6"" TFT, 320 x 234, Ethernet, USB, учитель
NB5Q-TW01B
NB5Q9004M
NB5QTW01B,1
OMRON
Терминал NB 5.6"" TFT, 320 x 234, Ethernet, USB, учитель
5,6-дюймовый цветной разъем TFT NB, 320 x 234, Ethernet, Master USB
Сенсорная панель оператора серии NB, диагональ 5,6”, TFT, 65535 цветов, разрешение 320x234 точек, 1 x RS-232C порт, 1 x RS-232C/RS-422/RS-485 порт, Ethernet, память 128 Mбайт, USB, USB-хост, питание 24В=
Сенсорный экран HMI, 5,6-дюймовый QVGA (320 x 234 пикселя), цветной TFT, Ethernet + USB Host
Программируемые логические контроллеры (ПЛК) > Графическая панель
Интерфейсы человек-машина > серии NB
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами OMRON
Best sellers
▲Описание
▲Технические характеристики
| Screen diagonal | 5.6 inch |
| Number of pixels, horizontal | 320 |
| Number of pixels, vertical | 234 |
| Type of display | TFT |
| Frame colour | Black |
| Number of Ethernet ports | 1 |
| Number of RS-232 ports | 2 |
| Number of RS-422 ports | 1 |
| Number of RS-485 ports | 1 |
| Number of USB ports | 2 |
| Number of colours of the display | 65536 |
| Number of grey-scales/blue-scales of display | 64 |
| Degree of protection (IP), front side | IP65 |
| Width of the front | 184 mm |
| Height of the front | 142 mm |
| Width of panel cutout | 172.4 mm |
| Height of panel cutout | 131 mm |
| Built-in depth | 46 mm |
| Weight | 950 g |
Дополнительные принадлежности
| Характеристика | Значение |
|---|---|
| Type of display (EF008244) | TFT |
| Voltage type (supply voltage) (EF002991) | DC |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Touch technology (EF010884) | Resistive touch |
| Radio standard UMTS (EF008525) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Process value representation (output) possible (EF003111) | No |
| With SW interfaces (EF003121) | Yes |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Colour display (EF003097) | Yes |
| Supporting protocol for SERCOS (EF006657) | No |
| IO link master (EF007298) | No |
| Supporting protocol for KNX (EF003055) | No |
| With message system (incl. buffer and confirmation) (EF003110) | Yes |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| With printer output (EF003115) | Yes |
| Radio standard GSM (EF008524) | No |
| Additional software components, loadable (EF003117) | Yes |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Suitable for rail mounting (EF003972) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Certified for UL hazardous location class III (EF017627) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Radio standard GPRS (EF008523) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| With recipes (EF003113) | Yes |
| Certified for UL hazardous location class I (EF017622) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| With numeric keyboard (EF003105) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| With alpha numeric keyboard (EF003106) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Radio standard Bluetooth (EF007178) | No |
| Suitable for safety functions (EF001597) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| Process default value (input) possible (EF003112) | Yes |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| With message indication (EF003109) | Yes |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| Supporting protocol for ASI (EF003051) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Number of HW-interfaces other (EF003027) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Height of the front (EF003652) | 142 mm |
| Width of the front (EF003651) | 184 mm |
| Number of HW-interfaces USB (EF003025) | 2 |
| Number of pixels, vertical (EF003100) | 234 |
| Number of buttons with LED (EF009259) | 0 |
| Built-in depth (EF000218) | 46 mm |
| Number of system buttons (EF009260) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Useful project memory/user memory (EF003108) | 131072 kByte |
| Number of colours of the display (EF003098) | 65536 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of function buttons, programmable (EF003103) | 0 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 1 |
| Number of grey-scales/blue-scales of display (EF008515) | 64 |
| Number of HW-interfaces RS-232 (EF003021) | 2 |
| Number of HW-interfaces RS-422 (EF003022) | 1 |
| Number of online languages (EF003116) | 8 |
| Number of HW-interfaces RS-485 (EF003023) | 1 |
| Number of password levels (EF003114) | 16 |
| Number of pixels, horizontal (EF003099) | 320 |
| Screen diagonal (EF002032) | 5.6 inch |
| Operating temperature (EF002393) | 0 °C |
| Supply voltage DC (EF007534) | 20.4 V |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON RU.pdf | 70 Mbytes |
|
| NB5Q-TW01B NB5QTW01B,1 NB5Q9004M RU_NB10W-TW01B.pdf | 7 Mbytes |
|
| NB5Q-TW01B NB5QTW01B,1 NB5Q9004M v412_nb_series_hmi_datasheet_en.pdf | 659 Kbytes |
|
