OMRONIndustrial RelaysLYLY1 24VDC LY1 5013M LY124DC 2 OMRON SPDT 15A enchuf/welding

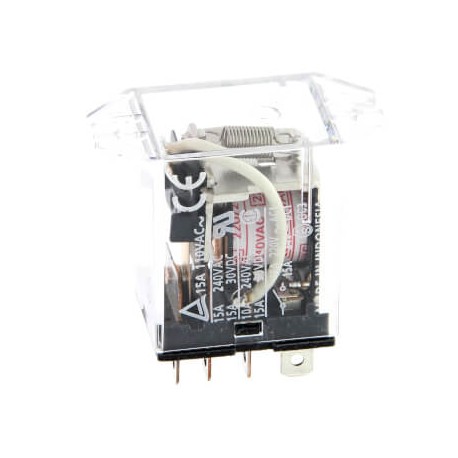

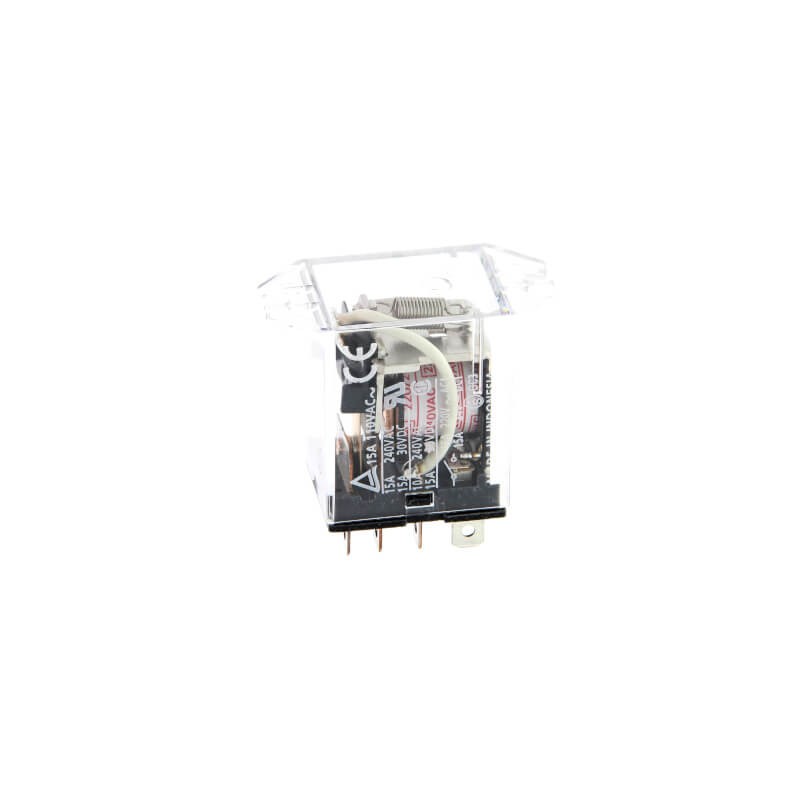

OMRON LY1 24VDC LY1 5013M LY124DC 2 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

LY1 24VDC LY1 5013M LY124DC 2 OMRON SPDT 15A enchuf/welding

Reference: LY1 24VDC

Code: LY1 5013M

Catalog Number: LY124DC 2

Manufacturer: OMRON

Description:

SPDT 15A enchuf/welding
Relay, plug-in, 5-pin, SPDT, 15 A, 24 VDC

Categories:

  • Relays > Switching relay
  • OMRON > Industrial Relays > LY

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 567,46 €

Unit Price: 11,3493 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Mounting methodWith plug-in socketUsageGeneral purpose, High powerPoles1Rated carry current15 ACoil voltage24 VOperation voltageDCContact materialAg alloyContact descriptionSPDTFeaturesTransparent caseTerminal typePlug-in

ETIM for 116888 Relays (EC001437)

Feature nameType of switch contact (EF003358)
Feature valueSingle contact
Feature nameDrive, polarization (EF003355)
Feature valuePolarized
Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameType of electric connection (EF003961)
Feature valuePlug-in connection
Feature nameDrive, switching attitude (EF003356)
Feature valueMono stable
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameComplete with socket (EF003359)
Feature valueNo
Feature nameWith LED indication (EF005950)
Feature valueNo
Feature nameWith forced-guided contacts (EF003357)
Feature valueNo
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value1
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameWidth (EF000008)
Feature value21.5 mm
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameHeight (EF000040)
Feature value28.0 mm
Feature nameDepth (EF000049)
Feature value36.0 mm
Feature nameNominal current (EF000001)
Feature value15 A
Feature nameRated control supply voltage DC (EF003980)
Feature value24 V

DATASHEET - PDF

Title
Size
Type
LY1 24VDC LY124DC 2 LY1 5013M EN_LY1-24VDC.pdf
8 Mbytes
PDF CATALOGO OMRON AUTOMATION EN
19 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
