OMRONPhotoelectric sensorsE3XE3X-NA21 2M E3X 7017M E3XNA212MOMS OMRON Manual cc 3h NPN, Timing Alarm
OMRON E3X-NA21 2M E3X 7017M E3XNA212MOMS - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

E3X-NA21 2M E3X 7017M E3XNA212MOMS OMRON Manual cc 3h NPN, Timing Alarm

Reference: E3X-NA21 2M

Code: E3X 7017M

Catalog Number: E3XNA212MOMS

Manufacturer: OMRON

Description:

Manual cc 3h NPN, Timing Alarm
Manual cc 3h NPN Timing Alarm

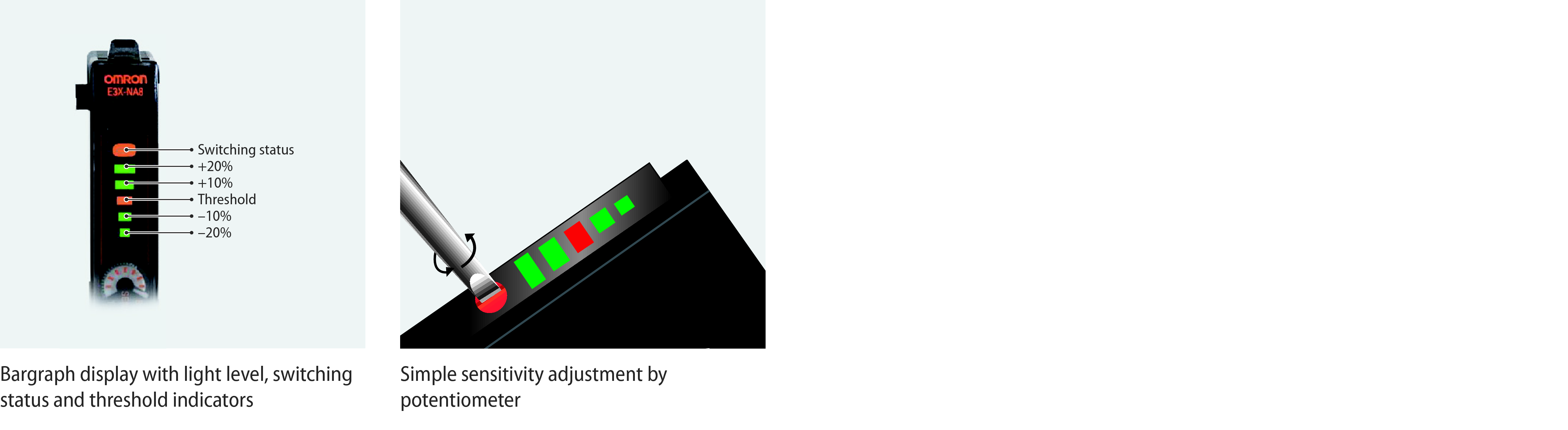

Photoelectric sensor, optical fibre amplifier, bar LED display, diagnostic output, DC, 3-wire, NPN, 2 m cable

Categories:

  • Sensors > Optical fibre sensor / optical fibre amplifier
  • OMRON > Photoelectric sensors > E3X

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 143,18 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ShapeCuboid, rail mountingSensing methodAmplifierSetting methodManual adjustmentConnection methodCableCable length2 mOutput typeNPNOperation modeDark-ON, Light-ONResponse time0.2 msMaterial housingPBTType of lightPolarity free red lightPower supply voltage12-24 VFunctionsTimerApplicationObject detectionNumber of channels1Degree of protection (IP)IP50Number of digital outputs1

ETIM for 239776 Sensors (EC002651)

Feature nameVoltage type (EF000187)
Feature valueDC
Feature nameConstruction type housing (EF004008)
Feature valueCuboid
Feature nameLaser protection class (EF004027)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP50
Feature nameSetting procedure (EF003994)
Feature valueManual adjustment
Feature nameIndication (EF000350)
Feature valueBar graph
Feature nameType of switch function (EF003963)
Feature valueProgrammable/configurable
Feature nameType of electric connection (EF003961)
Feature valueCable
Feature nameMaterial fibre optics core (EF004137)
Feature valuePlastic
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameType of light (EF004029)
Feature valuePolarity free red light
Feature nameMaterial of cable sheath (EF004136)
Feature valuePolyvinyl chloride (PVC)
Feature nameType of switching output (EF003962)
Feature valueNPN
Feature nameOperation agent-safety class (EF003982)
Feature valueSafety class 3
Feature nameAnalogue output -10 V ... +10 V (EF006809)
Feature valueNo
Feature nameAnalogue output 0 V ... 10 V (EF006807)
Feature valueNo
Feature nameAnalogue output 0 mA ... 20 mA (EF006808)
Feature valueNo
Feature nameWith blanking function (EF003968)
Feature valueNo
Feature nameAnalogue output 4 mA ... 20 mA (EF006810)
Feature valueNo
Feature nameWith time function (EF003582)
Feature valueNo
Feature nameAWG-number (EF007010)
Feature value24
Feature nameNo-load current (EF004028)
Feature value35 mA
Feature nameNumber of semiconductor outputs with signalling function (EF003945)
Feature value2
Feature nameHeight amplifier (EF007284)
Feature value31.5 mm
Feature nameLength amplifier (EF007335)
Feature value67.3 mm
Feature nameMax. output current (EF001315)
Feature value50 mA
Feature nameSwitching frequency (EF003587)
Feature value2500 Hz
Feature nameNumber of contact energized outputs with signalling function (EF003946)
Feature value0
Feature nameWidth amplifier (EF007095)
Feature value10 mm
Feature nameRated control supply voltage DC (EF003980)
Feature value12 V
Feature nameAmbient temperature (EF002386)
Feature value-25 °C

DATASHEET - PDF

Title
Size
Type
E3X-NA21 2M E3XNA212MOMS E3X 7017M EN_E3X-NA21-2M.pdf
1 Mbytes
E3X-NA21 2M E3XNA212MOMS E3X 7017M e23e_e3x_na_super_manual_fiber_amplifier_datasheet_en.pdf
1 Mbytes
PDF CATALOGO OMRON AUTOMATION EN
28 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
