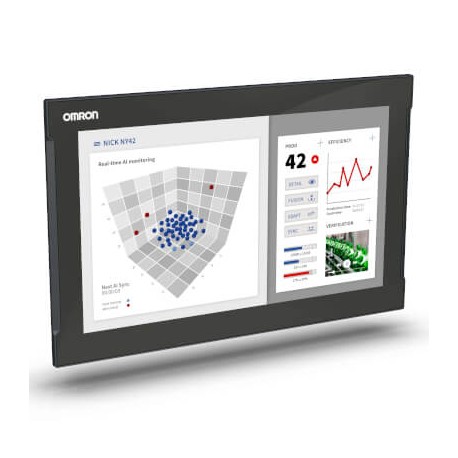

NYP2A-30450-19WC1000 NYP10788M NYP2A3045019WC1000 OMRON Промышленный панельный компьютер с процессором Intel..
NYP2A-30450-19WC1000
NYP10788M
NYP2A3045019WC1000
OMRON
Промышленный панельный компьютер с процессором Intel® Атом E3940™, 8 ГБ DRAM-памяти (без ECC), 64 ГБ памяти CFast iMLC, выиграть 10 IoT в 2019 (64-бит), не годен. слоты, не я/Ф, вариант, 18.5" (1920х1080) дисплей с емкостный сенсорный экран, встроенный тип
Панельный промышленный компьютер, процессор Intel® Atom™ E3940, 8 Гб ОЗУ, W10 IoT Enterprise LTSC (64-бит), без слота PCIe, накопитель CFast (iMLC) 64 Гб, без опционального порта, мульти-сенсорный экран 18,5
Промышленный панельный ПК с процессором Intel® Atom™ E3940, 8 ГБ DRAM (без ECC), 64 ГБ CFast iMLC, WIN 10 IoT 2019 (64-разрядная версия), без слотов для эксп., без опции ввода-вывода, 18,5-дюймовый (192)
Программируемые логические контроллеры (ПЛК) > Панельный ПК
PC Industrial > PC Industrial NY
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами OMRON
Best sellers
▲Описание
▲Технические характеристики
| Screen diagonal | 18.5 inch |
| Max. number of motion axes | 0 axes |
| Processor family | Intel® Atom™ |
| Processor specification | E3940 (1.6 GHz) |
| Cooling method | Passive cooling (fanless) |
| Memory | 8 GB RAM (non ECC) |
| Storage | 64 GB CFast |
| Operating system | Windows 10 IoT Enterprise 2019 LTSB - 64 bit |
| Expansion slot | No Expansion |
| Modular port | No Port |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, USB |
| Video output | DVI-D |
| Material housing | Aluminium, black |
| Display ratio | 16:9 |
| Number of pixels, horizontal | 1920 |
| Number of pixels, vertical | 1080 |
| Type of display | TFT |
| Touchscreen technology | Projected capacitive |
| Mounting method | Build-in |
| Degree of protection (IP), front side | IP65 |
| Operating temperature | 0-55 °C |
| Supply voltage DC | 20.4-28.8 V |
| Height of the front | 303 mm |
| Width of the front | 481 mm |
| Height of panel cutout | 285 mm |
| Width of panel cutout | 463 mm |
| Built-in depth | 63 mm |
| Weight | 6600 g |
Дополнительные принадлежности
| FH-VUAB 2M | Vision system accessory FH USB cable touch panel 2 m | |
| FH-VUAB 5M | Vision system accessory FH USB cable touch panel 5 m | |
| NY000-AC00 2M | DVI cable 2 m | |
| NY000-AC00 5M | DVI cable 5 m | |
| NY000-AT00 | CFast MLC, Capacity: 64 GB | |
| NY000-AT01 | CFast MLC, Capacity: 128 GB | |
| NY000-AT02 | CFast MLC, Capacity: 256 GB | |
| NYM12W-C1000 | Industrial Monitor, 12.1" display with capacitive touchscreen, Build-in mounting, DVI-D port | |
| NYM15W-C1000 | Industrial Monitor, 15.4" display with capacitive touchscreen, Build-in mounting, DVI-D port | |
| NYM19W-C1000 | Industrial Monitor, 18.5" display with capacitive touchscreen, Build-in mounting, DVI-D port | |
| S8BA-24D24D240LF | UPS, DIN rail type, DC-DC, 10A, 240W | |
| S8BW-C02 | UPS Connection cable (CONTACT) |
| Характеристика | Значение |
|---|---|
| Type of display (EF008244) | TFT |
| Degree of protection (NEMA) (EF011959) | Other |
| Voltage type (supply voltage) (EF002991) | DC |
| Preinstalled operating system (EF007535) | Windows 10 |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Radio standard UMTS (EF008525) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Supporting protocol for SERCOS (EF006657) | No |
| IO link master (EF007298) | No |
| Rack-assembly possible (EF007018) | No |
| With floppy disc drive (EF003128) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for LON (EF003017) | No |
| Mouse-cursor control integrated (EF003143) | Yes |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Radio standard GSM (EF008524) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Suitable for rail mounting (EF003972) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| With optical drive (EF012515) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Certified for UL hazardous location class III (EF017627) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Radio standard GPRS (EF008523) | No |
| Mounting type, table foot (EF007019) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| With hard disc (EF002000) | No |
| Certified for UL hazardous location class I (EF017622) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | Yes |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Customer individual configuration (EF003132) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Radio standard Bluetooth (EF007178) | No |
| Suitable for safety functions (EF001597) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| Mounting type, gallows mounting (EF007017) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Integrated keyboard (EF003141) | Yes |
| With touch screen (EF003102) | Yes |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| With other storage media (EF003129) | Yes |
| Supporting protocol for ASI (EF003051) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Number of function buttons (EF003142) | 0 |
| Number of HW-interfaces other (EF003027) | 3 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces PS2 (EF003139) | 0 |
| Height of the front (EF003652) | 303 mm |
| Width of the front (EF003651) | 481 mm |
| Number of free AGP-slots (EF003133) | 0 |
| Number of HW-interfaces USB (EF003025) | 4 |
| Number of pixels, vertical (EF003100) | 1080 |
| Number of buttons with LED (EF009259) | 0 |
| Number of free PCMCIA-slots (EF003136) | 0 |
| Built-in depth (EF000218) | 63 mm |
| Number of free ISA-slots (EF003135) | 0 |
| Number of system buttons (EF009260) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 3 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces SCSI (EF003138) | 0 |
| Number of free PCI-slots (EF003134) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of pixels, horizontal (EF003099) | 1920 |
| Max. main memory (EF003123) | 8192 MB |
| Screen diagonal (EF002032) | 18.5 inch |
| Operating temperature (EF002393) | 0 °C |
| Supply voltage DC (EF007534) | 20.4 V |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOGUE OMRON INDUSTRIAL PC EN.pdf | 12 Mbytes |
|
| PDF CATALOG OMRON RU.pdf | 70 Mbytes |
|
| NYP2A-30450-19WC1000 NYP2A3045019WC1000 NYP10788M DE_NYP35-40000-19WC1000.pdf | 2 Mbytes |
|
| NYP2A-30450-19WC1000 NYP2A3045019WC1000 NYP10788M nyp_industrial_panel_pc_datasheet_en.pdf | 1 Mbytes |
|
