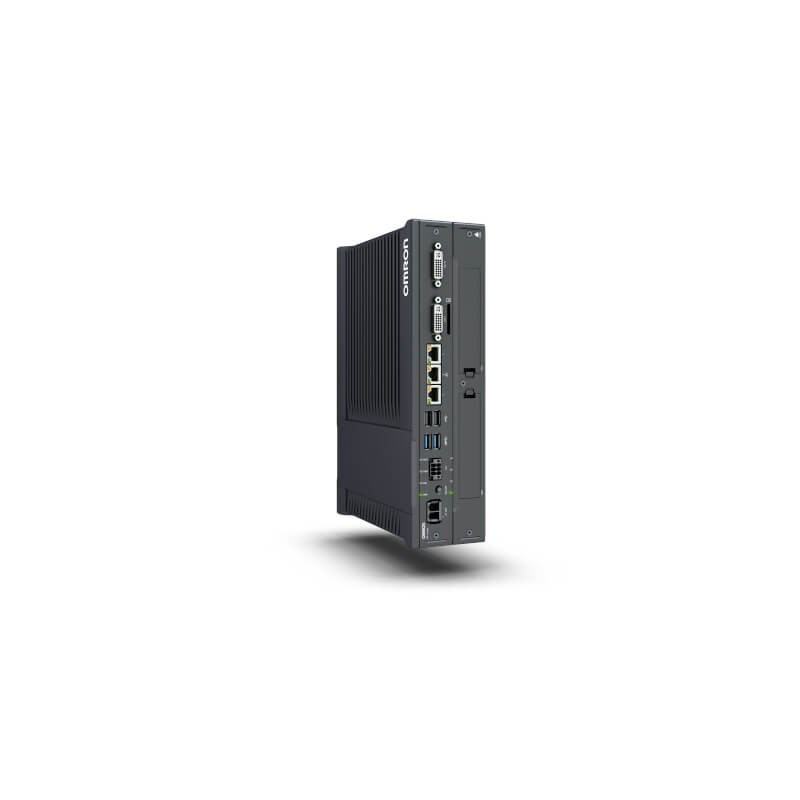

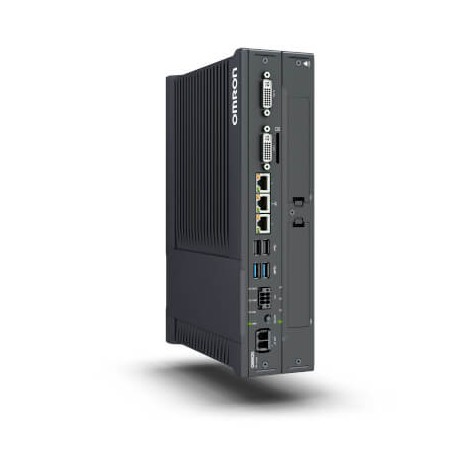

NYB35-324D2 NYB10604E NYB35324D2 OMRON Промышленный ПК с процессором Intel® Core™ i5-7300U, 8 ГБ DRAM (без E..
NYB35-324D2
NYB10604E
NYB35324D2
OMRON
Промышленный ПК с процессором Intel® Core™ i5-7300U, 8 ГБ DRAM (без ECC), 500 ГБ HDD, WIN 10 IoT 2019 (64-разрядная версия), 1 слот PCIe + 2 диска, аппаратный RAID, дополнительный DVI-D
Промышленный блочный ПК с процессором Intel® Core™ i5-7300U, 8 ГБ DRAM (без ECC), жесткий диск 500 ГБ, WIN 10 IoT 2019 (64-разрядная версия), 1 PCIe + 2 слота для дисков, аппаратный RAID, дополнительно
Программируемые логические контроллеры (ПЛК) > Промышленный ПК
PC Industrial > PC Industrial NY
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами OMRON
Best sellers
▲Описание
▲Технические характеристики
| Max. number of motion axes | 0 axes |
| Processor family | Intel® Core™ i5 |
| Processor specification | 7300U (2.6 GHz) |
| Cooling method | Passive cooling (fanless) |
| Memory | 8 GB RAM (non ECC) |
| Storage | 500 GB HDD |
| Operating system | Windows 10 IoT Enterprise 2019 LTSB - 64 bit |
| Expansion slot | 1 PCIe + 2 drive slots, Hardware RAID |
| Modular port | DVI-D |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, USB |
| Video output | DVI-D |
| Material housing | Aluminium, black |
| Degree of protection (IP) | IP20 |
| Operating temperature | 0-55 °C |
| Supply voltage DC | 20.4-28.8 V |
| Height | 73 mm |
| Width | 282 mm |
| Depth | 195 mm |
| Weight | 3000 g |
Дополнительные принадлежности
| FH-VUAB 2M | Vision system accessory FH USB cable touch panel 2 m | |
| FH-VUAB 5M | Vision system accessory FH USB cable touch panel 5 m | |
| NY000-AB01 | Wall mount bracket for Box PC | |
| NY000-AC00 2M | DVI cable 2 m | |
| NY000-AC00 5M | DVI cable 5 m | |
| NYM12W-C1000 | Industrial Monitor, 12.1" display with capacitive touchscreen, Build-in mounting, DVI-D port | |
| NYM15W-C1000 | Industrial Monitor, 15.4" display with capacitive touchscreen, Build-in mounting, DVI-D port | |
| NYM19W-C1000 | Industrial Monitor, 18.5" display with capacitive touchscreen, Build-in mounting, DVI-D port | |
| S8BA-24D24D240LF | UPS, DIN rail type, DC-DC, 10A, 240W | |
| S8BW-C02 | UPS Connection cable (CONTACT) |
| Характеристика | Значение |
|---|---|
| Construction type housing (EF004008) | Box |
| Degree of protection (NEMA) (EF011959) | 1 |
| Degree of protection (IP) (EF005474) | IP20 |
| Preinstalled operating system (EF007535) | Windows 10 |
| Voltage type (supply voltage) (EF002991) | DC |
| Processor type (EF003122) | Intel Core i5 |
| Radio standard UMTS (EF008525) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Radio standard GPRS (EF008523) | No |
| Supporting protocol for EtherCAT (EF017564) | Yes |
| Suitable for operating system Windows ME (EF003045) | No |
| Suitable for operating system Windows XP (EF003044) | No |
| With hard disc (EF002000) | Yes |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Suitable for operating system Windows 7 (EF008526) | No |
| Wall mounting/direct mounting (EF007020) | Yes |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Front built-in possible (EF007016) | No |
| Suitable for other operating system (EF003048) | Yes |
| Suitable for operating system Windows CE (EF003046) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Suitable for operating system Windows 2003 Server (EF007090) | No |
| IO link master (EF007298) | No |
| Rack-assembly possible (EF007018) | No |
| With floppy disc drive (EF003128) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for KNX (EF003055) | No |
| Suitable for operating system Windows Vista (EF007091) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for LON (EF003017) | No |
| Radio standard Bluetooth (EF007178) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Suitable for safety functions (EF001597) | No |
| Suitable for operating system Windows 8 (EF009923) | No |
| Suitable for operating system Windows 2000 (EF003043) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Suitable for operating system Linux (EF003047) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| With graphic card (EF003130) | Yes |
| Radio standard GSM (EF008524) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| With sound card (EF003131) | No |
| Suitable for operating system Windows 9x (EF003041) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| With other storage media (EF003129) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Suitable for rail mounting (EF003972) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| With optical drive (EF012515) | No |
| Number of free PCIe-slots (EF017219) | 1 |
| Number of HW-interfaces other (EF003027) | 3 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of storage media bays (EF011958) | 2 |
| Processor clock rate (EF011957) | 2.6 GHz |
| Number of HW-interfaces industrial Ethernet (EF003020) | 3 |
| Number of free AGP-slots (EF003133) | 0 |
| Memory capacity hard disc (EF004682) | 0.5 TB |
| Number of HW-interfaces USB (EF003025) | 4 |
| Width (EF000008) | 282 mm |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of free PCMCIA-slots (EF003136) | 0 |
| Number of free PCI-slots (EF003134) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of free ISA-slots (EF003135) | 0 |
| Number of other free slots (EF003137) | 1 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Height (EF000040) | 73 mm |
| Depth (EF000049) | 195 mm |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Max. main memory (EF003123) | 8192 MB |
| Operating temperature (EF002393) | 0 °C |
| Supply voltage DC (EF007534) | 20.4 V |
