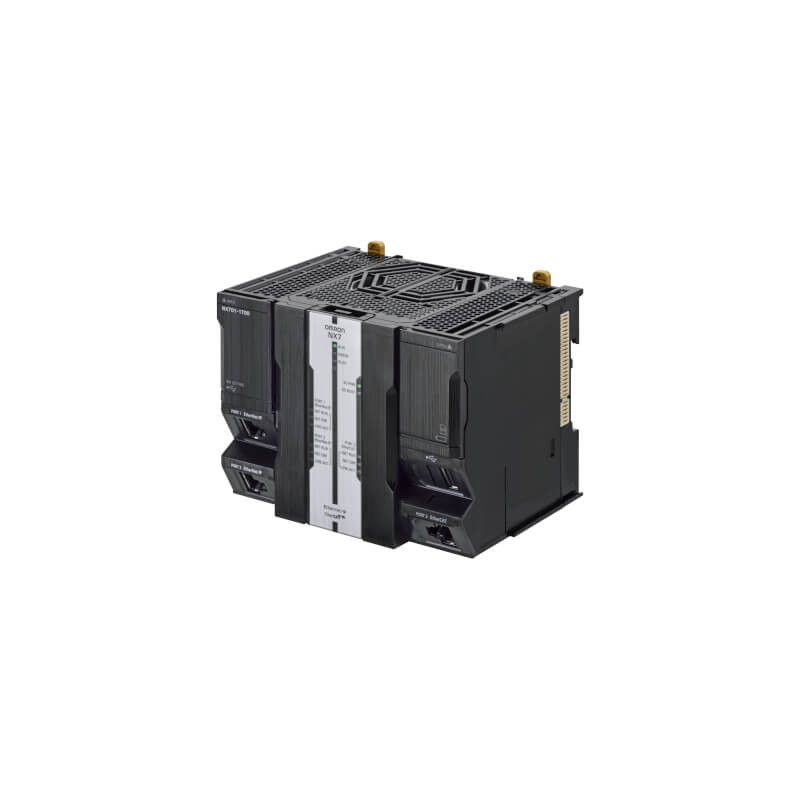

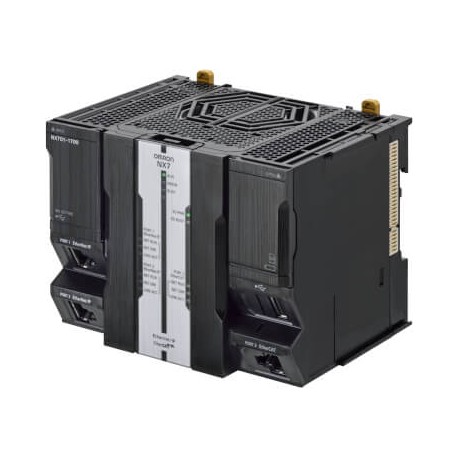

NX701-1600 NX010038F NX7011600 OMRON NX7 Machine Controller 128 Осей
NX701-1600
NX010038F
NX7011600
OMRON
NX7 Machine Controller 128 Осей
Контроллер станка NX7 128 осей
Модуль ЦПУ универсального машинного контроллера серии NX, 80 Мб памяти программ, 256 Мб нехранимой памяти данных, 4 Mб хранимой памяти данных, до 128 осей, 1 x USB2.0, 2 x EtherNet/IP, 1xEtherCAT, 1 x слот для карты SD
Процессор Sysmac NX7, 80 МБ памяти, встроенный EtherCAT (128 сервооосей, всего 512 узлов EtherCAT) и 2 порта EtherNet/IP
Программируемые логические контроллеры (ПЛК) > Модуль центрального процессора ПЛК
Комплексная автоматизация > Машинные контроллеры NX701
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами OMRON
Best sellers
▲Описание
▲Технические характеристики
| Controller functionality | Motion control, OPC-UA, Sequence control |
| Primary task cycle time | 0.125 ms |
| Program memory | 80 MB |
| Variables memory | 260 MB |
| Max. number of synchronous axes | 128 |
| Max. number of axes (incl. virtual) | 128 |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USB |
| Communication option(s) | None |
| Max. number of remote I/O nodes | 512 |
| I/O system | NX I/O Bus |
| Max. number of expansion units | 0 |
| Height | 100 mm |
| Width | 132 mm |
| Depth | 100 mm |
| Weight | 880 g |
Дополнительные принадлежности
| Характеристика | Значение |
|---|---|
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| Model (EF000010) | Modular |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Type of memory (EF002996) | FLASH |
| Radio standard UMTS (EF008525) | No |
| Supporting protocol for EtherCAT (EF017564) | Yes |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Supporting protocol for SERCOS (EF006657) | No |
| IO link master (EF007298) | No |
| Rack-assembly possible (EF007018) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for IEC 60870 (EF016069) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for DNP3 (EF016068) | No |
| Radio standard GSM (EF008524) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for IEC 61850 Ethernet (EF015389) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| System accessory (EF004118) | No |
| Certified for UL hazardous location class III (EF017627) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Radio standard GPRS (EF008523) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| Certified for UL hazardous location class I (EF017622) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Additional program memory possible (EF003029) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Redundancy (EF003156) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Radio standard Bluetooth (EF007178) | No |
| Suitable for safety functions (EF001597) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| With optical interface (EF003028) | No |
| With display (EF000458) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| Supporting protocol for ASI (EF003051) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Number of HW-interfaces other (EF003027) | 1 |
| Memory size (EF002997) | 81920 kByte |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of relay outputs (EF007348) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Width (EF000008) | 132 mm |
| Number of digital inputs (EF001992) | 0 |
| Depth (EF000049) | 100 mm |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of analogue inputs (EF001994) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of digital outputs (EF001993) | 0 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 3 |
| Number of analogue outputs (EF001995) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Processing time (1K, binary operation) (EF003004) | 0.0037 ms |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Height (EF000040) | 100 mm |
