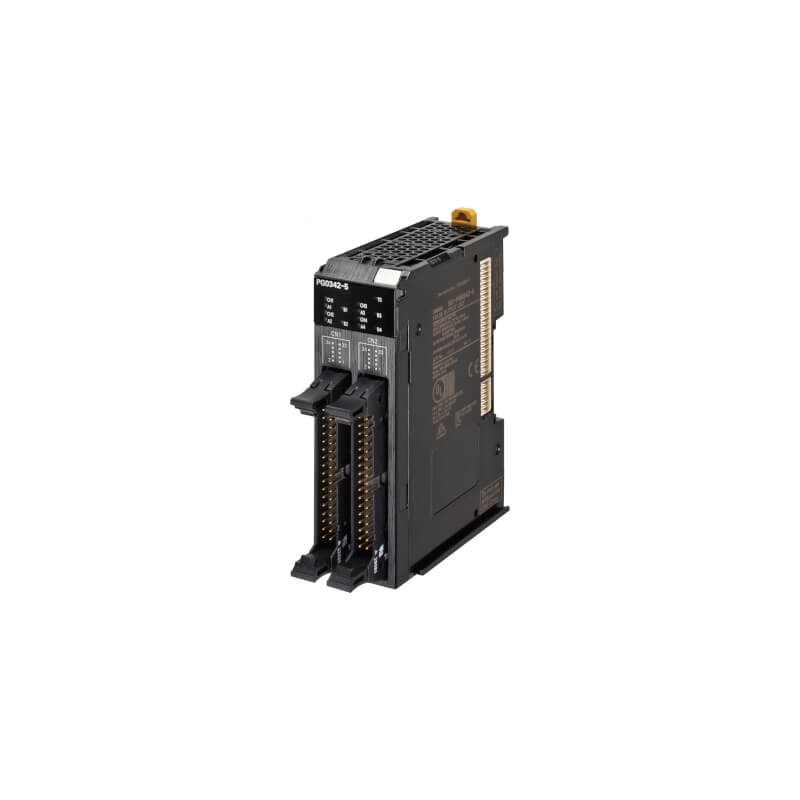

NX-PG0342-5 NX020118B NXPG03425 OMRON Устройство NX 4 импульсные выходы PNP Line-driver Разъем MIL
NX-PG0342-5
NX020118B
NXPG03425
OMRON
Устройство NX - 4 импульсные выходы PNP Line-driver Разъем MIL
Модуль NX - 4 импульсных выхода PNP Линейный драйвер MIL Разъем
Модуль высокоскоростных импульсных выходов для системы ввода/вывода NX, 4 оси, Line Driver, 4 МГц, доп. вых. PNP, для разъемов 2xMIL (не прилагаются)
4 x импульсный выход линейного драйвера, PNP, 4 млн пакетов в секунду, 2 x разъема MIL, ширина 24 мм
Программируемые логические контроллеры (ПЛК) > Полевая шина, децентрализов. периферия - функционал.-технологический модуль
Комплексная автоматизация > NX-серии
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами OMRON
Related products
▲Best sellers
▲Описание
▲Технические характеристики
| I/O system | NX I/O Bus |
| Type of module | Pulse output |
| Digital input type | None |
| Digital output type | Line driver (RS-422), PNP, Voltage pulse |
| Signal processing | Synchronous, Task period prioritized |
| Number of encoder input channels | 0 |
| Max. encoder input frequency | 0 kHz |
| Number of pulse output channels | 4 |
| Max. pulse output frequency | 4000 kHz |
| IO link master | |
| I/O connection type | MIL (plug not included) |
| Number of I/O connectors | 2 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| SIL according to IEC 61508 | None |
| Number of IOV (V+) terminals | 3 |
| Number of IOG (V-) terminals | 3 |
| Degree of protection (IP) | IP20 |
| Height | 100 mm |
| Width | 30 mm |
| Depth | 71 mm |
| Weight | 150 g |
| Характеристика | Значение |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP20 |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Function block access control (EF007213) | No |
| Radio standard UMTS (EF008525) | No |
| Function block affirm push button (EF007214) | No |
| Suitable for counting (EF003248) | No |
| Supporting protocol for EtherCAT (EF017564) | Yes |
| Suitable for weighing (EF003249) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Suitable for SSI (EF003254) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Suitable for CNC (EF003256) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| IO link master (EF007298) | No |
| Suitable for detection absolute value (EF003259) | No |
| Rack-assembly possible (EF007018) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for LON (EF003017) | No |
| Suitable for path controller (EF003262) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Radio standard GSM (EF008524) | No |
| Function block contactless working protection installation (EF007209) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Suitable for multi-axis control (EF003265) | Yes |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Function block restart blockage (EF007212) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Suitable for temperature control (EF008344) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| System accessory (EF004118) | Yes |
| Certified for UL hazardous location class III (EF017627) | No |
| Suitable for welding control (EF003251) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Radio standard GPRS (EF008523) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| Function block 2-hand switching (EF007215) | No |
| Suitable for multi-axis positioning (EF003267) | Yes |
| Suitable for flux measurement (EF003261) | No |
| Certified for UL hazardous location class I (EF017622) | No |
| Suitable for incremental data detection (EF003258) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Suitable for cam controller (EF003263) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Frequency measurement (EF000599) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Contactor control function block (EF007467) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Suitable for NC (EF003253) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Suitable for flying saw (EF003264) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Radio standard Bluetooth (EF007178) | No |
| Suitable for safety functions (EF001597) | No |
| Suitable for single-axis controller (EF003266) | No |
| Function block emergency stop (EF007211) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| With optical interface (EF003028) | No |
| Function block operating mode selection (EF007210) | No |
| Function block automatic reset (EF007208) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Suitable for flux controller (EF003260) | No |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| Suitable for single-axis positioning (EF003268) | Yes |
| Supporting protocol for ASI (EF003051) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Suitable for pressure control (EF003252) | No |
| Suitable for electronic positioning (EF003255) | Yes |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Number of HW-interfaces other (EF003027) | 1 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Width (EF000008) | 30 mm |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Depth (EF000049) | 89.8 mm |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Height (EF000040) | 100 mm |
| Number of functions (EF003244) | 4 |
| Supply voltage DC (EF007534) | 20.4 V |
