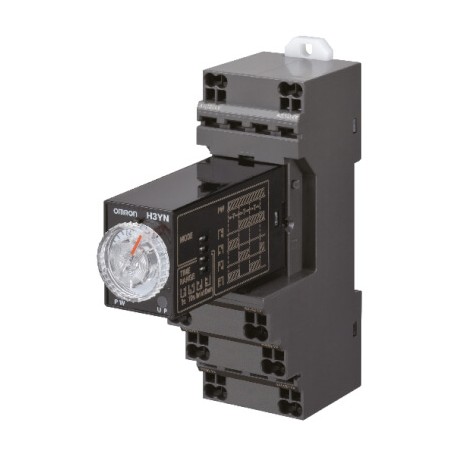

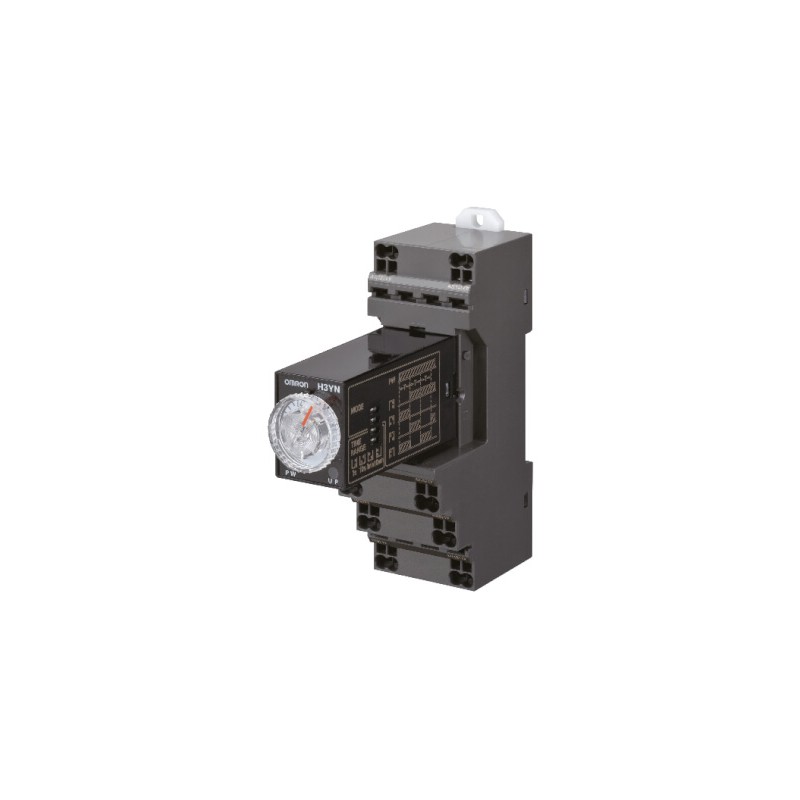

OMRON H3YN-41 DC12 H3YN8031R H3YN41DC12OMI - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

H3YN-41 DC12 H3YN8031R H3YN41DC12OMI OMRON 4PDT 0.1 min-10h 12vdc

Reference: H3YN-41 DC12

Code: H3YN8031R

Catalog Number: H3YN41DC12OMI

Manufacturer: OMRON

Description:

4PDT 0.1 min-10h 12vdc
4PDT 0.1min-10h 12Vdc
Timer, plug-in, 14-pin, multifunction, 0.1m to 10h long time range model, 4PDT, 12 VDC supply voltage

Categories:

  • Relays > Timer relay
  • OMRON > Timers > H3Y

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 604,19 €

Unit Price: 60,419 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Features

Compact, Multi-function Timers with Plug-in socket

  • The Plug-in socket with Push-in plus technology, PYF-__-PU is available for easy wiring.
  • Easy replacement and reduces your maintenance time.
  • Space saving by Slim design 21.5 mm width.
  • Large transparent time setting knob facilitates time setting.

Ordering information

Operating modes

Control output

Supply voltage

Order code

Short-time range (0.1 s to 10 min)

Long-time range (0.1 m to 10 h)

On-delay, Interval,
Flicker OFF-start, Flicker ON Start

DPDT

24 VAC

H3YN-2-B AC24

H3YN-21-B AC24

48 VDC

H3YN-2-B DC48

H3YN-21-B DC48

24 VDC

H3YN-2-B DC24

H3YN-21-B DC24

12 VDC

H3YN-2-B DC12

H3YN-21-B DC12

100 to 120 VAC

H3YN-2-B AC100-120

H3YN-21-B AC100-120

200 to 230 VAC

H3YN-2-B AC200-230

H3YN-21-B AC200-230

100 to 110 VDC

H3YN-2-B DC100-110

H3YN-21-B DC100-110

125 VDC

H3YN-2-B DC125

H3YN-21-B DC125

4PDT

24 VAC

H3YN-4-B AC24

H3YN-41-B AC24

48 VDC

H3YN-4-B DC48

H3YN-41-B DC48

24 VDC

H3YN-4-B DC24

H3YN-41-B DC24

12 VDC

H3YN-4-B DC12

H3YN-41-B DC12

100 to 120 VAC

H3YN-4-B AC100-120

H3YN-41-B AC100-120

200 to 230 VAC

H3YN-4-B AC200-230

H3YN-41-B AC200-230

100 to 110 VDC

H3YN-4-B DC100-110

H3YN-41-B DC100-110

125 VDC

H3YN-4-B DC125

H3YN-41-B DC125

4PDT, Twin Contact

24 VDC

H3YN-4-Z-B DC24

H3YN-41-Z-B DC24

Note:There are other models with Screw socket compatibility available on request (grey version). Please contact your Omron representative for special request.

Accessories

Plug-in Socket

Type

Timer

Order code

Screwless socket with Push-in plus technology

H3YN-2-B/H3YN-21-B

PYF-08-PU-L

H3YN-4-B/H3YN-41-B/H3YN-41-Z-B

PYF-14-PU-L

Hold-down clip

Type

Order code

PYF-08-PU-L/PYF-14-PU-L

Y92H-3 (2 pcs in a pack)

Specifications

Item

H3YN-2-B/H3YN-21-B

H3YN-4-B/H3YN-41-B/H3YN-41-Z-B

Time ranges

0.1 s to 10 min (1 s, 10 s, 1 min, or 10 min max. selectable)

0.1 min to 10 h (1 min, 10 min, 1 h, or 10 h max. selectable)

Rated supply voltage1

24, 100 to 120, 200 to 230 VAC (50/60 Hz), 12, 24, 48, 100-110, 125 VDC

Pin type

Plug-in

Operating mode

ON-delay, interval, flicker OFF-start, or flicker-ON start selectable by DIP switch

Operating voltage range

85% to 110% of rated supply voltage (12 VDC: 90% to 110% of rated supply voltage)2

Reset voltage

10% max. of rated supply voltage

Control outputs

DPDT:
5 A at 250 VAC, resistive load (cosφ = 1)
The minimum applicable load is 1 mA at 5 VDC (P reference value).
Contact materials: Ag

4PDT:
3 A at 250 VAC, resistive load (cosφ = 1)
H3YN-4-B/-41-B series: The minimum applicable load is 1 mA at 1 VDC (P reference value)
H3YN-4-Z/-41-Z-B series: The minimum applicable load is 1 mA at 1 VDC (P reference value)
Contact materials: Au-clad + Ag-alloy

Accuracy of operating time

±1% FS max. (1 s range: ±1%±10 ms max.)

Setting error

±10% ±50 ms FS max.

Reset time

Min. power-opening time: 0.1 s max. (including halfway reset)

Influence of voltage

±2% FS max.

Influence of temperature

±2% FS max.

Ambient temperature

Operating: −10°C to 55°C (with no icing)
Storage: −25°C to 65°C (with no icing)

Degree of protection

IP40 (Terminal screw sections are excluded.)

Size in mm (H × W × D)

28 × 21.5 × 52.6


1.Refer to Safety Precautions for All Times when combining the timer with an AC 2-wire proximity sensor.
2.When using the H3YN in any place where the ambient temperature is more than 50°C, supply 90% to 110% of the rated voltages (12 VDC: 95% to 110% of the rated voltage).

ETIM for 671601 Relays (EC001439)

Feature nameRelay technology category according to IEC 61810-7 (EF016748)
Feature valueRT I
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameType of electric connection (EF003961)
Feature valueFlat plug-in connection
Feature nameFunction delay on de-energization (EF003401)
Feature valueNo
Feature nameSuitable as remote control (EF003362)
Feature valueNo
Feature nameOutputs, reversible delayed/undelayed (EF006988)
Feature valueNo
Feature nameFunction pulse shaping (EF003403)
Feature valueNo
Feature nameComplete with socket (EF003359)
Feature valueYes
Feature nameFunction star-delta (EF003380)
Feature valueNo
Feature nameFunction floating contact on energization (EF003378)
Feature valueNo
Feature nameClock function, starting with pause, variable (EF003365)
Feature valueNo
Feature nameFunction flashing, starting with pulse, fixed time (EF003364)
Feature valueNo
Feature nameFunction delay-on energization (EF003374)
Feature valueNo
Feature nameWith semiconductor output (EF003373)
Feature valueNo
Feature nameFunction floating contact on de-energization (EF003402)
Feature valueNo
Feature nameFunction flashing, starting with pause, fixed time (EF003363)
Feature valueNo
Feature nameClock function, starting with pulse, variable (EF003366)
Feature valueNo
Feature namePluggable on auxiliary contact block (EF006952)
Feature valueNo
Feature nameRemote operation possible (EF003361)
Feature valueNo
Feature nameNumber of outputs, delayed, normally open contact (EF006839)
Feature value0
Feature nameNumber of outputs, undelayed, normally open contact (EF006836)
Feature value0
Feature nameNumber of outputs, delayed, change-over contact (EF006840)
Feature value4
Feature nameNumber of outputs, delayed, normally closed contact (EF006838)
Feature value0
Feature nameNumber of outputs, undelayed, change-over contact (EF006837)
Feature value0
Feature nameWidth (EF000008)
Feature value21.5 mm
Feature nameNumber of outputs, undelayed, normally closed contact (EF006835)
Feature value0
Feature nameHeight (EF000040)
Feature value28 mm
Feature nameDepth (EF000049)
Feature value52.6 mm
Feature nameTime range (EF003384)
Feature value6 s
Feature nameRated control supply voltage DC (EF003980)
Feature value12 V
