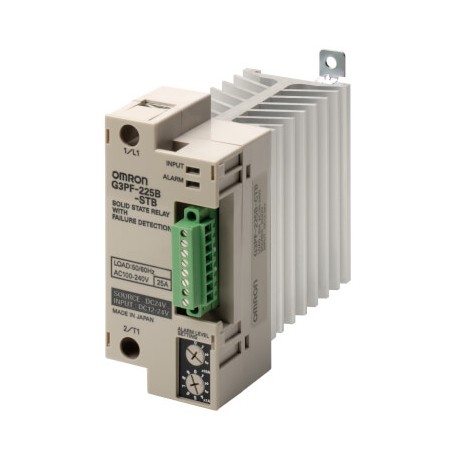

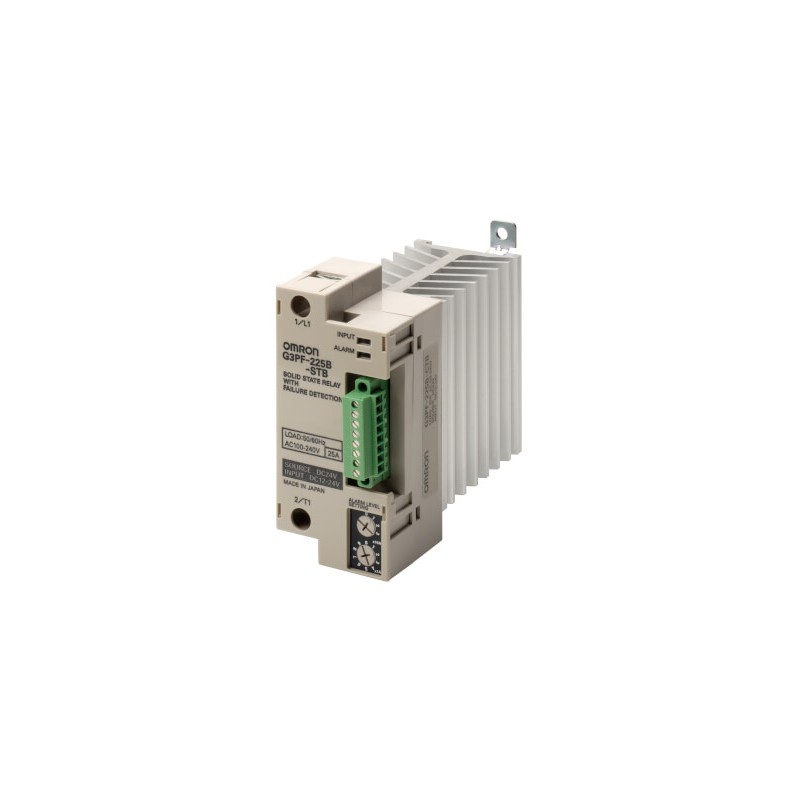

G3PF-235B 24VDC G3PF0006H G3PF235BDC24 OMRON 35A 240VAC 1 Выход Винта

100 to 240 VAC

2 to 25 A

M3 terminals

1 output (Heater Burnout Detection,
SSR Short-circuit Failure Detection, Common)

100×45×110

G3PF-225B

2 to 35 A

100×55×130

G3PF-235B

200 to 480 VAC

2 to 25 A

100×45×110

G3PF-525B

2 to 35 A

100×55×130

G3PF-535B

100 to 240 VAC

2 to 25 A

Screwless clamp terminals (detachable)

2 outputs (Heater Burnout Detection,
SSR Short-circuit Failure Detection)

100×45×117

G3PF-225B-CTB

2 to 35 A

100×55×137

G3PF-235B-CTB

200 to 480 VAC

2 to 25 A

100×45×117

G3PF-525B-CTB

2 to 35 A

100×55×137

G3PF-535B-CTB

Rated load voltage

100 to 240 VAC (50/60 Hz)

200 to 480 VAC (50/60 Hz)

Operating voltage range

75 to 264 VAC, 50/60 Hz

180 to 528 VAC, 50/60 Hz

Applicable load current2

25 A (at 40°C)

35 A (at 40°C)

25 A (at 40°C)

35 A (at 40°C)

Minimum load current

2 A

Inrush current resistance

220 A (60 Hz, 1 cycle)

430 A (60 Hz, 1 cycle)

220 A (60 Hz, 1 cycle)

430 A (60 Hz, 1 cycle)

Operate time

1/2 of load power source cycle + 1 ms max.

Release time

1/2 of load power source cycle + 1 ms max.

Main circuit

Output ON voltage drop

1.6 V (RMS) max.

1.8 V (RMS) max.

Leakage current

10 mA max. (at 200 VAC)

20 mA max. (at 480 VAC)

Alarm output

Output ON voltage drop

1.5 V max.

Leakage current

1 mA max.

Isolation resistance

100 MΩ min. (at 500 VDC)

Dielectric strength

2,500 VAC, 50/60 Hz for 1 min.

Vibration resistance

Destruction: 10 to 55 to10 Hz, 0,35-mm single amplitude (0,7-mm double amplitude)

Shock resistance

Destruction: 294 m/s²

Ambient storage temperature

−30 to 70°C (with no icing or condensation)

Ambient operating temperature

−20 to 60°C (with no icing or condensation)

Ambient operating humidity

45% to 85%

Weight

Approx. 400 g

Approx. 630 g

Approx. 400 g

Approx. 630 g
