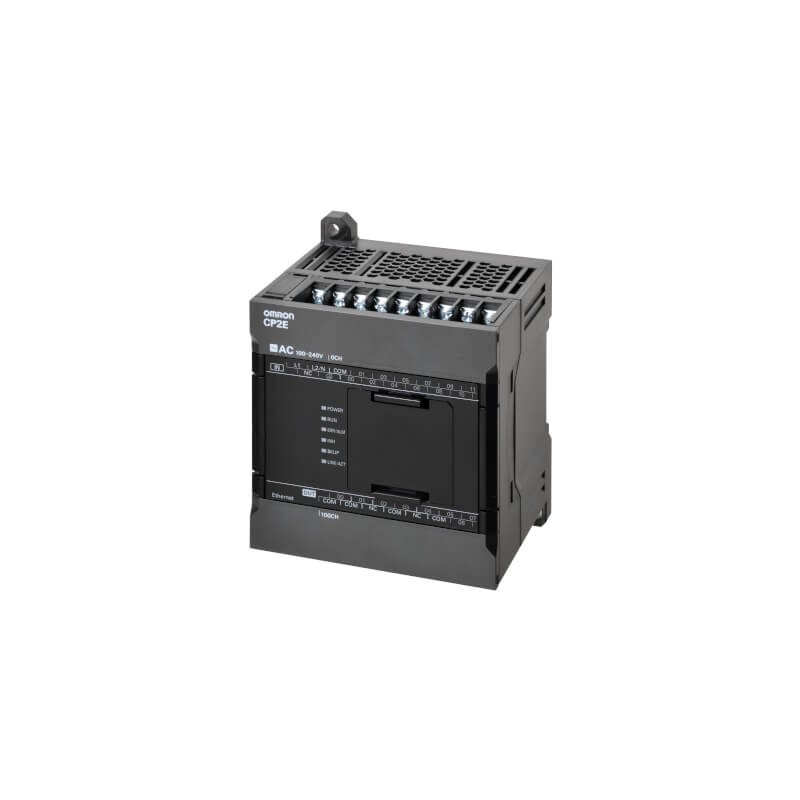

CP2E-N20DT1-D CP2W0022E CP2EN20DT1D OMRON CP2E серия компактных ПЛК тип сетевой 12-Ди, 8DO PnP выход питание..
CP2E-N20DT1-D
CP2W0022E
CP2EN20DT1D
OMRON
CP2E серия компактных ПЛК - тип сетевой; 12-Ди, 8DO; PnP выход; питание = 24В; 10 kStep памяти программы
Контроллер CP2E-N, 12 вх., 8 вых. (PNP), питание 24 В=, встроенный порт Ethernet, 1 опц. порт, нет возможности расширения; 10К шагов прогр., 16К слов данных
Компактный ПЛК серии CP2E - сетевого типа; 12 DI, 8DO; Вывод PNP; Электропитание 24 В постоянного тока; Память программы 10 kStep
Программируемые логические контроллеры (ПЛК) > Модуль центрального процессора ПЛК
Системы управления > CP2E CPU
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами OMRON
Best sellers
▲Описание
▲Технические характеристики
| Supply voltage type | DC |
| Number of digital inputs | 12 |
| Input type | PNP/NPN |
| Number of digital outputs | 8 |
| Output type | PNP |
| Program capacity | 20 K steps |
| Data memory capacity | 16 K words |
| Logic execution time | 0.23 µs |
| Communication port(s) | Ethernet TCP/IP |
| Number of Ethernet ports | 1 |
| Number of USB ports | 0 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Number of encoder input channels | 6 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 2 |
| Max. pulse output frequency | 100 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real-time clock | |
| Analog option boards | |
| Max. number of analog I/O channels | 4 |
| Max. number of local I/O points | 20 |
| Max. number of expansion units | 0 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | -20-60 °C |
| Height | 90 mm |
| Width | 86 mm |
| Depth | 80 mm |
| Weight | 0 g |
Дополнительные принадлежности
| CP1W-ADB21 | I/O option board (only CP1L-EL/EM port 1 or 2), 2 x analog inputs 0 to 10 V, resolution 1/4000 or 0 to 20 mA, resolution 1:2000 | |
| CP1W-CIF01 | CP1 RS-232C (15 m max.) serial communication option board | |
| CP1W-CIF11 | CP1 RS422/485 (50 m max.) serial communication option board | |
| CP1W-CIF12-V1 | CP1 RS422/485 (isolated 500 m max.) serial communication option board | |
| CP1W-CIF41 | CP1 Ethernet communications option, 1 x RJ45 socket | |
| CP1W-DAB21V | I/O option board (only CP1L-EL/EM port 1 or 2), 2 x analog outputs 0 to 10 V, resolution 1:4000 | |
| CP1W-MAB221 | I/O option board (only CP1L-EL/EM port 1 or 2), 2 x analog inputs 0 to 10 V, resolution 1:4000 or 0 to 20 mA, resolution 1:2000, 2 x analog outputs 0 to 10 V, resolution 1:4000 | |
| CP2W-BAT02 | CP2-series Battery - Optional | |
| CP2W-CIFD1 | CP2-series Serial Option board 2 x RS-232 ports | |
| CP2W-CIFD2 | CP2-series Serial Option board 1 x RS-232, 1 x RS-485 ports | |
| CP2W-CIFD3 | CP2-series Serial Option board 2 x RS-485 ports | |
| CXONE-LT01-EV4 | CX-One Lite v4.x software, for Windows 2000/XP/Vista, single-user licence only, (requires CDs, CXOne-LTCD-EV4), limited to program the CPx PLC platform | |
| XS6W-6LSZH8SS200CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 2 m | |
| XS6W-6LSZH8SS300CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 3 m |
| Характеристика | Значение |
|---|---|
| Model (EF000010) | Compact |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Type of memory (EF002996) | FLASH |
| Radio standard UMTS (EF008525) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| IO link master (EF007298) | No |
| Rack-assembly possible (EF007018) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for IEC 60870 (EF016069) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for DNP3 (EF016068) | No |
| Radio standard GSM (EF008524) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for IEC 61850 Ethernet (EF015389) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| System accessory (EF004118) | No |
| Certified for UL hazardous location class III (EF017627) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Radio standard GPRS (EF008523) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| Certified for UL hazardous location class I (EF017622) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | Yes |
| Wall mounting/direct mounting (EF007020) | Yes |
| Front built-in possible (EF007016) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Additional program memory possible (EF003029) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Redundancy (EF003156) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Radio standard Bluetooth (EF007178) | No |
| Suitable for safety functions (EF001597) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| With optical interface (EF003028) | No |
| With display (EF000458) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| Supporting protocol for ASI (EF003051) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Memory size (EF002997) | 116 kByte |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of relay outputs (EF007348) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Width (EF000008) | 86 mm |
| Number of digital inputs (EF001992) | 12 |
| Depth (EF000049) | 80 mm |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of analogue inputs (EF001994) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of digital outputs (EF001993) | 8 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 1 |
| Number of analogue outputs (EF001995) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Processing time (1K, binary operation) (EF003004) | 0.23 ms |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Height (EF000040) | 90 mm |
| Max. number of time switches (EF007349) | 256 |
| Supply voltage DC (EF007534) | 20.4 V |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON RU.pdf | 70 Mbytes |
|
