OBO BETTERMANNEGS device systems - OBO BETTERMANNSTD-D0C SRO1 6120348 OBO BETTERMANN ELECTRICAL OUTLET 0º, SIMPLE

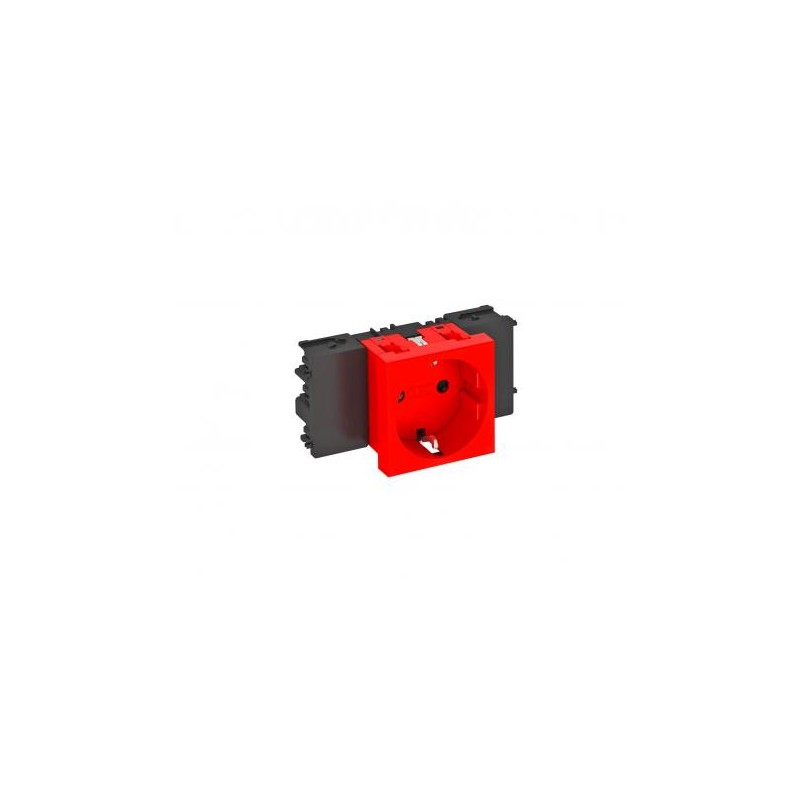

OBO BETTERMANN STD-D0C SRO1 6120348 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

STD-D0C SRO1 6120348 OBO BETTERMANN ELECTRICAL OUTLET 0º, SIMPLE

Reference: STD-D0C SRO1

Code: 6120348

Manufacturer: OBO BETTERMANN

Description:

ELECTRICAL OUTLET 0º, SIMPLE
Electrical outlet 0°, simple grounding, Connect 45 250V, 10/16A red signal 3001 Polycarbonate, PC
Socket 0°, Connect 45, protective contact, single. Protective contact socket with connection to side, Single 0°, with increased touch protection, with screwless terminals, 2-pin, 16 A, 250 V~, with connection terminals to IEC 60884-1, suitable for the installation in Rapid 45 device installation trunking system. For installation in Rapid 45 trunking, device installation trunking, service poles, underfloor systems and desk boxes.

Categories:

  • OBO BETTERMANN > EGS device systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 22,18 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ApprovalsVDE
Closableno
CO2 Footprint (GWP) Cradle-to-Gate0,258 kg CO2e / 1 Piece
Codingno
ColourSignal red; RAL 3001
Connection typeScrewless terminal
CoverCentral plate
Depth42 mm
Dimension250V, 10/16A
Ejection mechanismno
Error current protectionno
Fastening typeLock
For more difficult conditions (according to VDE)no
Halogen-freeyes
Height45 mm
Hinged coverno
increased touch protectionyes
Insulated installationno
Labelling panelno
MaterialPolycarbonate
Mounting typeDevice installation duct
Nominal current16 A
Nominal voltage250 V
Number of poles2
Number of units1
Operating temperature, max.40 °C
Operating temperature, min.-5 °C
Power reserveyes
Printed label/codingWithout printing
Protection ratingOther
Rotated central insertno
Socket angle0°
Socket versionProtective contact
Special power supplyWithout special power supply
Surface versionMatt
Surge protectionno
Transparentno
Version forSingle 0°
Warning lightno
Width86 mm
With fine-wire fuseno
With functional lightingno
With on/off switchno
With orientation lightingno

ETIM for 6120348 Domestic wiring accessories and controls (EC000125)

Feature nameModel (EF000010)
Feature valueSocket outlet CEE 7/3 (type F)
Feature nameWith signal lamp (EF000198)
Feature valueNo
Feature nameNumber of modules (module system) (EF009573)
Feature value0
Feature nameNumber of socket outlets switchable (EF008814)
Feature value0
Feature nameImprint/indication (EF003823)
Feature valueNone
Feature nameConnection type (EF000124)
Feature valueScrewless terminal
Feature nameWith hinged lid (EF000117)
Feature valueNo
Feature nameWith enhanced contact protection (EF000389)
Feature valueYes
Feature nameLabel space/information surface (EF001035)
Feature valueNo
Feature nameColour (EF000007)
Feature valueRed
Feature nameRAL-number (similar) (EF003882)
Feature value3001
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameLockable (EF000113)
Feature valueNo
Feature nameEject-mechanism (EF001051)
Feature valueNo
Feature nameInsulated mounting (EF001588)
Feature valueNo
Feature nameWith function lighting (EF008861)
Feature valueNo
Feature nameWith orientation lighting (EF008862)
Feature valueNo
Feature nameOver voltage protection (EF001332)
Feature valueNo
Feature nameFault current protection (EF001333)
Feature valueNo
Feature nameWith miniature fuse (EF006571)
Feature valueNo
Feature nameSpecial power supply (EF001334)
Feature valueEV006426
Feature nameMounting method (EF000003)
Feature valueTrunking mounted
Feature nameType of fastening (EF002442)
Feature valueSnap mounting (engagement)
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameMaterial quality (EF001257)
Feature valueOther
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameWith on/off switch (EF000488)
Feature valueNo
Feature nameRotated central insert (EF001331)
Feature valueNo
Feature nameNominal current (EF000001)
Feature value16 A
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueOther
Feature nameDevice width (EF008808)
Feature value86 mm
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameDevice depth (EF008810)
Feature value42 mm
