7408854 OBO BETTERMANN UNIT P/MECAN T. ABAT GES R2 Cu

Reference: GES R2 Cu

Code: 7408854

Manufacturer: OBO BETTERMANN

Description:

UNIT P/MECAN T. ABAT GES R2 Cu

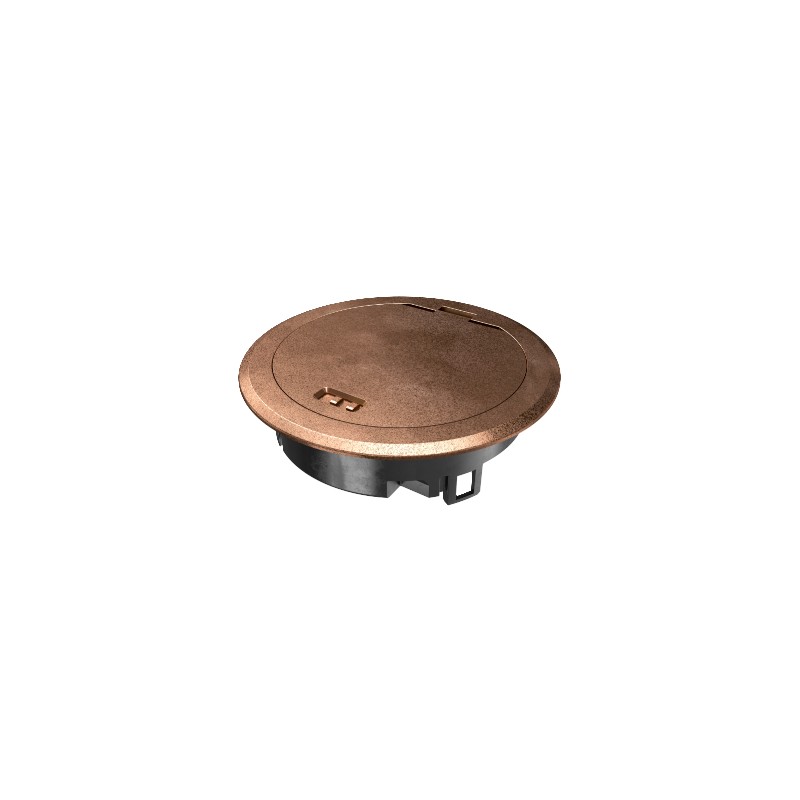

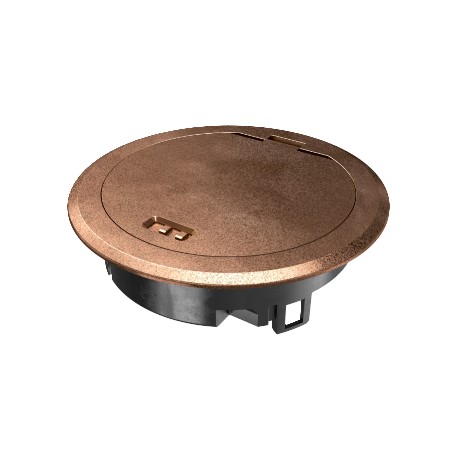

Service outlet with hinged cover and locking slider, GES R2, old copper. Service outlet with hinged cover and locking slider for GES R2 floor socket for direct installation in the MT R2 installation socket.When closed, the floor socket can be wet-cleaned.

Categories:

  • Sub-floor systems > Installation box for underfloor-installation
  • OBO BETTERMANN > UFS Underfloor piping systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 135,37 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ApprovalsVDE
Cable outlet versionSwivellable cord outlet
CO2 Footprint (GWP) Cradle-to-Gate0,5215 kg CO2e / 1 Piece
External diameter140 mm
Floor careWet
Floor covering protection frameyes
Installation depth85 mm
MaterialDie-cast zinc
Opening mechanismLocking slider
Protection rating (IP) when unusedIP66
Protection rating (IP) when usedIP20
Protection rating IK codeIK10
StandardEN 50085-2-2
Suitable for cavity floor installationyes
Suitable for raised floor installationyes
Suitable for underfloor ductsno
Suitable for wet careyes
SurfaceCopper-plated
Version forRound
Vertical load, large areato 15,000 N
Vertical load, small areato 3,000 N
With floor covering recessno
