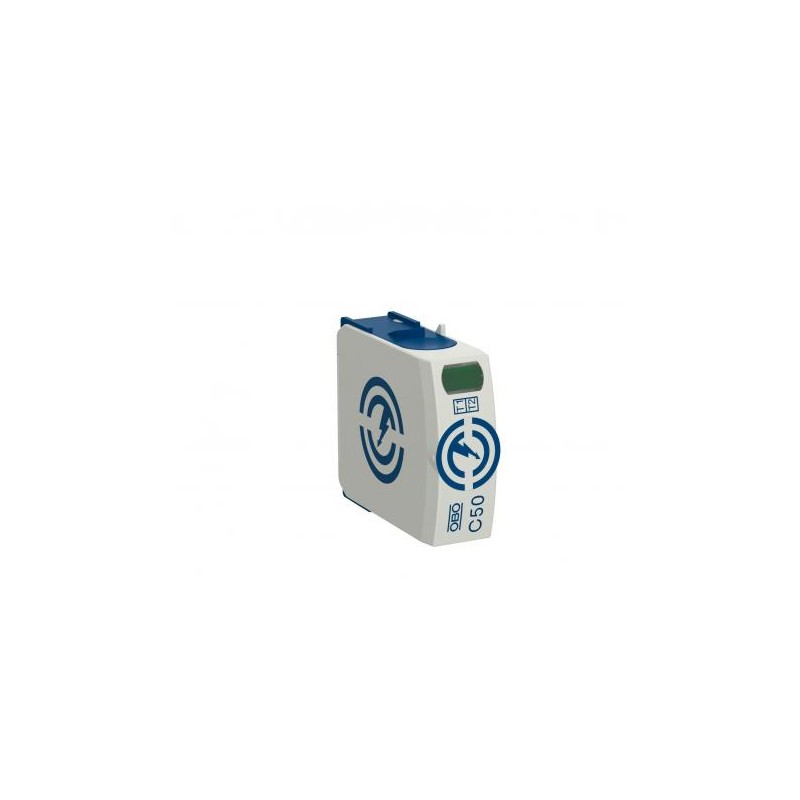

OBO BETTERMANN C50-0-255 5095609 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

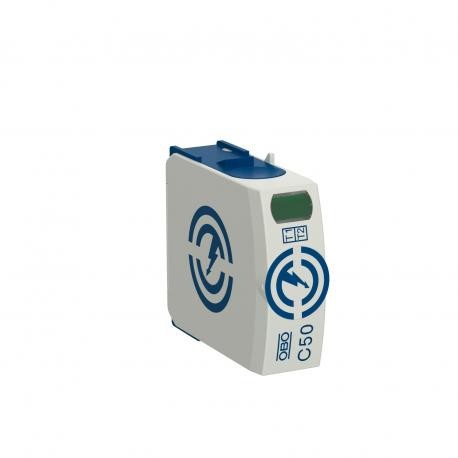

C50-0-255 5095609 OBO BETTERMANN VIA OF SPARKS NPE C50-0-255

Reference: C50-0-255

Code: 5095609

Manufacturer: OBO BETTERMANN

Description:

VIA OF SPARKS NPE C50-0-255
Spark path NPE C50-0-255, active part 255V,
Active part NPE - C50. NPE active part, combined lightning current arrester type 1+2• For equipotential lightning protection connection according to VDE 0185-305 (IEC 62305)• Lightning current discharge capacity up to 50 kA (10/350) in total• Modular plug-in arrester with disconnector device and visual status display• Hold function with vibration protection and voltage coding• Plastic according to UL 94 V-0* Complete = Active part and socket

Categories:

  • Earthing, lightning and surge protection > Combined arrester for power supply systems
  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 59,22 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Lightning current combination arrestor, type 2

• For the equipotential bonding of lightning current to VDE 0185-305 (IEC 62305)
• Lightning current discharge capacity of 12.5 kA (10/350) per pole and up to 50 kA (10/350) in total
• Modular, plug-in arrestor with dynamic cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Halogen-free plastic (UL 94 V-0)
• The remote signalling (FS) variants have a potential-free changeover contact for remote signalling

Application: Lightning current equipotential bonding for buildings of class III and IV.

ETIM for 5095609 Earthing, lightning and surge protection (EC001457)

Feature nameSystem configuration TN-C-S (EF009933)
Feature valueYes
Feature nameSystem configuration TN-S (EF009930)
Feature valueYes
Feature nameSystem configuration TT (EF009931)
Feature valueYes
Feature nameNumber of poles (EF001391)
Feature value1
Feature nameLightning impulse current (10/350 µs) (EF000421)
Feature value50 kA
Feature nameMax. continuous voltage AC (EF004198)
Feature value255 V
Feature nameVoltage protection level (EF003525)
Feature value1.5 kV
Feature nameFollow current extinguishing capability (EF004193)
Feature value0.1 kA
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
Feature nameConstruction size (EF002566)
Feature value1 modular spacing
Feature nameMax. conductor cross section solid (solid, stranded) (EF008827)
Feature value35 mm²
Feature nameMax. conductor cross section flexible (fine-strand) (EF008828)
Feature value35 mm²
Feature nameSignalling at the device (EF004241)
Feature valueOptic
Feature nameIntegrated backup fuse (EF008797)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
