OBO BETTERMANNTBS Transient and lightning protection systems - OBO BETTERMANN5095600 OBO BETTERMANN VIA SPARK-C20-0-255

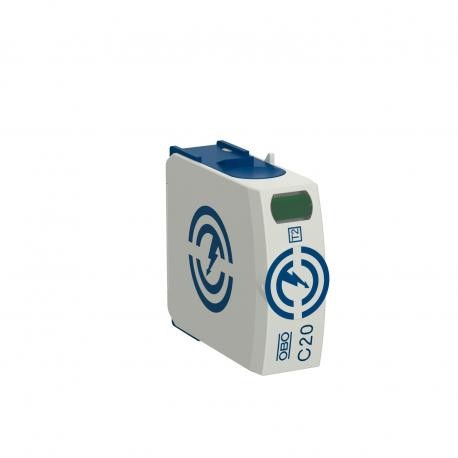

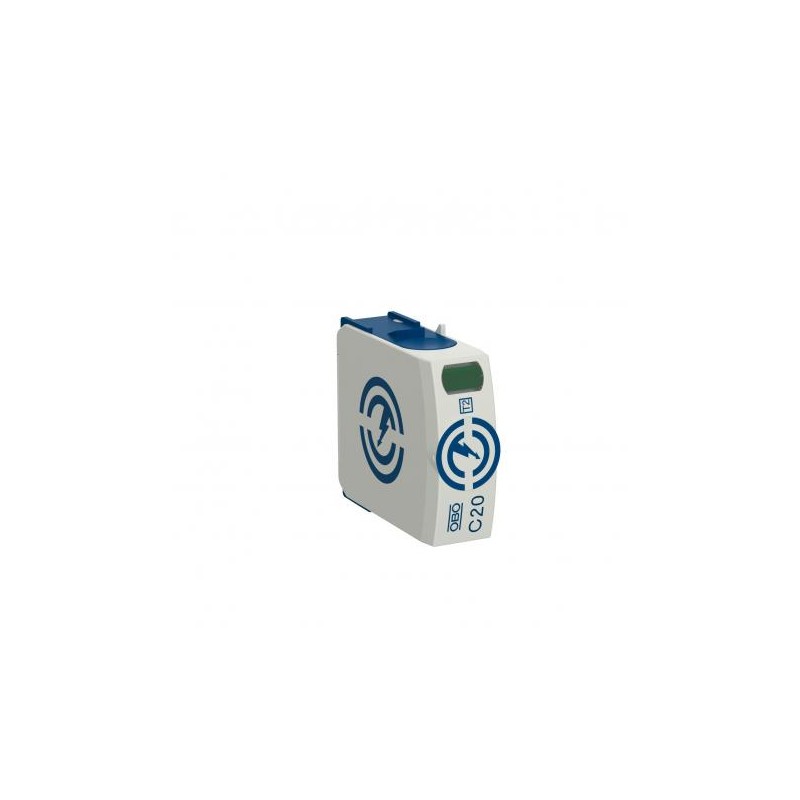

OBO BETTERMANN C20-0-255 5095600 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

5095600 OBO BETTERMANN VIA SPARK-C20-0-255

Reference: C20-0-255

Code: 5095600

Manufacturer: OBO BETTERMANN

Description:

VIA SPARK-C20-0-255
Plug-in arrester C20. N-PE surge arrester, type 2• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)• Discharge capacity to 40 kA (8/20) per pole through high-performance varistors• Modular connectable arrester with dynamic cut-off unit and visual status display • Locking mechanism with vibration protection and voltage keying • Plastic (UL 94 V-0)Application: Equipotential bonding in main and sub-distributors.

Categories:

  • Earthing, lightning and surge protection > Surge protection device for power supply systems
  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 45,70 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ApprovalsVDE, KEMA, UL, ÖVE
Blow-outno
CO2 Footprint (GWP) Cradle-to-Gate0,2585 kg CO2e / 1 Piece
Dimension255V
Follow current quenching capacity (eff) [N-PE]0,1 kA
Housing material surge protection componentsPA UL 94 V-0
Installation typeOn basic element
Integrated back-up fuseno
Maximum continuous voltage (N-PE)255 V
Maximum continuous voltage AC255 V
Maximum discharge current (8/20 μs)40 kA
Maximum discharge current (8/20 μs) [N-PE]60 kA
Minimum distance1,5 mm
Network formOther
Nominal discharge current (8/20 µs)20 kA
Nominal discharge current (8/20 µs) [N-PE]40 kA
Nominal voltage AC (50/60 Hz)230 V
Operating temperature, max.80 °C
Operating temperature, min.-40 °C
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Pole number1
Pole versionN/PE
Protection ratingIP20
Remote signallingno
Short-circuit resistantyes
Signalling on deviceVisual
SPD to EN 61643-11Type 2
SPD to IEC 61643-1Class II
SPD to UL 1449Type 4
Switching power AC230 V; 0,5 A
Switching power DC230 V; 0,1 A / 75 V; 0,5 A
Test class, type 2yes
Torque4 Nm
TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms1200 V
