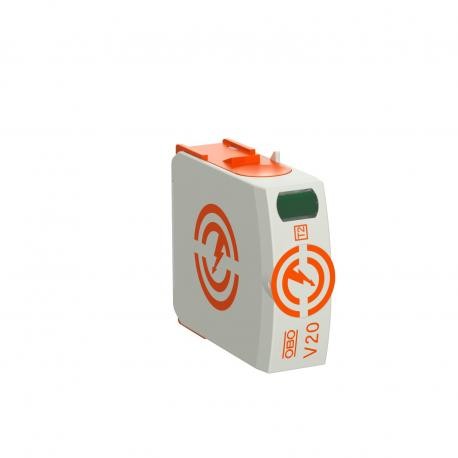

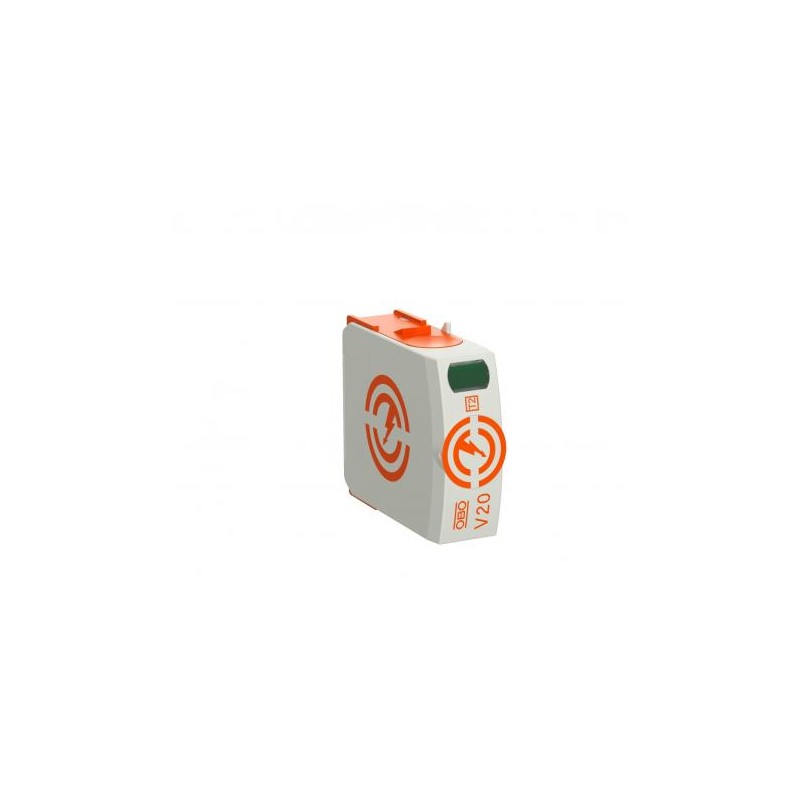

OBO BETTERMANN V20-0-440 5095370 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

5095370 OBO BETTERMANN DOWNLOADER T. 2 V20-0-440

Reference: V20-0-440

Code: 5095370

Manufacturer: OBO BETTERMANN

Description:

DOWNLOADER T. 2 V20-0-440
Plug-in arrester V20 440 V. Surge arrester, type 2 • For surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44) • Discharge capacity to 40 kA (8/20) per pole through high-performance varistors • Modular, plug-in arrester with dynamic cut-off unit and visual status display • Locking mechanism with vibration protection and voltage keying • Plastic (UL 94 V-0)

Categories:

  • Earthing, lightning and surge protection > Surge protection device for power supply systems
  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 36,53 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ApprovalsUL
Blow-outno
CO2 Footprint (GWP) Cradle-to-Gate0,1499 kg CO2e / 1 Piece
Dimension440V
Housing material surge protection componentsPA UL 94 V-0
Installation typeOn basic element
Integrated back-up fuseno
Maximum continuous voltage (L-N)440 V
Maximum continuous voltage AC440 V
Maximum discharge current (8/20 μs)40 kA
Maximum discharge current (8/20 μs) [L-N]40 kA
Minimum distance1,5 mm
Network formOther
Nominal discharge current (8/20 µs)20 kA
Nominal discharge current (8/20 µs) [L-N]20 kA
Nominal voltage AC (50/60 Hz)400 V
Operating temperature, max.80 °C
Operating temperature, min.-40 °C
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Pole number1
Pole version1
Protection level [L-N]≤2
Protection ratingIP20
Remote signallingno
Short-circuit resistance for max. mains-side overcurrent protection50 kA eff
Short-circuit resistantyes
Signalling on deviceVisual
SPD to EN 61643-11Type 2
SPD to IEC 61643-1Class II
SPD to UL 1449Type 4
Test class, type 2yes
