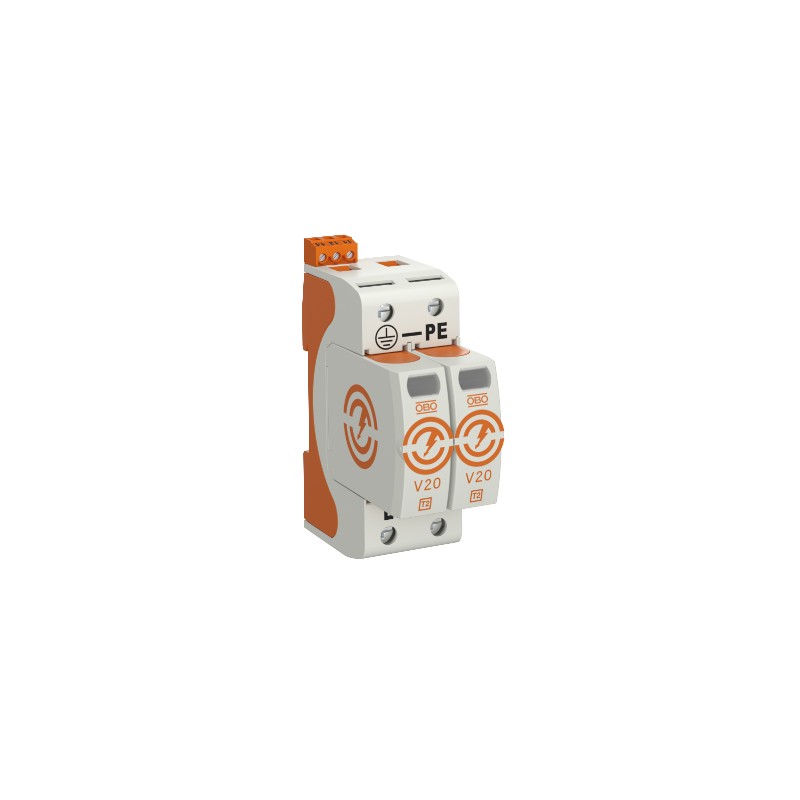

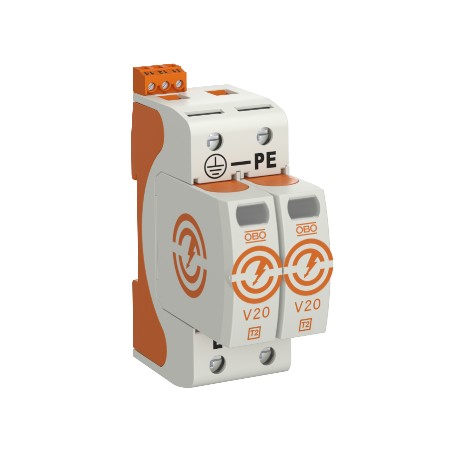

OBO BETTERMANN V20-2+FS-385 5095302 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

5095302 OBO BETTERMANN DOWNLOADER T. 2 V20-2+FS-385

Reference: V20-2+FS-385

Code: 5095302

Manufacturer: OBO BETTERMANN

Description:

DOWNLOADER T. 2 V20-2+FS-385
Surge arrester V20, 2-pole with remote signalling, 385 V. Surge arrester, type 2• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)• Discharge capacity to 40 kA (8/20) per pole through high-performance varistors • Modular connectable arrester with cut-off unit and visual status display • Locking mechanism with vibration protection and voltage keying • Plastic to UL 94 V-0• The remote signalling variants (FS) have a potential-free changeover contact for remote signallingApplication: Equipotential bonding in main and sub-distributions.

Categories:

  • Earthing, lightning and surge protection > Surge protection device for power supply systems
  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

ApprovalsVDE, KEMA, UL, ÖVE
Arrester surge current (8/20 µs) [total]80 kA
Blow-outno
CO2 Footprint (GWP) Cradle-to-Gate1,1926 kg CO2e / 1 Piece
Conductor cross-section, flexible (fine-wire), max.35 mm²
Conductor cross-section, flexible (fine-wire), max.2 AWG
Conductor cross-section, flexible (fine-wire), min.1,5 mm²
Conductor cross-section, flexible (fine-wire), min.16 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.2 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.16 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.1,5 mm²
Connection cross-section, FM terminals, max.1,5 mm²
Connection cross-section, FM terminals, max.16 AWG
Connection cross-section, FM terminals, min.0,5 mm²
Connection cross-section, FM terminals, min.21 AWG
Dimension385V
FM contactsChangeover
Housing material surge protection componentsPA UL 94 V-0
Installation typeDIN rail 35 mm
Integrated back-up fuseno
Max. mains-side overcurrent protection160 A gL/gG
Maximum back-up fuse160 A
Maximum continuous voltage (L-N)385 V
Maximum continuous voltage AC385 V
Maximum discharge current (8/20 μs)40 kA
Maximum discharge current (8/20 μs) [L-N]40 kA
Minimum distance1,5 mm
Network formOther
Nominal discharge current (8/20 µs)20 kA
Nominal discharge current (8/20 µs) [L-N]20 kA
Nominal voltage AC (50/60 Hz)350 V
Operating temperature, max.80 °C
Operating temperature, min.-40 °C
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Pole number2
Pole version2
Protection level [L-N]≤1,7
Protection ratingIP20
Remote signallingyes
Residual voltage [L-N] @ 1 kA1,2 kV
Residual voltage [L-N] @ 5 kA1,4 kV
Response time<25 ns
Short-circuit resistance for max. mains-side overcurrent protection50 kA eff
Short-circuit resistantyes
Signalling on deviceVisual
SPD to EN 61643-11Type 2
SPD to IEC 61643-1Class II
SPD to UL 1449Type 4
Switching power AC230 V; 0,5 A
Switching power DC230 V; 0,1 A / 75 V; 0,5 A
Test class, type 2yes
TN network formyes
TN-C network formyes
Torque4 Nm
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min.670 V
TOV voltage [L-N] ‒ withstand mode ‒ 5 s510 V
