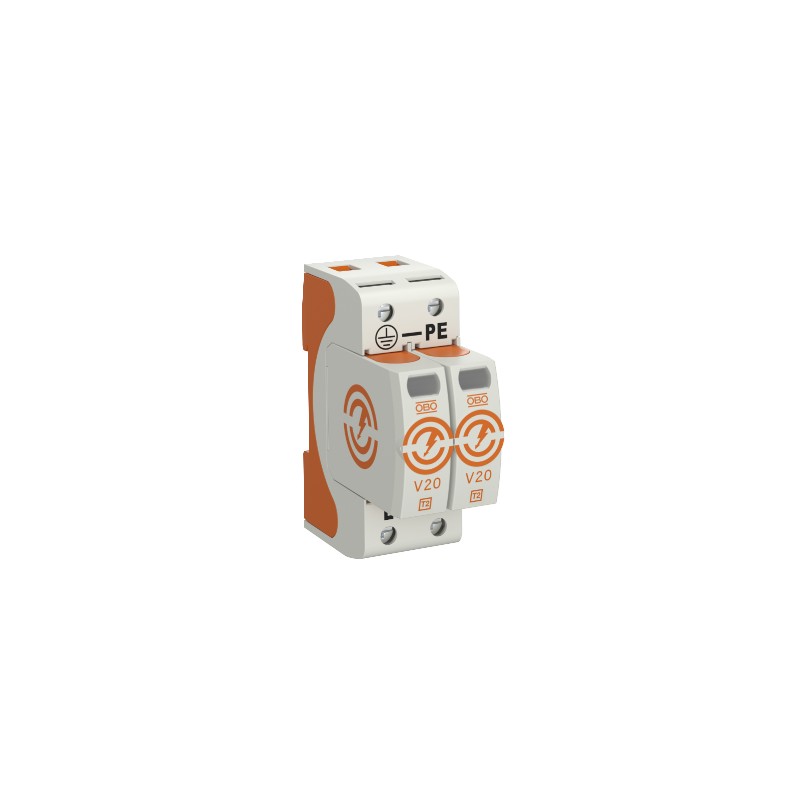

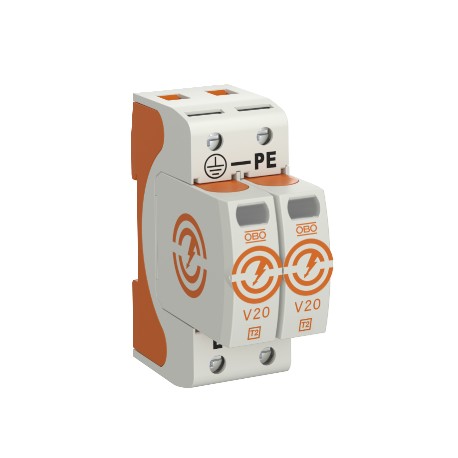

OBO BETTERMANN V20-2-75 5095142 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

V20-2-75 5095142 OBO BETTERMANN DOWNLOADER T. 2 V20-2-75

Reference: V20-2-75

Code: 5095142

Manufacturer: OBO BETTERMANN

Description:

DOWNLOADER T. 2 V20-2-75
V20 V20-2-75.2 pole 75V surge arrester,
Surge arrester V20, 2-pole, 75 V. Surge arrester, type 2• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)• Discharge capacity to 40 kA (8/20) per pole through high-performance varistors • Modular connectable arrester with cut-off unit and visual status display • Locking mechanism with vibration protection and voltage keying • Plastic to UL 94 V-0• The remote signalling variants (FS) have a potential-free changeover contact for remote signallingApplication: Equipotential bonding in main and sub-distributions.

Categories:

  • Earthing, lightning and surge protection > Surge protection device for power supply systems
  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 99,87 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ApprovalsVDE, KEMA, UL, ÖVE
Arrester surge current (8/20 µs) [total]80 kA
Blow-outno
CO2 Footprint (GWP) Cradle-to-Gate1,1356 kg CO2e / 1 Piece
Conductor cross-section, flexible (fine-wire), max.2 AWG
Conductor cross-section, flexible (fine-wire), max.35 mm²
Conductor cross-section, flexible (fine-wire), min.1,5 mm²
Conductor cross-section, flexible (fine-wire), min.16 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.2 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.1,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.16 AWG
Dimension75V
Housing material surge protection componentsPA UL 94 V-0
Humidity, max.95 %
Humidity, min.5 %
Installation typeDIN rail 35 mm
Integrated back-up fuseno
Max. mains-side overcurrent protection160 A gL/gG
Maximum back-up fuse160 A
Maximum continuous voltage (L-N)75 V
Maximum continuous voltage AC75 V
Maximum discharge current (8/20 μs)40 kA
Maximum discharge current (8/20 μs) [L-N]40 kA
Minimum distance1,5 mm
Network formOther
Nominal discharge current (8/20 µs)20 kA
Nominal discharge current (8/20 µs) [L-N]20 kA
Nominal voltage AC (50/60 Hz)60 V
Operating temperature, max.80 °C
Operating temperature, min.-40 °C
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Pole number2
Pole version2
Protection level [L-N]≤0,5
Protection ratingIP20
Remote signallingno
Residual voltage [L-N] @ 1 kA0,3 kV
Residual voltage [L-N] @ 5 kA0,4 kV
Response time<25 ns
Short-circuit resistance for max. mains-side overcurrent protection50 kA eff
Short-circuit resistantyes
Signalling on deviceVisual
SPD to EN 61643-11Type 2
SPD to IEC 61643-1Class II
SPD to UL 1449Type 4
Test class, type 2yes
TN network formyes
TN-C network formyes
Torque4 Nm
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min.115 V
TOV voltage [L-N] ‒ withstand mode ‒ 5 s90 V

ETIM for 5095142 Earthing, lightning and surge protection (EC000941)

Feature nameSystem configuration TN (EF009928)
Feature valueYes
Feature nameSystem configuration TN-C (EF009929)
Feature valueYes
Feature nameNominal discharge surge current (8/20) (EF004214)
Feature value20 kA
Feature nameMax. discharge surge current (8/20) (EF012274)
Feature value40 kA
Feature nameNominal voltage AC (EF004220)
Feature value60 V
Feature nameMax. continuous voltage AC (EF004198)
Feature value75 V
Feature nameVoltage protection level (EF003525)
Feature value0.5 kV
Feature nameVoltage protection level L-N (EF004236)
Feature value0.5 kV
Feature nameIntegrated backup fuse (EF008797)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
Feature nameConstruction size (EF002566)
Feature value2 modular spacing
Feature nameMax. conductor cross section solid (solid, stranded) (EF008827)
Feature value35 mm²
Feature nameMax. conductor cross section flexible (fine-strand) (EF008828)
Feature value35 mm²
Feature nameSignalling at the device (EF004241)
Feature valueOptic
Feature nameCategory type 2 (EF004230)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20

DATASHEET - PDF

Title
Size
Type
5095142 OBO BETTERMANN DOWNLOADER T. 2 V20-2-75
58 Kbytes
PDF CATALOGUE SURGE PROTECTION OBO EN
24 Mbytes
