OBO BETTERMANNTBS Transient and lightning protection systems - OBO BETTERMANNV50-3+NPE-385 5093586 OBO BETTERMANN ARRESTER 1+2 V50-3+NPE-385

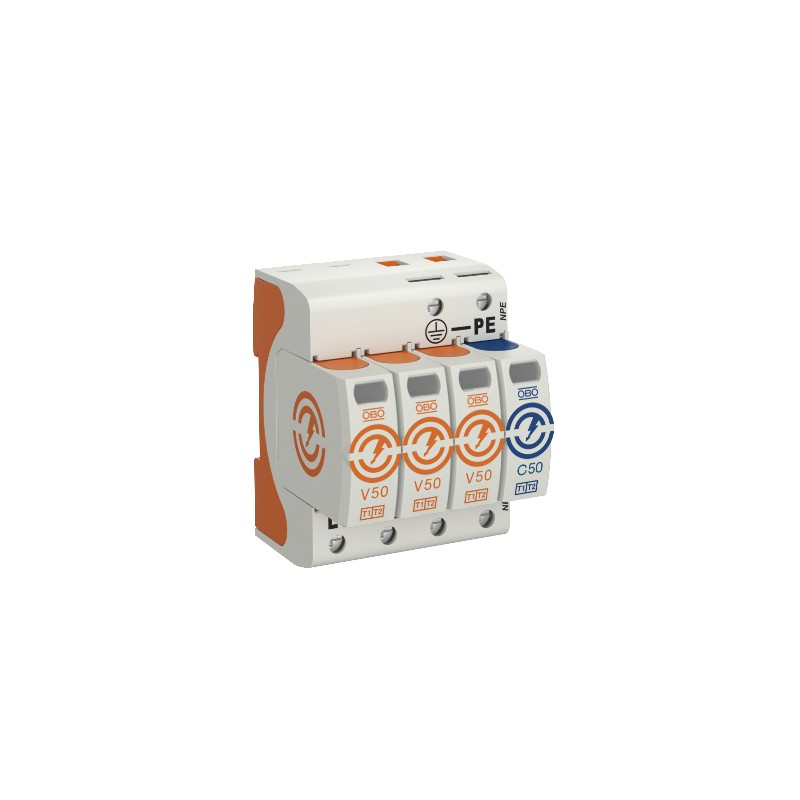

OBO BETTERMANN V50-3+NPE-385 5093586 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

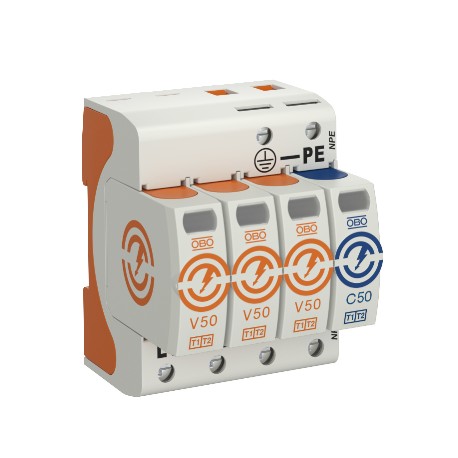

V50-3+NPE-385 5093586 OBO BETTERMANN ARRESTER 1+2 V50-3+NPE-385

Reference: V50-3+NPE-385

Code: 5093586

Manufacturer: OBO BETTERMANN

Description:

ARRESTER 1+2 V50-3+NPE-385
V50 V50-3+NPE-385.3 pole combined discharger with NPE 385V Polyamide, PA,

Categories:

  • Earthing, lightning and surge protection > Combined arrester for power supply systems
  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 345,30 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Lightning current combination arrestor, type 2

• For the equipotential bonding of lightning current to VDE 0185-305 (IEC 62305)
• Lightning current discharge capacity of 12.5 kA (10/350) per pole and up to 50 kA (10/350) in total
• Modular, plug-in arrestor with dynamic cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Halogen-free plastic (UL 94 V-0)
• The remote signalling (FS) variants have a potential-free changeover contact for remote signalling

Application: Lightning current equipotential bonding for buildings of class III and IV.

ETIM for 5093586 Earthing, lightning and surge protection (EC001457)

Feature nameSystem configuration TN (EF009928)
Feature valueYes
Feature nameSystem configuration TN-C (EF009929)
Feature valueNo
Feature nameSystem configuration TN-C-S (EF009933)
Feature valueYes
Feature nameSystem configuration TN-S (EF009930)
Feature valueYes
Feature nameSystem configuration TT (EF009931)
Feature valueYes
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameLightning impulse current (10/350 µs) (EF000421)
Feature value12.5 kA
Feature nameMax. continuous voltage AC (EF004198)
Feature value385 V
Feature nameNominal voltage AC (EF004220)
Feature value230 V
Feature nameVoltage protection level (EF003525)
Feature value1.7 kV
Feature nameVoltage protection level L-N (EF004236)
Feature value1.7 kV
Feature nameFollow current extinguishing capability (EF004193)
Feature value0.1 kA
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
Feature nameConstruction size (EF002566)
Feature value4 modular spacing
Feature nameMax. conductor cross section solid (solid, stranded) (EF008827)
Feature value35 mm²
Feature nameMax. conductor cross section flexible (fine-strand) (EF008828)
Feature value35 mm²
Feature nameSignalling at the device (EF004241)
Feature valueOptic
Feature nameIntegrated backup fuse (EF008797)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20

DATASHEET - PDF

Title
Size
Type
5093586 OBO BETTERMANN ARRESTER 1+2 V50-3+NPE-385
67 Kbytes
PDF CATALOGUE SURGE PROTECTION OBO EN
24 Mbytes
