Images are for illustrative purposes only. Please refer to data sheet for details.

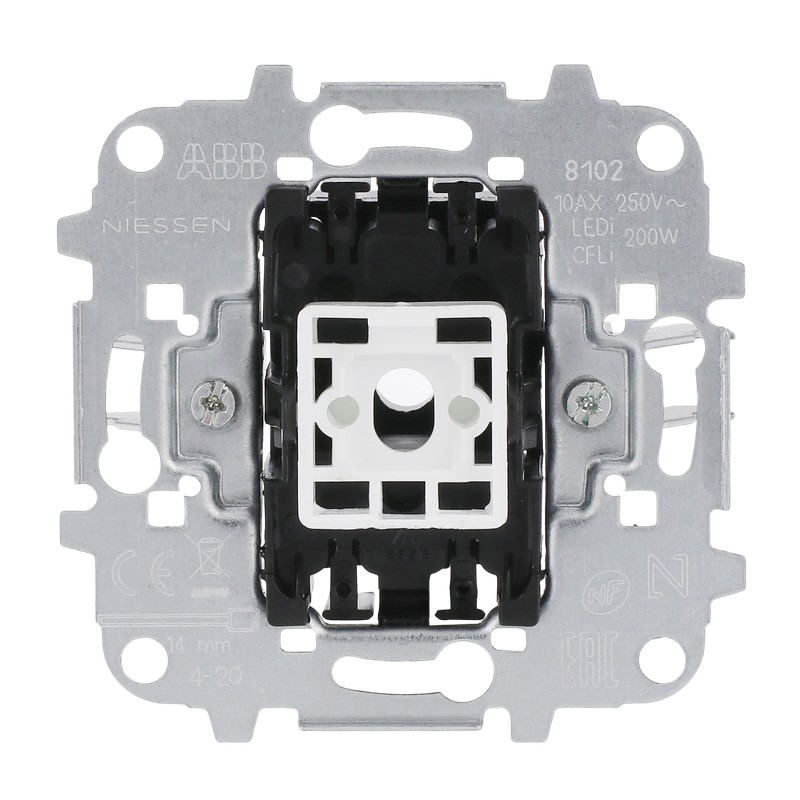

2CLA810280A1001 8102.8 NIESSEN CONMUTADOR C/GARRAS
Reference: 2CLA810280A1001
Code: 8102.8
Manufacturer: NIESSEN
Description:
CONMUTADOR C/GARRAS
Claw switch
Insert Two-way switch for 1 rocker, LED exchangeable/ 10 A
Categories:
- Domestic switching devices > Installation switch
- NIESSEN > Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
- More Info
- Reviews
MORE INFO
| Installation | |
|---|---|
| Instructions and Manuals | 2CLX810109A1001 |
| Mounting Type | Flush Mounted |
| Type of Fastening | Screw |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP21 |
| Technical | |
| Data Sheet, Technical Information | 9AKK107046A0356 |
| Function | Function lighting: Control and orientation |
| Number of Rocker Switches | 1 |
| Wiring Configuration | Two-way switch |
| Actuator Type | Rocker/button |
| Connection Type | Plug Clamp |
| Lamp Type | LED exchangeable |
| Illumination | Optional |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 250 V |
| Rated Current (In) | 10 A |
| Maximum Switching Current | Fluorescent Lamps 10 |
| Design | |
| Design Range | Platform 8100 |
| Alba | |
| Sky Niessen | |
| Alter Vega | |
| Vega | |
| Vega Waterproof | |
| Arco | |
| Material | Plastic |
| Label Space Provided | Without Label Space |
| Dimensions | |
| Product Net Width | 0.015 m |
| Product Net Height | 0.078 m |
| Product Net Depth / Length | 0.022 m |
| Product Net Weight | 0.058 kg |
| Built-In Depth (t2) | 25 mm |
| ABB EcoSolutions | |
| ABB EcoSolutions | Yes |
| Circular Value | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59 % |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard - 92 % |
| Extended Product Lifetime | Product Durability |
| Product Modularity | |
| Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services | |
| Offered with Takeback Services | Take Back for Recycling |
| Environmental Product Declaration - EPD | 9AKK108468A8668 |
| Material Compliance | |
| RoHS Declaration | 2CLC810280A1001 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | No data - If REACH inform is not yet available for a certain product |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A1744 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC001590 - Installation switch |
| ETIM 10 | EC001590 - Installation switch |
| UNSPSC | 39122226 |
| IDEA Granular Category Code (IGCC) | 5200 >> Toggle switch |
| Object Classification Code | B |
DATASHEET - PDF
Title
Size
Type
