Product:MTZ18-4VM DANFOSS REFRIGERATION Reciproc...

Images are for illustrative purposes only. Please refer to data sheet for details.

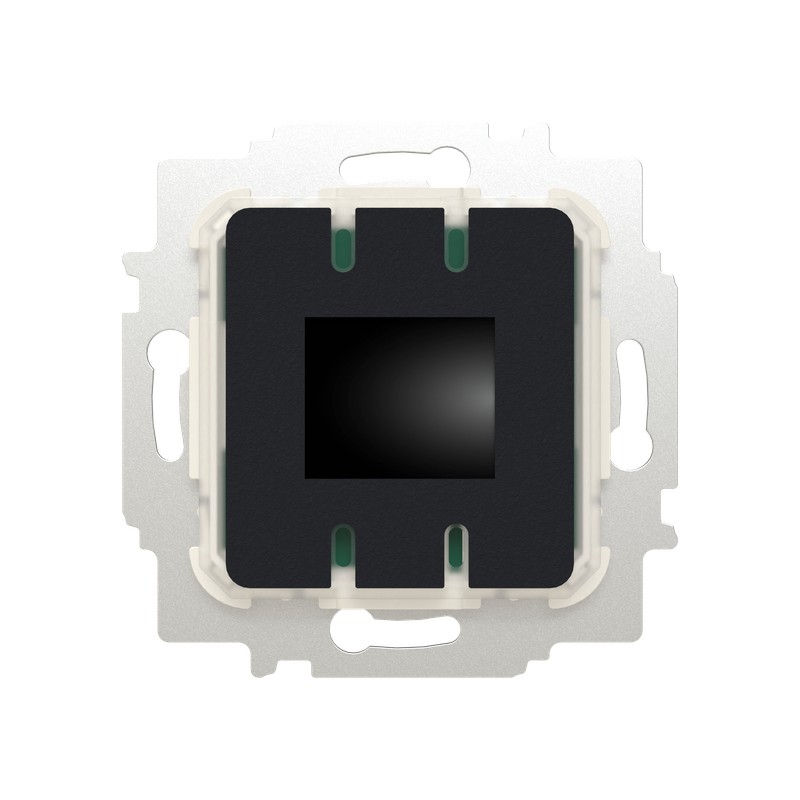

Reference: 2CKA006800A3115
Code: 62841 U-WL-500
Manufacturer: NIESSEN
Description:
Categories:
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
LAST VIEWED
| Installation | |
|---|---|
| Instructions and Manuals | 2CKA009973B5776 |
| Mounting Type | Flush Mounted |
| Modular Components Included | Flush Mounted Insert with Control Element |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Function | With Display |
| Temperature display ACTUAL value | |
| Temperature display SET value | |
| Time-controlled | |
| Heating and Cooling | |
| Measuring Range | 5 ... 30 °C |
| Number of Outputs | 1 |
| Number of Inputs | 1 |
| Compatible Bus Systems | free@home wireless |
| Operating Mode | Touch Sensor Button |
| Product Range | flexTronics Wireless |
| free@home Wireless | |
| free@home | |
| Transmission Standard | Wireless |
| Bluetooth | |
| Connection Type | Wireless |
| Contact Type | Normally Open (NO) |
| Options Provided | Setpoint display, Timer and Remote control |
| Weekly program | |
| Daily program | |
| Switching heating/cooling | |
| Nightly reduction | |
| Astro program | |
| Manual Operation | Yes |
| Terminal Type | Screw Terminals |
| Electrical | |
| Rated Voltage (Ur) | 230 V AC |
| Output Voltage (Uout) | 230 V AC |
| Rated Current (In) | 16 A |
| Rated Frequency (f) | 50 Hz |
| Design | |
| Design Range | Platform 63 |
| Busch-Duro 2000 SI | |
| Reflex SI | |
| Busch-art linear | |
| future linear | |
| Busch-axcent | |
| solo | |
| Pure Stainless Steel | |
| carat | |
| Busch-Dynasty | |
| Basic55 | |
| Saga | |
| Design Range Variant | Busch-Duro 2000 SI |
| Busch-Duro 2000 SI Linear | |
| Reflex SI | |
| Reflex SI Linear | |
| Busch-art linear | |
| Busch-art linear - with Decor Ring | |
| Busch-art linear - pur | |
| future | |
| future linear | |
| Busch-axcent | |
| Busch-axcent pur | |
| Material | Thermoplastic |
| Dimensions | |
| Product Net Width | 71 mm |
| Product Net Height | 39 mm |
| Product Net Depth / Length | 71 mm |
| Product Net Weight | 99 g |
| Built-In Depth (t2) | 29.9 mm |
| Ordering | |
| E-Number (Finland) | 2815936 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E9094 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250218 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E5415 |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| EU Data Act Compliance Declaration | 9AKK108471A4355 |
| External Classifications and Standards | |
| ETIM 9 | EC001101 - Room temperature controller for bus system |
| ETIM 10 | EC001101 - Room temperature controller for bus system |
| eClass | V11.0 : 27143133 |
