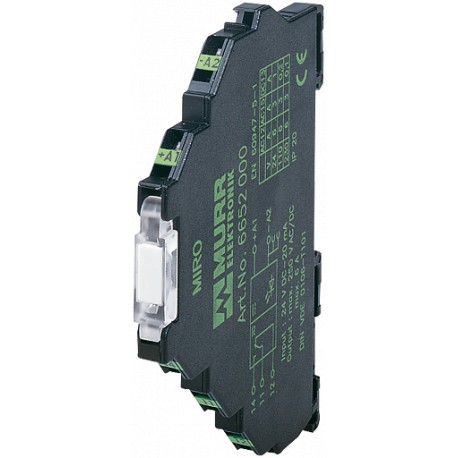

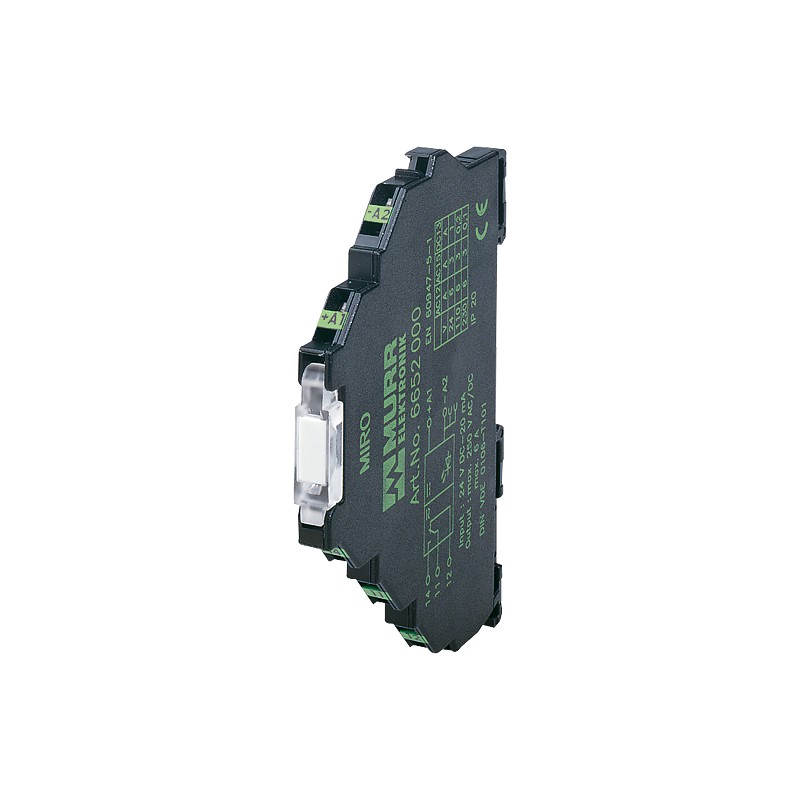

MURRELEKTRONIK 526063 526063 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

526063 MURRELEKTRONIK INTERFACE TERMINAL RELAY

Reference: 526063

Manufacturer: MURRELEKTRONIK

Description:

INTERFACE TERMINAL RELAY
INTERFACE TERMINAL RELAYIN: 24 VDC - OUT: 24VDC / 0.2 A / 20 kHz

Categories:

  • MURRELEKTRONIK > Relays, converters, switches

Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 52,36 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-4 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Transistor 0.2 A
24 V DC
Control current 2.8 mA (24 V DC)
Spring clamp terminals
General data
Test isolation voltage3.75 kV
Dimensions H×W×D91×6.2×70 mm
Mounting methodDIN-rail mountable (EN 60715)
HousingBlack plastic, flame retardant
Temperature range-20...+60 °C (storage temperature -40...+80 °C)
Output
Switching voltage5...48 V DC
Switching current per output0.1 mA...0.2 A
Saturation voltage (across output)max. 1.2 V DC
Leakage current (output is open)max. 0.1 mA
Switching time ON/OFF14/20 µs
Switching frequencymax. 20 kHz
Input
Voltage range ON16...30 V DC
Voltage range OFF0...5 V DC
Control current2.8 mA (24 V DC)
LED displayLED (yellow)
Commercial data
country of originCZ
customs tariff number85414090
EAN4048879024549
eClass27371604
Packaging unit1
