MICRO DETECTORSEncodersCV12/0B-00A MICRO DETECTORS Connector plugwith terminals M12 4 poles male Axial

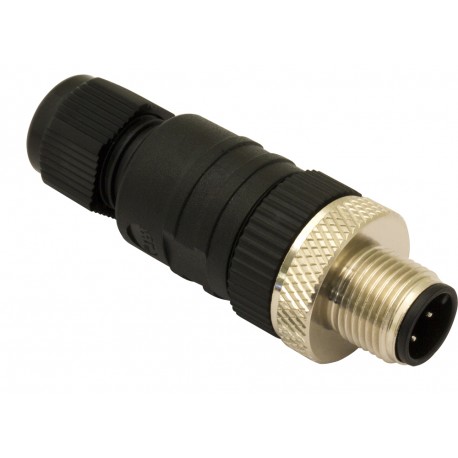

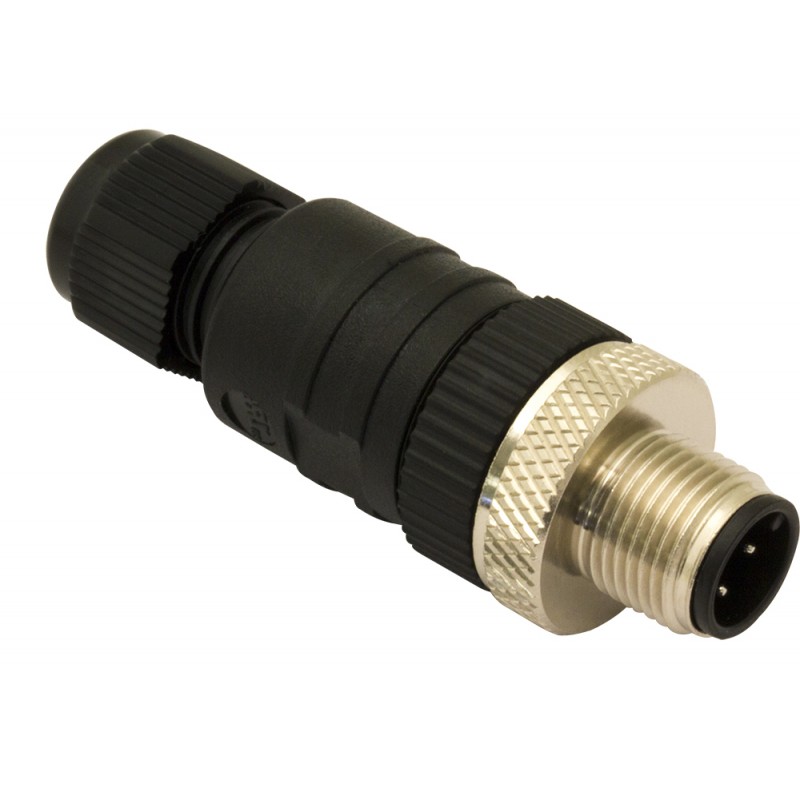

MICRO DETECTORS CV12/0B-00A CV12/0B-00A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CV12/0B-00A MICRO DETECTORS Connector plugwith terminals M12 4 poles male Axial

Reference: CV12/0B-00A

Manufacturer: MICRO DETECTORS

Description:

Connector plugwith terminals M12 4 poles male Axial
CV12/0B-00A Connector Conn.with terminals M12 4 poles male Axial

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 18,68 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical features

Application

Fixingscrew terminals

Electrical data

Rated current4 A
Wires4
Insulation resistance≥ 100 MΩ
Contact resistance≤ 5 mΩ
Rated voltage250 V

Mechanical data

Operating temperature-25 °C ... 90 °C
PlugM12
Outer diameter3 mm ... 6,5 mm
Head typeAxial
Stripping lenght of the sheath20 mm
Conductors sectionMax. 0,75 mm²
ModelMale

Test/Approvals

Degree of protectionIP67

Dimension (mm)



DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE MICRODETECTORS EN
79 Mbytes
