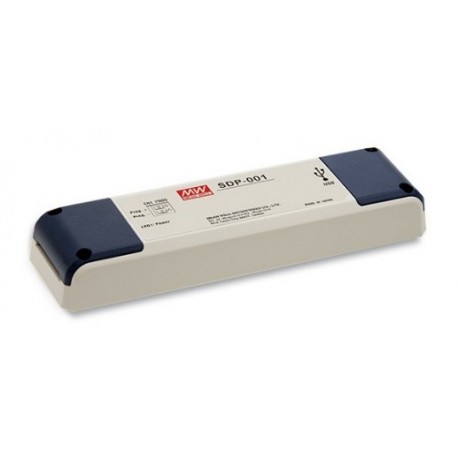

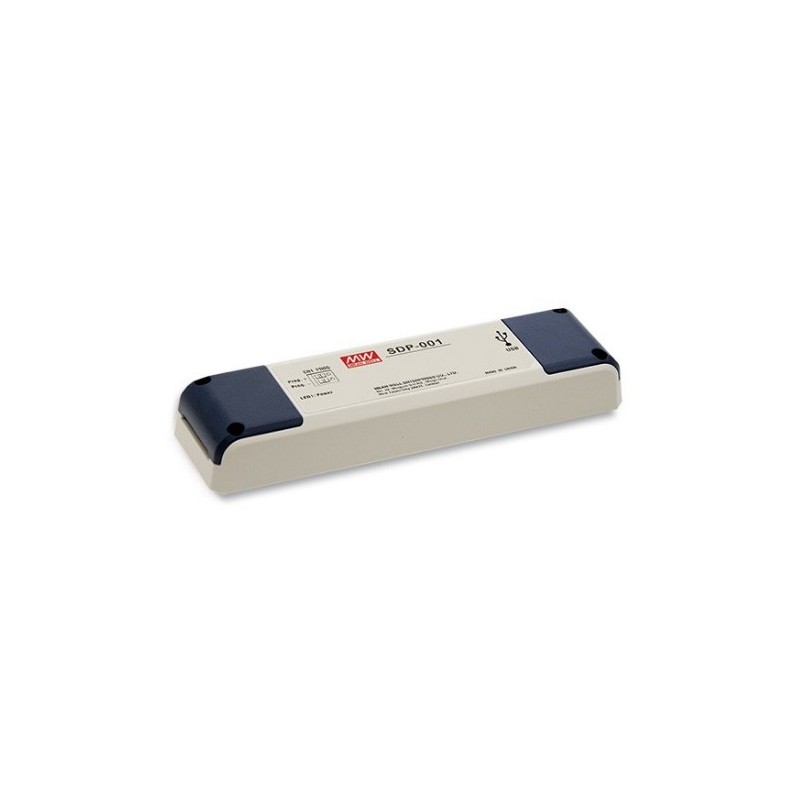

SDP-001 MEANWELL Smart Timer Dimming Programmer for versions D2 of ELG, USB port

Programmer for LED drivers and intelligent series ELG-D2 and NPF-D2.

Format in plastic boxIP20.

Power5vdc from the USB connector of the PC.

Allows you to program all functions of the LED drivers intelligent with the function "Smart Timer Dimming function" of the series ELG-D2 and NPF-D2.

Dimensions (Length x Width x Height):165 x 46 x 23mm.

5 years of warranty.

Manufacturer: MEAN WELL.

The LED drivers of the seriee ELG-D2 and NPF-D2 allow you to program the following functions:

• Maximum output current(AOC). So we can turn a driver, for example 500mA in one of 450mA setting the maximum output current to 90% without the need for any manual adjustment.

• Intensity of the constant light(CLO). We can start initially with a maximum intensity of lower output and go compensating the output current according to the hours of operation to compensate for the losses that have the LEDs with the hours of use. For example if we want to always maintain a level of illuminance on a surface of 500 Lux, and our luminaire can initially provide 600 Lux but at 5 years we estimate a loss of 10% we can adjust the source to start giving only 80% of the maximum output current and providing 100% of the intensity to 5 years to compensate for the losses that you will suffer from the led.


• Dynamic programming night. You can adjust the curves of output according to the hours of operation for the hours of least traffic will automatically reduce the output intensity. This can be done with a set schedule on hours of operation, or dynamic based on the hours of operation proportionately, or to the point of the middle of the night. For more information refer to the operating manual.


• Adjustment of thetimes of transitionbetween the different levels to achieve a transition in intensity levels that avoid glare or unwanted effects. We can schedule the time of transition between all levels.


• We can also configure the function ofoverrideto be able to abort in a timely manner dynamic programming and maintain a night 100% brightness.


• The software also allows us to verify thehours of operationthe LED driver as well as led module.

Note: in order to perform programming, you will need to have installed the software on a PC, having powered the LED Driver and connected to a minimum load of 10%.
