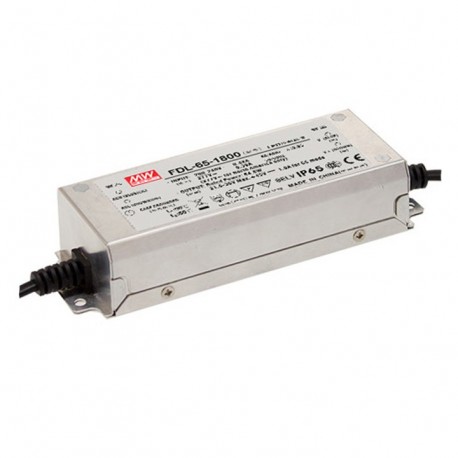

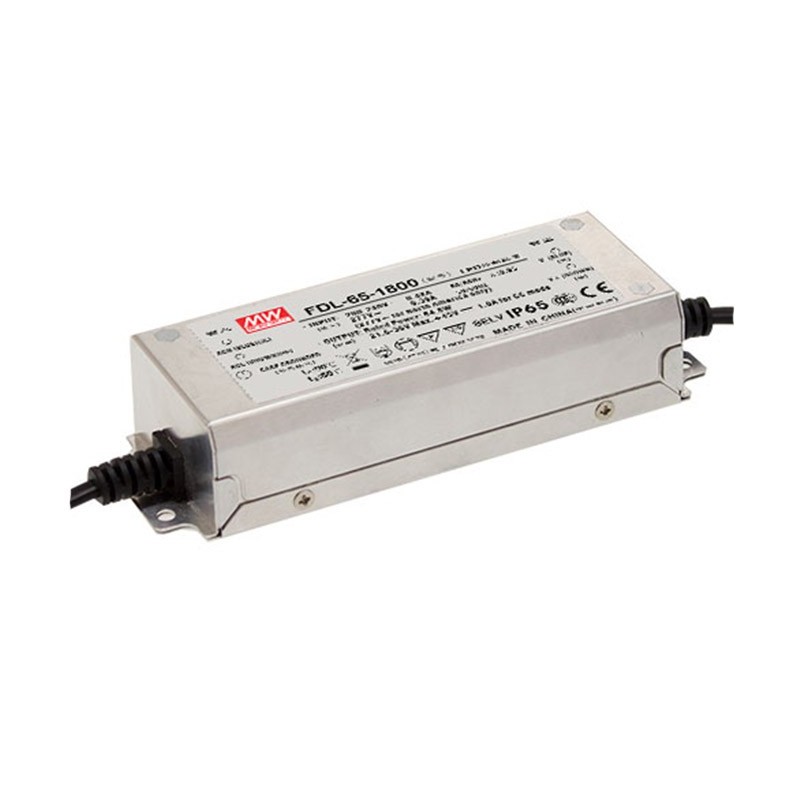

FDL-65-1800 MEANWELL AC-DC Constant current LED driver with Active PFC, Output 36VDC / 1.8A
Reference: FDL-65-1800
Manufacturer: MEANWELL
Description:
AC-DC Constant current LED driver with Active PFC, Output 36VDC / 1.8A
Categories:
- MEANWELL > LED DRIVERS
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
- These delivery times are an estimate any may vary when the item order has been processed.
MORE INFO
| Name | FDL-65-1800 |
|---|---|
| Long Description | LED driver. Specially designed for powering LEDs directly in a steady stream. Format in metal boxIP65. Input range180-295Vca47-63Hz. Output in constant current1800mA. Range of output voltage with current mode constant21.6 to 36Vccaccording to demand load. Power:64,8 W. Efficiency typical:90%. Input class II without grounding. Factor corrector, power>0.95to 230vac at full load. Consumption without load <0.5 W. Operating temperature range of caseTcfrom-40ºCup+90ºC. Dimensions (Length x Width x Height):151 x 53 x 31.5 mm 3 years of warranty. Manufacturer: MEAN WELL. This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. With metal housing IP65. The series FDL is intended for applications of decorative lighting, architectural lights and submersible. Appropriate for both interior and outside. Are drivers of class II non-grounded. |
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Format | Box |
| Subformato | IP65 |
| Applications | Lighting |
| Series | FDL-65 |
| State | New |
| Warranty (Years) | 3,00 |
| Height (mm) | 31.5 |
| Width (mm) | Fifty three |
| Long/Background | One hundred fifty one |
| Type of Entry CA | Single-phase |
| AC input Min | 180,00 |
| AC input Max | 295,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Cable |
| Intensity of Minimum Output (mA) | 1.800,00 |
| Intensity of Output Maximum (mA) | 1.800,00 |
| Output current mA | One thousand eight hundred |
| Power (W) | 64,80 |
| Peak Power (W) | 64.8 |
| Output connector | Cable |
| Isolation (V) | 3.750,00 |
| Approvals | CCC, CE |
