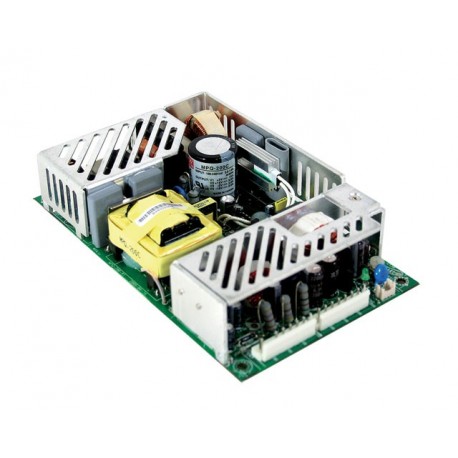

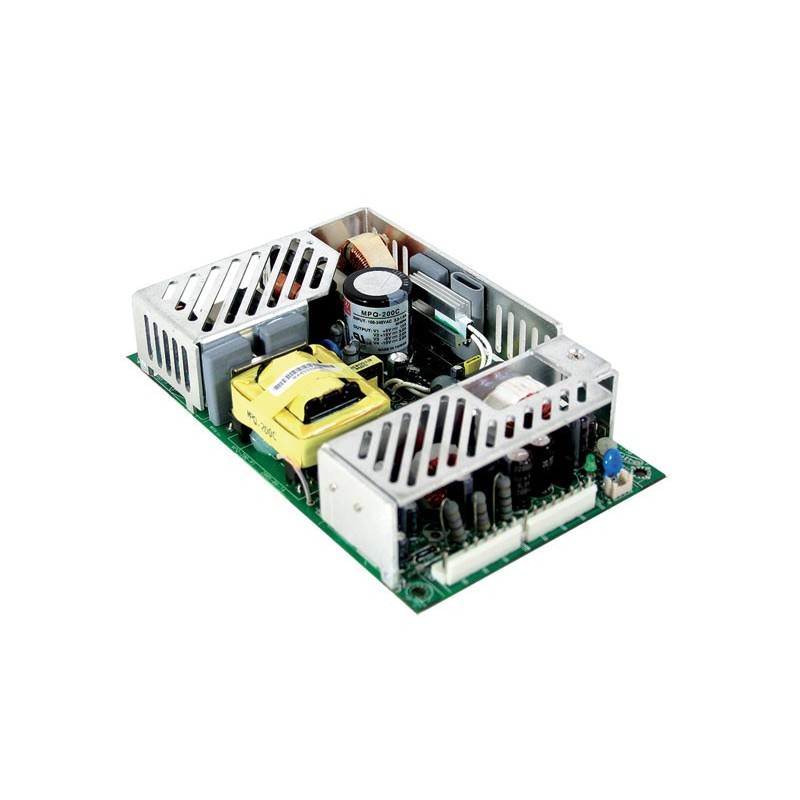

MPQ-200C MEANWELL AC-DC Quad output Medical Open frame power supply, Output 5VDC / 18A +15VDC / 6A -5VDC / 2..

Medical power supply in open format(open-frame).

Source certified for medical applications 2x MOPP (patient protection).

Range of universal input90-264vac.47-440Hz.

Outputs:

-15vdc:

• • • Minimum intensity of output1A.
    • Maximum output currentTwoAmps.

-5vdc:

• • • Minimum intensity of output1A.
    • Maximum output currentTwoAmps.

+5vdc:

• • • Minimum intensity of output12A.
    • Maximum output currentFifteenAmps.

+15vdc:

• • • Minimum intensity of output4A.
    • Maximum output currentFiveAmps.

Power:140W.and with fan200W.

Efficiency typical:78%.

Factor Corrector, Power>0,95to 230vac and full load.

Alarm output voltage correct (DC-Ok) and network failure (Power fail).

Function of sensing to compensate the voltage drop in the cables.

Low leakage current to ground < 180µA at 264vac.

Working temperature: from-20up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height) [mm]:177 x 107,2 x 35.5.

3 years of warranty.

Manufacturer: MEAN WELL.

The series MPQ-200 are power supply of low-cost, certified for medical use with patient protection, 2 x MOPP (means of patient protection). They have a double protection between input and output 2xMOPP and protection between input and ground 1xMOPP.

Have a leakage current (contact current) is very low for a greater security in the application.

These sources can be used for medical applications BF (body floating) with the necessary considerations of the system and for industrial applications, and information technology.

Its compact size of 7" x 4.2" make it suitable for applications with space limitations.
