MEANWELLPFCRSPRSP-320-5 MEANWELL AC-DC Single Output Enclosed power supply, Output 5VDC Single Output / 60A, PFC, forced a..

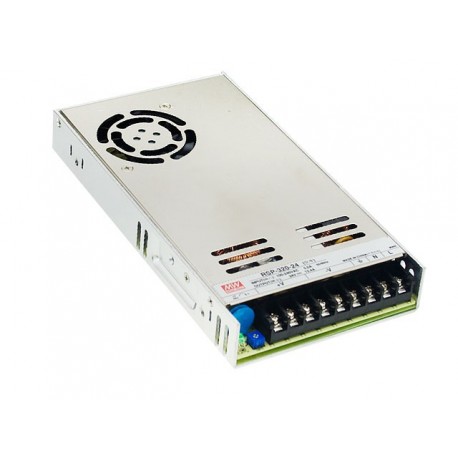

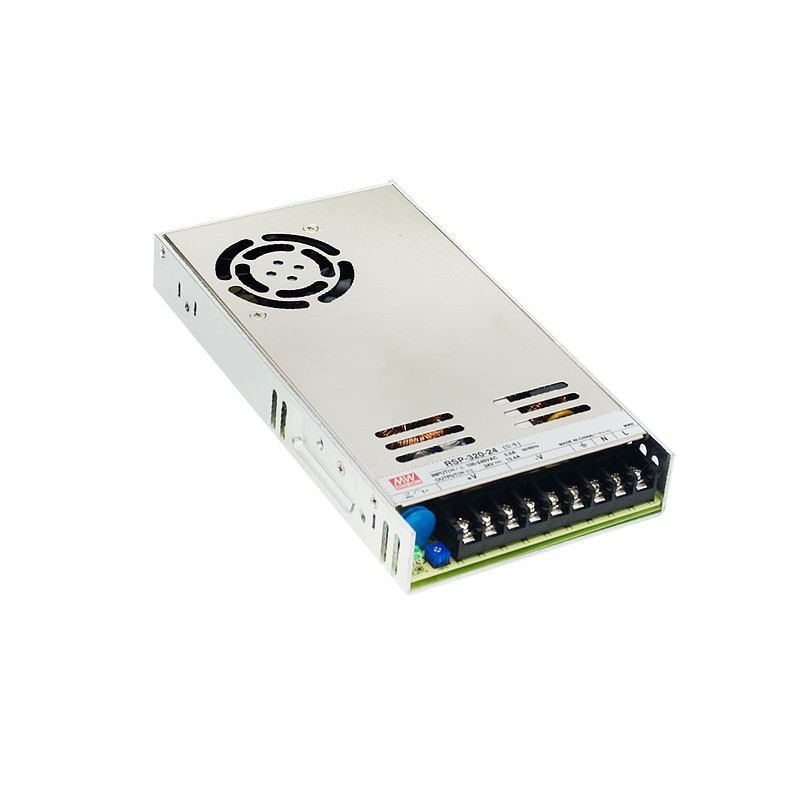

MEANWELL RSP-320-5 RSP-320-5 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

RSP-320-5 MEANWELL AC-DC Single Output Enclosed power supply, Output 5VDC Single Output / 60A, PFC, forced a..

Reference: RSP-320-5

Manufacturer: MEANWELL

Description:

AC-DC Single Output Enclosed power supply, Output 5VDC Single Output / 60A, PFC, forced air cooling, 1U low profile

Categories:

  • MEANWELL > PFC > RSP

Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 54,83 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1-2 Days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

NameRSP-320-5
Long Description

Switch mode power supply.

Format in case of grid.

Range of universal Input88-264vac47-63Hz.

Output voltage5vdc. Adjustable by potentiometer (4,5-5,5 Vdc).

Output intensity60A. Range of output current 0-60A according to demand load.

Factor Corrector, Power>0,95.

Power:300W.

Efficiency typical:83%.

Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height) [mm]:215 x 115 x 30.

3 years of warranty.

Manufacturer: MEAN WELL.

The series RSP are sources switched low profile (30mm or 1U) with correction factor power active. Include possibility of performing a power on/off remote and a LED power indicator.

Country of OriginChina
StockYes
ManufacturerMEAN WELL
Product typePower supply AC/DC
FormatBox
ApplicationsIndustrial, Telecommunications
SeriesRSP-320
StateRecommended Model
Warranty (Years)3,00
Height (mm)30.00
Width (mm)115.00
Long/Background215.00
Type of Entry CASingle-phase
AC input Min88,00
AC input Max264,00
Input frequency50 Hz, 60 Hz
Input connectorScrew-Type
Output voltage5,00
Power (W)300,00
Peak Power (W)Three hundred
Output connectorScrew-Type
FanYes
Isolation (V)3.000,00
ApprovalsCCC, CE, UL
