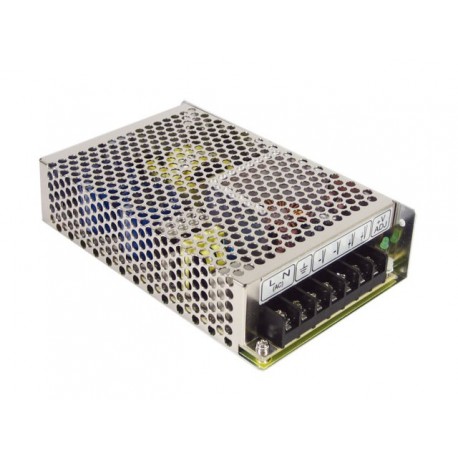

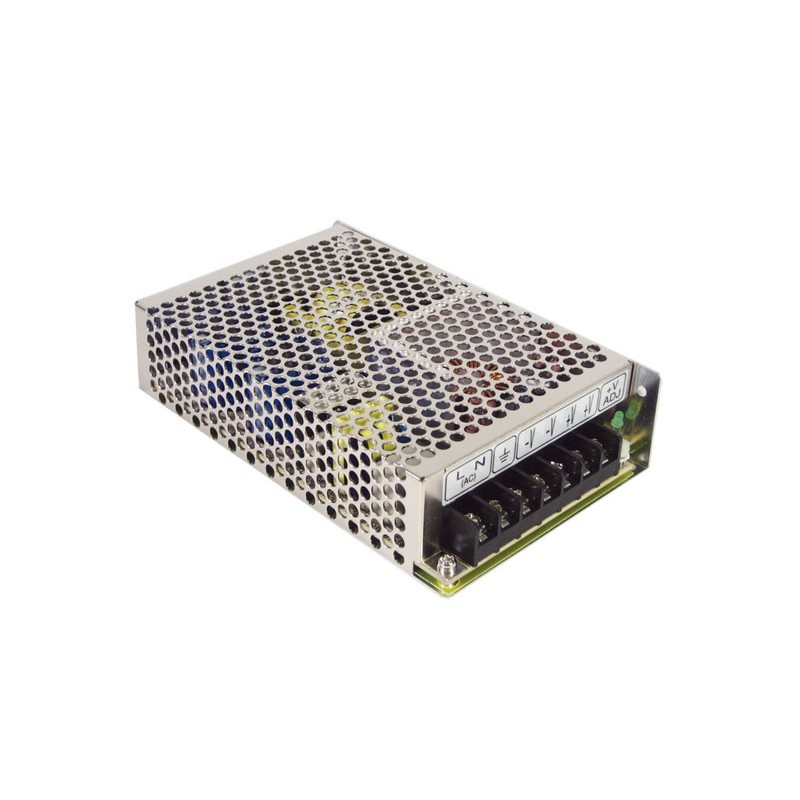

RQ-85B MEANWELL AC-DC Quad output enclosed power supply, Output 5VDC / 10A +12VDC / 4A -5VDC / 1A -12VDC / 1A

Switching power supply with 4 outputs.

Format in case of grid.

Range universal input full88-264vac47-63Hz.

Outputs:

-12vdc:

• • • Minimum intensity of output0A.
    • Maximum output currentOneAmp.

-5vdc:

• • • Minimum intensity of output0A.
    • Maximum output currentOneAmp.

+5vdc:

• • • Minimum intensity of output2A.
    • Maximum output currentTenAmps.

+12vdc:

• • • Minimum intensity of output0.3 To.
    • Maximum output currentFourAmps.

Power:80,7 W.

Efficiency typical:76%.

Working temperature: from-25up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height):159 x 97 x 38mm.

3 years of warranty.

Manufacturer: MEAN WELL.

Series RQ-85 these are sources of power for industrial applications or information technology in a compact size and high reliability by using electrolytic capacitors of 105ºC. Can withstand input voltages of 300Vca for 5 seconds.

These sources need to have always the minimum load shown for each output. If we don't have that minimum load, the output will be unstable or the source may not come to light. You can connect a load resistance to ensure that you always have the minimum load.

Check that all the outputs do not exceed the maximum output of the power supply.
