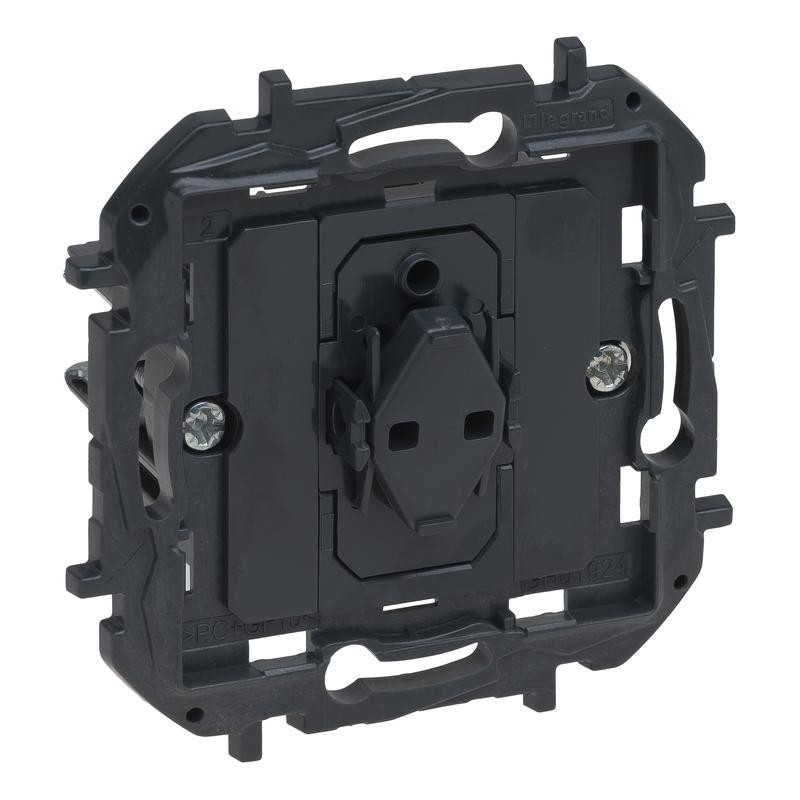

864030B LEGRAND NS-PULS DOUBLE PERS 6A
Code: 864030B
Manufacturer: LEGRAND
Description:
NS-PULS DOUBLE PERS 6A
Niloé Step shutter push button - 2 positions - 250V~
Categories:
- LEGRAND
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
- More Info
- Reviews
LAST VIEWED
MORE INFO
Shutter push button 6 A- 250 V~ - 2 positions: raise/lower -To equip with key and decorative finishing plate - Recessed or surface mounting - fixing with screws or claws (included with the mechanism) - Supplied with plastic protector for protection during installation.
| Type of mounting | Others , Recessed mounted (plaster) |
|---|---|
| Model | 1-pole push button |
| Number of poles | 1 |
| Type of operation | Seesaw |
| Mechanically Driven | Yes |
| Electronically operated | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Attachment Type | Hook and screw mounting |
| Connection Method | Screw-on terminal |
| Transparent | No |
| Label Space/Print Area | No |
| Suitable for protection grade (IP) | IP20 |
| Nominal current | 6 A |
| Nominal Voltage | 250 V |
| Number of buttons | 1 |
| Number of modules (in case of modular design) | 1 |
|---|---|
| Device width | 75.8 mm |
| Device height | 75.8 mm |
| Device Depth | 40.2 mm |
| Mounting Diameter | 58 mm |
| Installation Depth | 30 mm |
| Min. depth of the recessed box | 31 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Impact resistance | IK04 |
| Operating Temperature (Min-Max) | -5-40 °C |
| Storage Temperature (Min-Max) | -10-70 °C |
| Antibacterial treatment | No |
| Core Cross Section (Min-Max) | 1.5-1.5 mm² |
