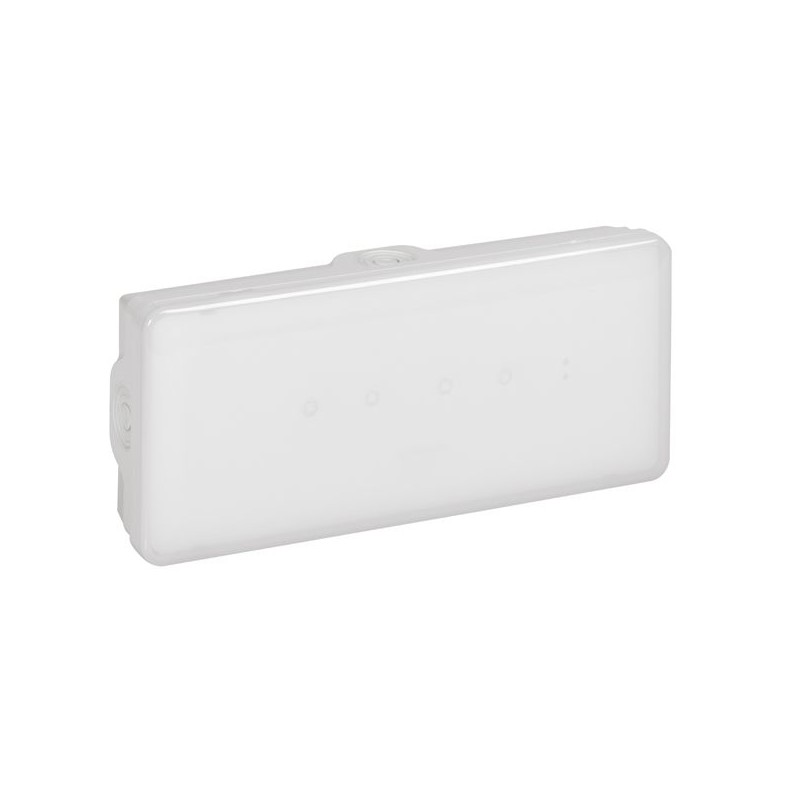

LEGRAND 662434 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

662434 LEGRAND B65LED LVS2 350LM 1H IP65 P/NP

Code: 662434

Manufacturer: LEGRAND

Description:

B65LED LVS2 350LM 1H IP65 P/NP
Emergency luminaire B65 - autotest/address maint./non maint. - 350 lm - 1h - LED
B65LED L. VS2 emergency luminaire - 350 lumens - 1h - IP65 - P/NP

Categories:

  • Luminaires > Emergency luminaire
  • LEGRAND > WATERTIGHT EMERGENCIES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 171,93 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)2.387
  • Weight (g)758.00
Product characteristics
Autotest and addressable luminaires - Maintained/Non-maintained (M/NM)
  • Autotest/addressable luminaires incorporate an automatic self-testing system in order to check emergency lighting
  • Tests result is visible on 2 signalling LEDs (green-OK and yellow-defective)
  • Addressable function is activated by setting an ID on each luminaire with configuration tool (Cat.No 0 626 10) and wiring a complementary BUS line
  • Operating state of all addressable luminaires can be centralized by the control interface (Cat.No 0 626 00) and monitored on a local touch screen controller (Cat.No 0 626 01), or with the building’s plan on Legrand Vision System (LVS2) PC software Cat.No 0 626 02
  • These Maintained luminaires can also operate in Non-maintained mode according to the wiring of normal lighting
  • 350 lm - 1h (LEDs)
General characteristics
B65 LED - weatherproof self-contained emergency lighting luminaire LED
  • Weatherproof LED maintained and non-maintained units
  • Certified to IEC and EN 60598-2-22 standards
  • High power LEDs. IP 65 - IK 07
  • Plug-in base to ease fixing, cabling and connection
  • Duration: 1 and 3 hours. Ni-Cd or Ni-MH batteries. Recharge time: 24 hours
  • Charge monitor with a green LED. Power supply: 230 V ± 10%- 50/60 Hz. Class II
  • High-capacity screw terminals (2 x 2.5mm²)
  • 3 flexible cable entries for Ø16, 20 and 25 mm tubes
  • Can be equipped with metallic protection grids Cat.Nos 0 626 90/92

ETIM for 662434 Luminaires (EC001957)

Feature nameConductor cross section (EF000085)
Feature value2.5 mm²
Feature nameWith remote control (EF000483)
Feature valueNo
Feature nameLuminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420)
Feature valueNo
Feature nameLamp type (EF002423)
Feature valueLED non-replaceable
Feature nameMounting method (EF000003)
Feature valueWall surface mounted
Feature nameConnection type (EF000124)
Feature valueScrew connection
Feature nameMaterial cover (EF004284)
Feature valuePlastic opal
Feature nameWith remote switch connection (EF007947)
Feature valueNo
Feature nameMax. system power (EF009347)
Feature value35 W
Feature nameColour temperature (EF009346)
Feature value5700 K
Feature nameRated luminous flux according to IEC 62722-2-1 (EF009349)
Feature value350 lm
Feature nameNumber of lighting heads (EF004258)
Feature value1
Feature nameNominal current (EF009345)
Feature value150 mA
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameMonitoring equipment (EF008091)
Feature valueAutomatic self test
Feature nameProtection class according to IEC 61140 (EF000004)
Feature valueII
Feature nameLamp holder (EF000048)
Feature valueOther
Feature nameHeight/depth (EF001456)
Feature value59.7 mm
Feature nameWith pictogram (EF011099)
Feature valueNo
Feature nameWidth (EF000008)
Feature value120 mm
Feature nameType of control gear (EF000381)
Feature valueLED driver constant current
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP65
Feature nameLuminous flux in standby mode (EF011954)
Feature value100 lm
Feature nameSuitable for labelling type (EF001277)
Feature valueSticker
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameType of indicator (EF001278)
Feature valueSingle-sided
Feature nameNumber of poles (EF001391)
Feature value5
Feature nameHousing colour (EF000136)
Feature valueGrey
Feature nameLight distributor (EF012170)
Feature valueDiffuser
Feature nameWith light source (EF005905)
Feature valueYes
Feature nameFunction (EF000030)
Feature valueEscape route lighting/signage
Feature nameNominal voltage (EF005127)
Feature value230 V
Feature namePower supply system (EF000233)
Feature valuePeripheral (individual battery)
Feature nameBattery technology (EF004351)
Feature valueNiMH
Feature nameNominal operation time (EF012518)
Feature value1 h
Feature nameRated life time L70/B50 at 25 °C (EF011870)
Feature value209000 h
Feature nameLength (EF001438)
Feature value280 mm
Feature nameSuitable for continuous circuit (EF017056)
Feature valueYes
